Suitable as installation cable for signal transmission for static systems on and under plaster in dry and wet rooms and for outdoor use. Due to the static screen, electrical signals can be prevented.

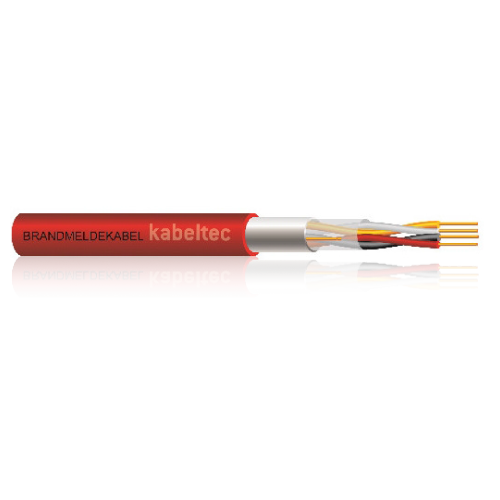

I-Y(ST)Y Fire Alarm Cable
Fire alarm cable arccording to VDE 0815
CONSTRUCTION:
- PVC insulated cores
- Cores twisted in pairs, static screen of Aluminum laminated plastic foil with copper drain wire over the cable core
- Single wire conductor of plain copper
- Core marking:
2-paired: 1 pair: a-cond. red, b-cond. black; 2 pair: a-cond. white, b-cond. Yellow
4-paired: 1 pair: a-cond. every layers red, every other pairs white; b-cond. blue, yellow, green, brown, black in continuous repetition
- Red PVC outer sheath with printing »Brandmeldekabel«
- Bending radius: 15 x Ø
Technical Data:
| Conductor Material | Copper, bare |
| Conductor class | Class 1 = single wire |
| Core insulation | PVC |
| Core identification | * |
| Stranding |
Cores twisted in pairs, static screen of aluminum laminated plastic foil with copper drain wire over the cable core
|
| Outer sheath | PVC |
| Sheath colour | Red |
| Rated voltage [V] | 300 |
| Testing voltage [V] | Core/core 800 V core/screen 800 |
| Conductor resistance | * |
| Insulation resistance | 100 MΩ x km |
| Current carrying capacity | * |
| Min. bending radius fixed [xd] | 10 |
| Min. bending radius moved [xd] | * |
| Working temp fixed min/max [C] | -30°C up to +70 |
| Working temp moved min/mac [C] | -5°C up to +50 |
| Temp at conductor max. | * |
| Burning behaviour | flame-retardant: VDE 0482-332-1-2/IEC 60332-1 |
| Approvals | * |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 88010080.00 | 1 x 2 x 0.80 | 6.00 | 1.10 | 4.00 |
| 88020060.00 | 2 x 2 x 0.60 | 5.50 | 1.30 | 4.00 |
| 88020080.00 | 2 x 2 x 0.80 | 7.00 | 2.10 | 5.50 |
| 88040060.00 | 4 x 2 x 0.60 | 6.80 | 2.40 | 6.00 |
| 88040080.00 | 4 x 2 x 0.80 | 9.00 | 4.10 | 10.00 |
| 88060060.00 | 6 x 2 x 0.60 | 7.50 | 3.50 | 8.00 |
| 88060080.00 | 6 x 2 x 0.80 | 10.50 | 6.20 | 14.00 |
| 88100060.00 | 10 x 2 x 0.60 | 9.00 | 5.80 | 11.00 |
| 88100080.00 | 10 x 2 x 0.80 | 13.50 | 10.20 | 22.00 |
| 88200060.00 | 20 x 2 x 0.60 | 11.00 | 11.60 | 19.00 |
| 88200080.00 | 20 x 2 x 0.80 | 16.50 | 20.40 | 38.00 |
| 88300080.00 | 30 x 2 x 0.80 | 20.00 | 30.40 | 57.00 |
| 88400080.00 | 40 x 2 x 0.80 | 22.50 | 40.50 | 73.00 |
| 88500080.00 | 50 x 2 x 0.80 | 25.50 | 50.60 | 92.00 |
| 88800080.00 | 80 x 2 x 0.80 | 31.00 | 80.70 | 144.00 |
| 881000080.00 | 100 x 2 x 0.80 | 32.00 | 100.08 | 178.00 |
