For connecting electrical equipment in industrial water.
Flexible applications in indoor and outdoor swimming pools, but underwater use is prohibited in areas with shipping traffic, moving water or where there is a risk of dangerous, mechanical damage.
Suitable in dry or damp rooms, as well as outdoors and in industrial water at an immersion depth of 10 m.
However, only temporary use in water: a maximum of 2 weeks at a time, subsequent drying-out required

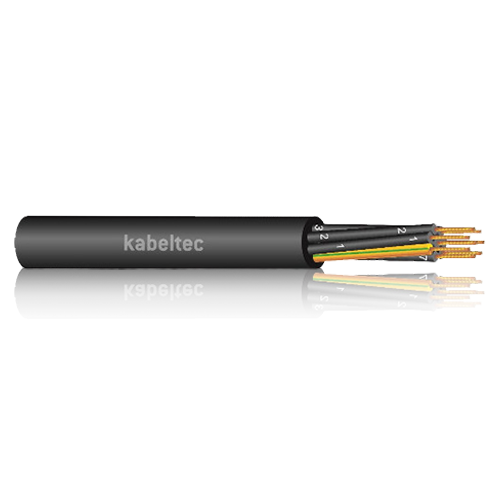

H07RN8-F
Cable for submersible pumps
CONSTRUCTION:
Bare copper wires
Max. water temperature +40°C
TECHNICAL DATA:
Conductor Material: Copper, bare
Conductor class: Class 5
Core insulation: Rubber compound Typ EI 4
Core identification: Up to 5 cores acc. to DIN VDE 0293 coloured cores from 6
black cores with white numerals
Stranding: *
Outer sheath: Rubber compound Typ EM2
Sheath colour: *
Rated voltage [V]: 450 / 750
Testing voltage [V]: 2500
Conductor resistance: *
Insulation resistance: *
Current carrying capacity: VDE 0298 Part 4
Min. bending radius fixed [xd]: 4 x d
Min. bending radius moved [xd]: 8 x d
Working temp fixed min/max [C]: -40°C up to +60
Working temp moved min/mac [C]: -25°C up to +60
Temp at conductor max: *
Burning behaviour: IEC 60332-1-2, EN 60811-404
Approvals: – bauartzertifiziert acc. to EN 50525-2-21
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 949010400.00 | 1 x 4 | 9.00 | 3.90 | 10.00 |
| 949010600.00 | 1 x 6 | 9.80 | 5.80 | 12.00 |
| 949011000.00 | 1 x 10 | 11.90 | 9.60 | 20.00 |
| 949012500.00 | 1 x 25 | 15.80 | 24.00 | 40.00 |
| 949030150.00 | 3 x 1.50 | 11.90 | 4.30 | 17.00 |
| 949030250.00 | 3 x 2.50 | 14.00 | 7.20 | 21.00 |
| 9490315000.00 | 3 x 150 | 55.00 | 432.00 | 650.00 |
| 949040150.00 | 4 x 1.50 | 13.10 | 5.80 | 20.50 |
| 949040250.00 | 4 x 2.50 | 15.50 | 9.60 | 26.00 |
| 949040400.00 | 4 x 4 | 17.90 | 15.40 | 35.60 |
| 949040600.00 | 4 x 6 | 20.00 | 23.00 | 47.50 |
| 949041000.00 | 4 x 10 | 26.50 | 38.40 | 83.70 |
| 949041600.00 | 4 x 16 | 30.10 | 61.40 | 122.00 |
| 949042500.00 | 4 x 25 | 36.60 | 96.00 | 177.00 |
| 949043500.00 | 4 x 35 | 41.10 | 134.40 | 230.00 |
| 949070150.00 | 7 x 1.50 | 17.50 | 10.10 | 38.50 |
| 949070250.00 | 7 x 2.50 | 20.00 | 16.80 | 52.00 |
