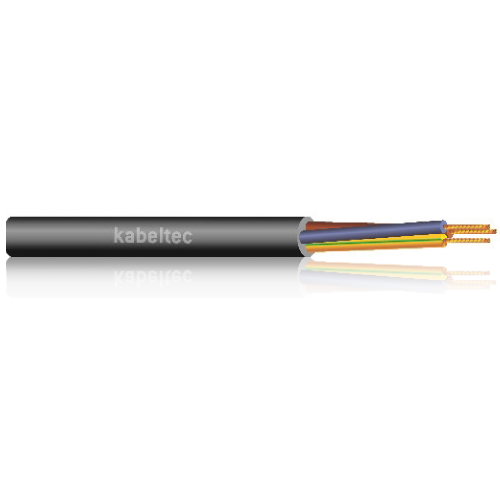

H07BN4-F

Rubber Cable for wind energy plants

TOTAL PRICE

SGD 0.00

It is suitable for use in wind energy applications and the connection of machines and hand tools at medium mechanical stress. The polychloroprene outer sheath is weather and ozone resistant, therefore this cable is suitable for outer use. Suitable in dry and moist rooms, outdoors and on buildings lot as well as in explosive areas.

CONSTRUCTION:

– stranding of fine copper wires blank
– rubber insulation on EPR base
– conductor specification acc. to VDE 0293
– special polychloroprene rubber outer sheath
– black, abrasion, oil resistant
– approved according to VDE 0282 part 12

TECHNICAL DATA:

Conductor Material: Copper, bare
Conductor class: DIN VDE 0295 Class 5, IEC 60228 Class 6
Core insulation: rubber compound
Core identification: Up to 5 cores colour coded in accordance to VDE 0293 6
cores and more black with printed consecutive number
coding
Stranding: Cores twisted in Layers
Outer sheath: Rubber compound
Sheath colour: Black
Rated voltage [V]: 450 / 750
Testing voltage [V]: 2500
Conductor resistance: *
Insulation resistance: 20 MΩ x km
Current carrying capacity: DIN VDE (s. technical guidelines)
Min. bending radius fixed [xd]: DIN VDE 0298 part 3
Min. bending radius moved [xd]: DIN VDE 0298 part 3
Working temp fixed min/max [C]: -20°C up to +75
Working temp moved min/mac [C]: -20°C up to +75
Temp at conductor max: +90°C in operation +250°C in case of short-circuit
Burning behaviour: IEC 60332-1
Approvals: DIN VDE 0282 Teil 4

PART NUMBER CORES OUTER DIAMETER COPPER WEIGHT
KG/100M
WEIGHT
KG/100M
930010150.00 1 x 1.50 7.00 1.44 5.00
930010250.00 1 x 2.50 8.00 2.40 6.60
930010400.00 1 x 4 9.00 3.80 9.40
930010600.00 1 x 6 9.80 5.80 11.00
930011000.00 1 x 10 11.90 9.60 18.20
930011600.00 1 x 16 13.40 15.40 25.60
930012500.00 1 x 25 15.80 24.00 37.00
930013500.00 1 x 35 17.70 33.60 48.20
930015000.00 1 x 50 21.00 48.00 66.20
930017000.00 1 x 70 23.50 67.20 89.10
9300112000.00 1 x 120 28.50 115.20 143.00
9300115000.00 1 x 150 31.50 144.00 174.00
9300118500.00 1 x 185 34.50 177.60 216.00
9300124000.00 1 x 240 38.00 230.40 273.00
9300130000.00 1 x 300 41.50 288.00 348.00
930020100.00 2 x 1 8.40 1.90 9.90
930020150.00 2 x 1.50 9.40 2.90 11.10
930020400.00 2 x 4 15.10 7.70 23.80
930030150.00 3 x 1.50 10.00 4.30 13.40
930030250.00 3 x 2.50 12.50 7.20 19.30
930030600.00 3 x 6 17.50 17.30 34.80
930031000.00 3 x 10 21.00 28.80 66.30
930031600.00 3 x 16 24.00 46.00 92.50
930032500.00 3 x 25 30.10 72.00 134.50
930033500.00 3 x 35 35.20 100.80 176.00
930035000.00 3 x 50 41.20 144.00 239.00
930037000.00 3 x 70 47.00 201.60 310.10
930039500.00 3 x 95 48.20 273.00 417.00
930040100.00 4 x 1 11.00 3.80 14.40
930040150.00 4 x 1.50 11.50 5.80 16.50
930040250.00 4 x 2.50 14.00 9.60 24.70
930040400.00 4 x 4 16.00 15.40 36.00
930040600.00 4 x 6 18.10 23.00 44.30
930041000.00 4 x 10 23.00 38.40 81.80
930041600.00 4 x 16 28.00 61.40 115.00
930042500.00 4 x 25 32.50 96.00 170.00
930043500.00 4 x 35 37.00 134.40 218.00
930045000.00 4 x 50 43.00 192.00 301.40
930047000.00 4 x 70 48.00 268.80 401.60
930049500.00 4 x 95 55.00 364.80 534.40
9300412000.00 4 x 120 60.00 461.00 650.00
9300415000.00 4 x 150 73.00 576.00 801.10
9300418500.00 4 x 185 80.00 710.40 993.20
9300424000.00 4 x 240 87.10 921.60 1313.00
930050100.00 5 x 1 13.00 4.80 18.00
930050150.00 5 x 1.50 12.50 7.20 23.80
930050250.00 5 x 2.50 15.00 12.00 30.00
930050400.00 5 x 4 17.00 19.20 45.30
930050600.00 5 x 6 19.50 28.80 55.90
930051000.00 5 x 10 26.00 48.00 100.40
930051600.00 5 x 16 30.50 76.80 143.00
930052500.00 5 x 25 36.00 120.00 210.00
930120150.00 12 x 1.50 22.00 17.30 50.70
930180150.00 18 x 1.50 25.10 27.40 73.20
930240150.00 24 x 1.50 29.20 34.60 100.00
930360150.00 36 x 1.50 34.30 51.50 132.50
