Used as measuring, checking and control cable in machine tool manufacturing, plant engineering lines. For unrestricted mobility without forced movement control and without exposure to tensile load. Suitable in dry and moist rooms with low mechanical strain but not for outdoor installation. These cables with copper screening are ideally suitable for interference-free data and signal transmission in measuring and control technology.

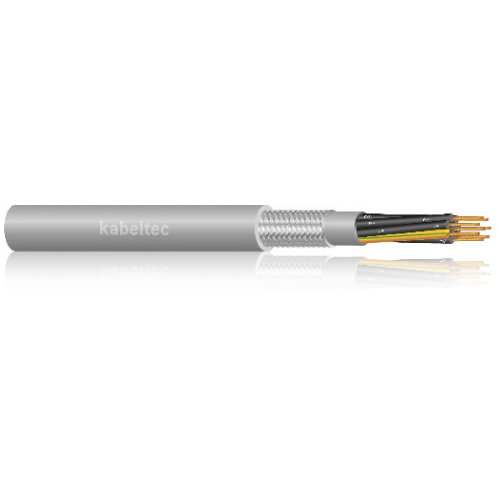

H05VVC4V5-K (NYSLCYO-J)
CONSTRUCTION:
- Fine strands of bare copper wires
- VDE and SEV approved
- PVC outer sheath, RAL 7001
- Overall tinned copper wire braid
- Earth conductor green/yellow in the outer layer
- Flame-retardant
- Cores acc. to VDE 0295, class 5
- PVC core insulation black with continuous white figure imprint
- Oil resistant acc. HD 21 Part 13 S1
TECHNICAL DATA:
| Conductor Material: | Copper, bare |
| Conductor class: | Class 5 acc. to DIN VDE 0295, bzw. IEC 60228 |
| Core insulation: | PVC |
| Core identification: | Class 5 acc. to DIN VDE 0295, bzw. IEC 60228 |
| Stranding: | Cores twisted in layers |
| Outer sheath: | PVC |
| Sheath colour: | Grey (RAL 7001) |
| Rated voltage [V]: | 300 / 500 |
| Testing voltage [V]: | 3000 |
| Conductor resistance: | |
| Insulation resistance: | 20 MΩ x km |
| Current carrying capacity: | DIN VDE (see technical guidelines) |
| Min. bending radius fixed [xd]: | 6 x d |
| Min. bending radius moved [xd]: | 20 x d |
| Working temp fixed min/max [C]: | -40°C up to+70°C |
| Working temp moved min/mac [C]: | -5°C up to+70°C |
| Temp at conductor max.: | +70°C in operation |
| +150°C in case of short-circuit | |
| Burning behaviour: | VDE 0482-332-1-2/IEC 60332-1 |
| Approvals: | Oil resistance IEC 60811-2-1, EN 50525-2-51,VDE 0281-13 |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 14030075.00 | 3 x 0.75 | 9.00 | 5.10 | 13.00 |
| 14030100.00 | 3 x 1 | 9.60 | 7.00 | 14.50 |
| 14030050.00 | 3 x 0.50 | 8.50 | 4.20 | 10.90 |
| 14030150.00 | 3 x 1.50 | 10.40 | 9.20 | 17.60 |
| 14030250.00 | 3 x 2.50 | 12.20 | 12.90 | 23.00 |
| 14040075.00 | 4 x 0.75 | 10.20 | 6.30 | 16.50 |
| 14040100.00 | 4 x 1 | 10.70 | 8.30 | 17.80 |
| 14040050.00 | 4 x 0.50 | 9.30 | 5.60 | 12.50 |
| 14040150.00 | 4 x 1.50 | 11.20 | 11.60 | 20.40 |
| 14040250.00 | 4 x 2.50 | 13.30 | 15.70 | 31.20 |
| 14050075.00 | 5 x 0.75 | 10.90 | 7.00 | 19.00 |
| 14050100.00 | 5 x 1 | 11.40 | 10.10 | 20.70 |
| 14050050.00 | 5 x 0.50 | 10.30 | 6.20 | 15.40 |
| 14050150.00 | 5 x 1.50 | 12.00 | 12.50 | 26.50 |
| 14050250.00 | 5 x 2.50 | 14.50 | 19.00 | 36.80 |
| 14070075.00 | 7 x 0.75 | 12.30 | 10.50 | 24.70 |
| 14070100.00 | 7 x 1 | 13.00 | 12.60 | 25.60 |
| 14070050.00 | 7 x 0.50 | 11.70 | 8.40 | 20.00 |
| 14070150.00 | 7 x 1.50 | 13.90 | 16.80 | 41.00 |
| 14070250.00 | 7 x 2.50 | 16.70 | 25.20 | 45.20 |
| 14120075.00 | 12 x 0.75 | 14.80 | 16.10 | 32.90 |
| 14120100.00 | 12 x 1 | 16.60 | 19.40 | 42.70 |
| 14120050.00 | 12 x 0.50 | 13.90 | 12.10 | 27.80 |
| 14120150.00 | 12 x 1.50 | 17.40 | 25.50 | 49.60 |
| 14120250.00 | 12 x 2.50 | 21.40 | 40.90 | 73.00 |
| 14180075.00 | 18 x 0.75 | 17.80 | 22.00 | 47.80 |
| 14180100.00 | 18 x 1 | 19.40 | 26.50 | 57.80 |
| 14180050.00 | 18 x 0.50 | 16.80 | 16.40 | 40.70 |
| 14180150.00 | 18 x 1.50 | 20.40 | 35.80 | 70.20 |
| 14180250.00 | 18 x 2.50 | 25.40 | 54.40 | 105.00 |
| 14250075.00 | 25 x 0.75 | 21.20 | 27.80 | 64.90 |
| 14250100.00 | 25 x 1 | 22.80 | 35.00 | 78.00 |
| 14250050.00 | 25 x 0.50 | 19.90 | 20.80 | 53.00 |
| 14250150.00 | 25 x 1.50 | 24.60 | 46.00 | 94.00 |
| 14250250.00 | 25 x 2.50 | 30.00 | 87.60 | 139.00 |
| 14340050.00 | 34 x 0.50 | 21.80 | 29.40 | 62.50 |
| 14340075.00 | 34 x 0.75 | 23.60 | 37.90 | 81.00 |
| 14340100.00 | 34 x 1 | 25.60 | 43.50 | 98.50 |
| 14340150.00 | 34 x 1.50 | 27.00 | 63.00 | 118.00 |
| 14340250.00 | 34 x 2.50 | 33.60 | 116.30 | 186.00 |
| 14500050.00 | 50 x 0.50 | 25.90 | 47.80 | 95.60 |
| 14500075.00 | 50 x 0.75 | 27.60 | 57.30 | 117.50 |
| 14500100.00 | 50 x 1 | 29.70 | 70.00 | 127.80 |
| 14500150.00 | 50 x 1.50 | 32.00 | 101.50 | 166.00 |
| 14500250.00 | 50 x 2.50 | 38.40 | 166.00 | 267.30 |
| 14600050.00 | 60 x 0.50 | 27.20 | 51.90 | 114.40 |
| 14600075.00 | 60 x 0.75 | 29.40 | 64.50 | 137.00 |
| 14600100.00 | 60 x 1 | 31.80 | 87.40 | 148.00 |
| 14600150.00 | 60 x 1.50 | 33.60 | 122.30 | 190.00 |
| 14610250.00 | 61 x 2.50 | 42.00 | 199.20 | 308.50 |
