Used as measuring, power and control cable in machine tool manufacturing, plant engineering lines. For unrestricted mobility without forced movement, control and without exposure to tensile load. These cables with copper screening are ideally suitable for interference-free data and signal transmission in measuring and control technology. Suitable in dry and moist rooms with low mechanical strain but not outdoors.

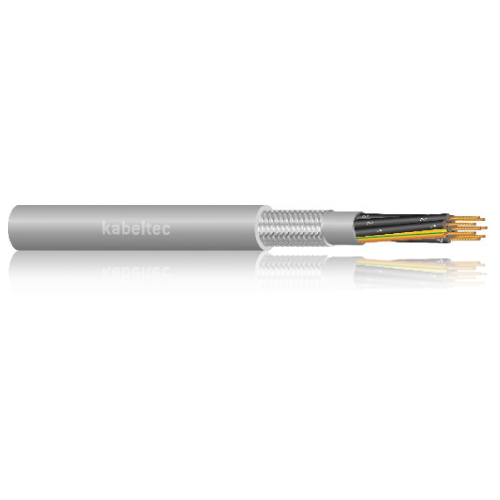

H05VVC4V5-K Multinorm
UL/CSA/HAR/VDE
CONSTRUCTION:
- Fine strands of bare copper wires
- PVC inner sheath
- Overall tinned copper wire braid
- PVC outer sheath, RAL 7001
- Cores acc. to VDE 0295, class 5
- PVC core insulation black with continuous white figure imprint
- Earth conductor green/yellow in the outer layer
- Flame retardant outer sheath
- UL/CSA/HAR/VDE approved
- Oil resistant outer sheath, PVC-TM5
TECHNICAL DATA:
| Conductor Material: | Copper, bare |
| Conductor class: | Class 5 acc. to DIN VDE 0295 or IEC 60228 |
| Core insulation: | PVC |
| Core identification: : | Acc. to DIN VDE 0293: Black cores with white numerals |
| Stranding: | Cores twisted in layers |
| Outer sheath: | PVC |
| Sheath colour: | Grey (RAL 7001) |
| Rated voltage [V]: | |
| Testing voltage [V]: | 3000 |
| Conductor resistance: | DIN VDE 0295 Class 5 |
| Insulation resistance: | 20 MΩ x km |
| Current carrying capacity: | DIN VDE (see technical guidelines) |
| Min. bending radius fixed [xd]: | 6 x d |
| Min. bending radius moved [xd]: | 12.5 x d |
| Working temp fixed min/max [C]: | HAR: -40°C up to +70°C UL/CSA: -40°C up to +90 |
| Working temp moved min/mac [C]: | HAR: -5°C up to +70°C UL/CSA: -5°C up to +90 |
| Temp at conductor max.: | +70°C in operation +150°C in case of short-circuit |
| Burning behaviour: | IEC 60332-1; VW1; CSA FT1 |
| Approvals: | Oil resistance VDE 0472, 804 |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 140020050.00 | 2 x 0.50 AWG 20 | 7.70 | 3.00 | 9.00 |
| 140020075.00 | 2 x 0.75 AWG 19 | 8.30 | 4.10 | 11.50 |
| 140020100.00 | 2 x 1 AWG 18 | 8.50 | 4.80 | 12.10 |
| 140020150.00 | 2 x 1.50 AWG 16 | 9.50 | 6.90 | 15.80 |
| 140020250.00 | 2 x 2.50 AWG 14 | 11.10 | 8.20 | 21.40 |
| 140030075.00 | 3 x 0.75 AWG 19 | 8.90 | 6.80 | 12.50 |
| 140030100.00 | 3 x 1 AWG 18 | 9.60 | 7.60 | 14.50 |
| 140030050.00 | 3 x 0.50 AWG 20 | 8.50 | 4.30 | 10.60 |
| 140030150.00 | 3 x 1.50 AWG 16 | 10.70 | 8.40 | 17.70 |
| 140030250.00 | 3 x 2.50 AWG 14 | 12.10 | 12.00 | 24.50 |
| 140040075.00 | 4 x 0.75 AWG 19 | 9.80 | 7.00 | 15.70 |
| 140040100.00 | 4 x 1 AWG 18 | 10.30 | 8.00 | 18.00 |
| 140040150.00 | 4 x 1.50 AWG 16 | 11.30 | 9.40 | 21.10 |
| 140040250.00 | 4 x 2.50 AWG 14 | 13.40 | 16.00 | 29.50 |
| 140050075.00 | 5 x 0.75 AWG 19 | 10.80 | 7.70 | 18.00 |
| 140050100.00 | 5 x 1 AWG 18 | 11.20 | 9.50 | 20.30 |
| 140050050.00 | 5 x 0.50 AWG 20 | 10.00 | 5.70 | 15.00 |
| 140050150.00 | 5 x 1.50 AWG 16 | 12.20 | 12.20 | 24.10 |
| 140050250.00 | 5 x 2.50 AWG 14 | 14.50 | 20.50 | 36.50 |
| 140070075.00 | 7 x 0.75 AWG 19 | 12.30 | 9.30 | 22.60 |
| 140070100.00 | 7 x 1 AWG 18 | 13.30 | 11.80 | 27.30 |
| 140070050.00 | 7 x 0.50 AWG 20 | 11.40 | 7.60 | 20.00 |
| 140070150.00 | 7 x 1.50 AWG 16 | 14.60 | 14.30 | 30.60 |
| 140070250.00 | 7 x 2.50 AWG 14 | 17.00 | 24.30 | 51.70 |
| 140120075.00 | 12 x 0.75 AWG 19 | 14.50 | 16.00 | 35.60 |
| 140120100.00 | 12 x 1 AWG 18 | 15.60 | 19.50 | 42.50 |
| 140120050.00 | 12 x 0.50 AWG 20 | 13.60 | 12.40 | 27.80 |
| 140120150.00 | 12 x 1.50 AWG 16 | 17.60 | 25.40 | 48.00 |
| 140120250.00 | 12 x 2.50 AWG 14 | 21.20 | 40.20 | 78.90 |
| 140180050.00 | 18 x 0.50 AWG 20 | 15.80 | 16.60 | 43.00 |
| 140180075.00 | 18 x 0.75 AWG 19 | 16.30 | 25.80 | 52.60 |
| 140180100.00 | 18 x 1 AWG 18 | 18.00 | 25.90 | 58.30 |
| 140180150.00 | 18 x 1.50 AWG 16 | 20.30 | 31.80 | 61.70 |
| 140180250.00 | 18 x 2.50 AWG 14 | 24.90 | 56.00 | 109.30 |
| 140250050.00 | 25 x 0.50 AWG 20 | 18.70 | 19.80 | 51.10 |
| 140250075.00 | 25 x 0.75 AWG 19 | 19.50 | 32.10 | 69.20 |
| 140250100.00 | 25 x 1 AWG 18 | 21.40 | 34.30 | 77.80 |
| 140250150.00 | 25 x 1.50 AWG 16 | 24.40 | 48.50 | 98.30 |
| 140250250.00 | 25 x 2.50 AWG 14 | 29.50 | 80.20 | 147.00 |
| 140340050.00 | 34 x 0.50 AWG 20 | 20.70 | 23.80 | 634.40 |
| 140340075.00 | 34 x 0.75 AWG 19 | 22.60 | 36.00 | 81.70 |
| 140340100.00 | 34 x 1 AWG 18 | 24.00 | 45.00 | 96.40 |
| 140340150.00 | 34 x 1.50 AWG 16 | 27.30 | 68.00 | 124.10 |
| 140340250.00 | 34 x 2.50 AWG 14 | 32.70 | 102.20 | 194.20 |
| 140410050.00 | 41 x 0.50 AWG 20 | 24.70 | 34.90 | 76.30 |
| 140410075.00 | 41 x 0.75 AWG 19 | 25.80 | 45.70 | 92.30 |
| 140410100.00 | 41 x 1 AWG 18 | 27.50 | 57.20 | 117.30 |
| 140500050.00 | 50 x 0.50 AWG 20 | 25.90 | 40.00 | 98.20 |
| 140500075.00 | 50 x 0.75 AWG 19 | 27.70 | 54.60 | 116.90 |
| 140500100.00 | 50 x 1 AWG 18 | 29.10 | 67.70 | 134.20 |
| 140500150.00 | 50 x 1.50 AWG 16 | 32.80 | 91.40 | 171.30 |
| 140500250.00 | 50 x 2.50 AWG 14 | 39.40 | 151.10 | 269.40 |
| 140610050.00 | 61 x 0.50 AWG 20 | 27.70 | 45.50 | 108.20 |
| 140610075.00 | 61 x 0.75 AWG 19 | 30.20 | 64.10 | 144.30 |
| 140610100.00 | 61 x 1 AWG 18 | 32.00 | 78.90 | 153.70 |
| 140610150.00 | 61 x 1.50 AWG 16 | 34.90 | 106.50 | 189.70 |
| 140610250.00 | 61 x 2.50 AWG 14 | 41.00 | 181.30 | 310.00 |
