Used as measuring, checking and control cable in machine tool manufacturing, plant engineering lines. For unrestricted mobility without forced movement control and without exposure to tensile load. Suitable in dry and moist rooms with low mechanical strain but not at outdoor.

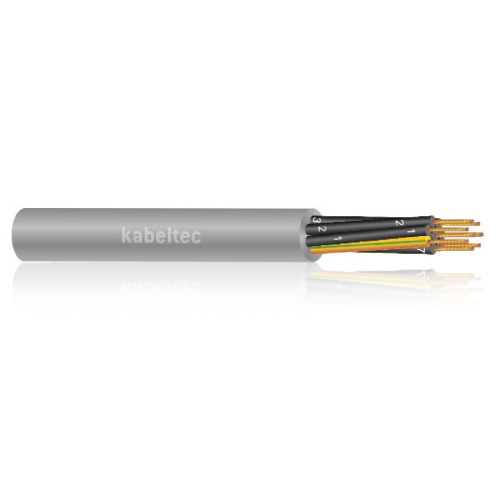

H05VV5-F (NYSLYO-J)
VDE Approved Cable
CONSTRUCTION:
- Fine strands of bare copper wires, Class 5
- Cores acc. to VDE 0295, class 5
- PVC core insulation black with continuous white figure imprint
- Earth conductor green/yellow in the outer layer
- Flame-retardant outer sheath IEC 332,1
- Oil resist acc. HD21 Part 13 S1
TECHNICAL DATA:
| Conductor Material: | Copper, bare |
| Conductor class: | Class 5 acc. to DIN VDE 0295 or IEC 60228 |
| Core insulation: | PVC |
| Core identification: | Acc. to DIN VDE 0293 black cores with white numerals |
| Stranding: | Cores twisted in layers |
| Outer sheath: | PVC |
| Sheath colour: | Grey (RAL 7001) |
| Rated voltage [V]: | 300 / 500 |
| Testing voltage [V]: | 3000 |
| Conductor resistance: | |
| Insulation resistance: | 20 MΩ x km |
| Current carrying capacity: | DIN VDE (see technical guidelines) |
| Min. bending radius fixed [xd]: | 4 x d |
| Min. bending radius moved [xd]: | 12.5 x d |
| Working temp fixed min/max [C]: | -40°C up to+70°C |
| Working temp moved min/mac [C]: | -5°C up to+70°C |
| Temp at conductor max.: | +70°C in operation +150°C in case of short-circuit |
| Burning behaviour: | VDE 0482-332-1-2/IEC 60332-1 |
| Approvals: | Oil resistance IEC 60811-2-1, EN 50525-2-51, VDE 0281-13 |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 13030050.00 | 3 x 0.50 | 6.30 | 1.44 | 5.30 |
| 13030075.00 | 3 x 0.75 | 6.70 | 2.16 | 6.10 |
| 13030100.00 | 3 x 1 | 7.20 | 2.88 | 7.70 |
| 13030150.00 | 3 x 1.50 | 7.80 | 4.32 | 10.60 |
| 13030250.00 | 3 x 2.50 | 9.80 | 7.20 | 15.50 |
| 13040050.00 | 4 x 0.50 | 6.90 | 1.92 | 6.50 |
| 13040075.00 | 4 x 0.75 | 7.40 | 2.88 | 7.80 |
| 13040100.00 | 4 x 1 | 7.90 | 3.84 | 9.40 |
| 13040150.00 | 4 x 1.50 | 8.80 | 5.76 | 13.10 |
| 13040250.00 | 4 x 2.50 | 11.10 | 9.60 | 19.60 |
| 13050050.00 | 5 x 0.50 | 7.50 | 2.40 | 8.00 |
| 13050075.00 | 5 x 0.75 | 8.40 | 3.60 | 10.00 |
| 13050100.00 | 5 x 1 | 9.00 | 4.80 | 12.00 |
| 13050150.00 | 5 x 1.50 | 9.60 | 7.20 | 16.50 |
| 13050250.00 | 5 x 2.50 | 12.10 | 12.00 | 24.20 |
| 13070050.00 | 7 x 0.50 | 9.20 | 3.36 | 11.60 |
| 13070075.00 | 7 x 0.75 | 9.80 | 5.04 | 14.10 |
| 13070100.00 | 7 x 1 | 10.60 | 6.72 | 17.30 |
| 13070150.00 | 7 x 1.50 | 11.70 | 10.10 | 24.70 |
| 13070250.00 | 7 x 2.50 | 14.50 | 16.80 | 36.90 |
| 13120050.00 | 12 x 0.50 | 11.50 | 5.76 | 17.40 |
| 13120075.00 | 12 x 0.75 | 12.30 | 8.64 | 21.40 |
| 13120100.00 | 12 x 1 | 13.20 | 11.52 | 25.80 |
| 13120150.00 | 12 x 1.50 | 14.00 | 17.30 | 35.80 |
| 13120250.00 | 12 x 2.50 | 18.00 | 28.80 | 53.50 |
| 13180050.00 | 18 x 0.50 | 13.40 | 8.64 | 24.80 |
| 13180075.00 | 18 x 0.75 | 14.40 | 13.00 | 31.10 |
| 13180100.00 | 18 x 1 | 16.00 | 17.28 | 37.00 |
| 13180150.00 | 18 x 1.50 | 17.00 | 25.90 | 53.00 |
| 13180250.00 | 18 x 2.50 | 21.60 | 43.20 | 80.00 |
| 13250050.00 | 25 x 0.50 | 16.50 | 12.00 | 35.40 |
| 13250075.00 | 25 x 0.75 | 17.70 | 18.00 | 42.70 |
| 13250100.00 | 25 x 1 | 19.60 | 24.00 | 51.80 |
| 13250150.00 | 25 x 1.50 | 20.80 | 36.00 | 72.40 |
| 13250250.00 | 25 x 2.50 | 26.30 | 60.00 | 116.30 |
| 13340050.00 | 34 x 0.50 | 19.00 | 16.32 | 47.60 |
| 13340075.00 | 34 x 0.75 | 20.40 | 24.48 | 59.00 |
| 13340100.00 | 34 x 1 | 21.80 | 32.64 | 70.00 |
| 13340150.00 | 34 x 1.50 | 23.20 | 48.96 | 98.00 |
| 13340250.00 | 34 x 2.50 | 28.50 | 81.60 | 153.60 |
| 13500050.00 | 50 x 0.50 | 22.10 | 24.00 | 65.00 |
| 13500075.00 | 50 x 0.75 | 23.80 | 36.00 | 85.10 |
| 13500100.00 | 50 x 1 | 26.00 | 48.00 | 99.30 |
| 13500150.00 | 50 x 1.50 | 27.80 | 72.00 | 138.00 |
| 13500250.00 | 50 x 2.50 | 34.80 | 120.00 | 225.20 |
| 13600050.00 | 60 x 0.50 | 23.40 | 28.80 | 75.30 |
| 13600075.00 | 60 x 0.75 | 25.70 | 43.20 | 98.50 |
| 13600100.00 | 60 x 1 | 27.60 | 57.60 | 117.30 |
| 13600150.00 | 60 x 1.50 | 29.40 | 86.40 | 187.00 |
| 13600250.00 | 60 x 2.50 | 36.80 | 144.00 | 251.50 |
