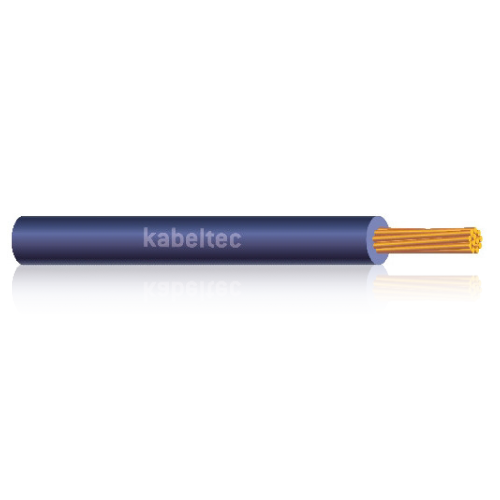

PVC Single cores
H05V-K/H07V-K
Suitable in dry rooms for fixed and flexible laying. They may be used for exposed
conduits or embedded conduits
LIY-V
These switching strands are intended for wiring telecommunication devices,
electronic components in devices and telecommunication systems.
CONSTRUCTION:
– LIY-V: fine strands of tinned copper wire
– HO5V-K/HO7V-K: fine strands of bare copper wire
– PVC core insulation, available in various colours, see colour numbers
Technical Data:
| Conductor Material: | Copper, bare LIYV: Copper, tinned |
| Conductor class: | Class 5 |
| Core insulation: | PVC |
| Core identification: | |
| Stranding: | |
| Outer sheath: | |
| Sheath colour: | Available in various colours, see colour numbers |
| Rated voltage [V]: | H05V-K: 300/500 V H07V-K: 450/750 V LIY-V: 500/900 |
| Testing voltage [V]: | H05V-K: 2000 V H07V-K: 2500 V LIYV: 2500 |
| Conductor resistance: | |
| Insulation resistance: | > 20 MΩ x km |
| Current carrying capacity: | |
| Min. bending radius fixed [xd]: | core Ø smaller 8 mm: 4x core Ø ; core Ø larger 8-1 2 mm: |
| 5x core Ø ; core Ø larger 12 mm: 6x core Ø; | |
| Min. bending radius moved [xd]: | |
| Working temp fixed min/max [C]: | -30°C up to +80°C |
| Working temp moved min/max [C]: | +5°C up to +70°C |
| Temp at conductor max.: | |
| Burning behaviour: | VDE 0482-332-1-2/IEC 60332-1self-extinguishing |
| Approvals: | VDE 0281-3 |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 333..0150 | 1 x 1.50 | 2.90 | 1.44 | 2.14 |
| 35..0250 | 1 x 2.50 | 3.70 | 2.40 | 3.30 |
| 33..0250 | 1 x 2.50 | 3.20 | 2.40 | 3.70 |
| 333..0250 | 1 x 2.50 | 3.60 | 2.40 | 3.37 |
| 35..0400 | 1 x 4 | 4.20 | 3.84 | 5.00 |
| 35..0600 | 1 x 6 | 4.80 | 5.80 | 6.50 |
| 35..1000 | 1 x 10 | 6.20 | 9.60 | 12.00 |
| 35..1600 | 1 x 16 | 7.70 | 15.40 | 18.00 |
| 35..2500 | 1 x 25 | 9.20 | 24.00 | 26.00 |
| 35..3500 | 1 x 35 | 11.50 | 33.60 | 36.00 |
| 35..5000 | 1 x 50 | 12.50 | 48.00 | 51.50 |
| 35..7000 | 1 x 70 | 15.00 | 67.20 | 71.00 |
| 35..9500 | 1 x 95 | 16.00 | 91.20 | 94.00 |
| 35..12000 | 1 x 120 | 18.50 | 115.20 | 118.00 |
| 35..15000 | 1 x 150 | 20.00 | 144.00 | 160.00 |
| 33..0014 | 1 x 0.14 | 1.00 | 0.14 | 0.21 |
| 333..0050 | 1 x 0.50 | 2.00 | 0.48 | 0.89 |
| 33..0025 | 1 x 0.25 | 1.30 | 0.25 | 0.26 |
| 333..0075 | 1 x 0.75 | 2.20 | 0.72 | 1.18 |
| 33..0034 | 1 x 0.34 | 1.40 | 0.33 | 0.40 |
| 333..0100 | 1 x 1 | 2.50 | 0.96 | 1.54 |
| 33..0038 | 1 x 0.38 | 1.60 | 0.37 | 0.50 |
| 35..0150 | 1 x 1.50 | 3.00 | 1.44 | 2.10 |
| 333..0005 | 1 x 0.05 | 0.70 | 0.06 | 0.13 |
| 33..0150 | 1 x 1.50 | 2.60 | 1.44 | 2.20 |
| 333..0008 | 1 x 0.08 | 0.80 | 0.08 | 0.16 |
| 34..0075 | 1 x 0.75 | 2.30 | 0.72 | 1.20 |
| 333..0014 | 1 x 0.14 | 1.10 | 0.14 | 0.21 |
| 333..0025 | 1 x 0.25 | 1.30 | 0.24 | 0.42 |
| 333..0038 | 1 x 0.38 | 1.70 | 0.38 | 0.66 |
| 34`..0100 | 1 x 1 | 2.50 | 0.96 | 1.40 |
| 34..0050 | 1 x 0.50 | 2.10 | 0.48 | 1.00 |
| 33..0050 | 1 x 0.50 | 1.80 | 0.48 | 0.80 |
| 33..0075 | 1 x 0.75 | 2.00 | 0.72 | 1.20 |
| 33..0100 | 1 x 1 | 2.10 | 0.96 | 1.80 |
