Suitable where PVC-insulated cables become brittle due to high temperature variations. Silicone-insulated single cores are preferably used in the metallurgical industry, steel works, hot-rolling mills, coking plants, foundries, etc. The insulation consists of silicone rubber. It is resistant to vegetable and animal fat, many types of oil and diluted acids. No decomposition occurs when exposed to alcohol, alkaline solutions, etc. The insulation is fully tropicalized and resistant to oxygen and ozone. Should the cable burn, an insulation silicone dioxide layer will remain on the conductor to render it short circuit proof.

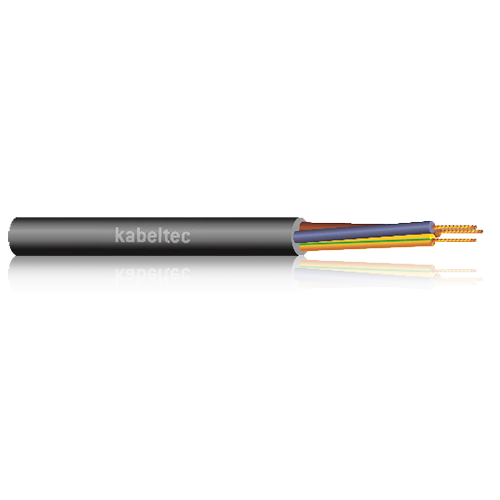

H05SS-F
CONSTRUCTION:
- Stranded conductor of tinned copper wire
- Stranding acc. to VDE 0295, class 5
- Silicone-insulated cores in accordance to DIN VDE 0207 part 20
- Up to 5 cores: colour coded according to VDE 0293
- Earth conductor green/yellow
- Silicone outer sheath, red-brown
- Halogen free in accordance to VDE 0472 part 815 / IEC 751-1
TECHNICAL DATA:
| Conductor Material | Copper, tinned |
| Conductor class | Class 5 acc. to VDE 0295 or IEC 60228 |
| Core insulation | Silicone |
| Core identification | Up to 5 cores: colour coded according to VDE 0293 |
| Stranding | Cores twisted in layers |
| Outer sheath | Silicone |
| Sheath colour | Red-brown or black |
| Rated voltage [V] | 300 / 500 |
| Testing voltage [V] | 2000 |
| Conductor resistance | * |
| Insulation resistance | ≥ 2 GΩ x km |
| Current carrying capacity | DIN VDE (see technical guidelines) |
| Min. bending radius fixed [xd] | 4 |
| Min. bending radius moved [xd] | 7.5 |
| Working temp fixed min/max [C] | -50°C up to +180 |
| Working temp moved min/mac [C] | * |
| Temp at conductor max | +180°C |
| Burning behaviour | VDE 0482-332-2-1 (IEC 60332-1): flame-retardant |
| Approvals | IEC 60754-1 IEC 60754-2 |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 441020075 | 2 x 0.75 | 6.4 | 1.44 | 5.4 |
| 441020100 | 2 x 1 | 6.8 | 1.92 | 6.4 |
| 441020150 | 2 x 1.50 | 8.5 | 2.9 | 8.5 |
| 441030075 | 3 x 0.75 | 7.1 | 2.2 | 6.7 |
| 441030100 | 3 x 1 | 7.2 | 2.9 | 8.1 |
| 441030150 | 3 x 1.50 | 9 | 4.3 | 105 |
| 441030250 | 3 x 2.50 | 10.4 | 7.2 | 16 |
| 441030400 | 3 x 4 | 12.5 | 11.5 | 24.3 |
| 441030600 | 3 x 6 | 14.3 | 17.3 | 35.2 |
| 441040075 | 4 x 0.75 | 7.6 | 2.9 | 8.9 |
| 441040100 | 4 x 1 | 7.9 | 3.8 | 10 |
| 441040150 | 4 x 1.50 | 10 | 5.8 | 13 |
| 441040250 | 4 x 2.50 | 11.8 | 9.6 | 20.1 |
| 441040400 | 4 x 4 | 13.7 | 15.4 | 32.1 |
| 441040600 | 4 x 6 | 15.8 | 23 | 45.8 |
| 441050075 | 5 x 0.75 | 8.5 | 3.6 | 10.4 |
| 441050100 | 5 x 1 | 8.9 | 4.8 | 12.2 |
| 441050150 | 5 x 1.50 | 11.1 | 7.2 | 15.8 |
| 441050250 | 5 x 2.50 | 13.3 | 12 | 25 |
