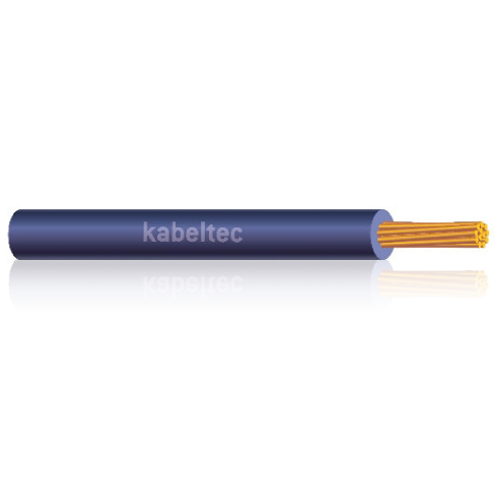

PVC SINGLE CORE FLEXIBLE CABLE
H05V-K / H07V-K

Rubber cable

SGD 0.12 – SGD 43.30
TOTAL PRICE

SGD 0.00

 Description

  • Conductor: plain copper wire, flexible, class 5
  • Insulation: PVC, TI1 quality
  • Colour: black, blue, brown, grey, pink, red, light blue, violet, white, yellow, green, green/yellow,
  • As two-colour: any combination (H05V-K)

Installation conditions

  • Minimum installation temperature: 5°C
  • Recommended minimum bending radius: 4 times the cable diameter
  • Recommended maximum tensile stress: 50 N/mm² of the cross-section of the copper





Functional characteristics

  • Rated voltage

H05V-K: Uo/U 300/500 V H07V-K: Uo/U 450/750 V

  • operating temperature: 70°C
  • operating temperature: -10°C (without mechanical shocks)
  • short circuit temperature: 160°C

H05V-K

PART NUMBER CORES OUTER DIAMETER COPPER WEIGHT
KG/100M		 WEIGHT
KG/100M
1 x 0,5 1 x 0,5 2,5 9 9
1 x 0,75 1 x 0,75 2,7 11 11
1 x 1 1 x 1 2,8 15 15

H07V-K

PART NUMBER CORES OUTER DIAMETER COPPER WEIGHT
KG/100M		 WEIGHT
KG/100M
1 x 1,5 1 x 1,5 1,5 20 20
1 x 2,5 1 x 2,5 2,0 31 31
1 x 4 1 x 4 2,5 45 45
1 x 6 1 x 6 3,0 65 65
1 x 10 1 x 10 4,0 109 109
1 x 16 1 x 16 5,0 163 163
1 x 25 1 x 25 6,2 251 251
1 x 35 1 x 35 7,4 347 347
1 x 50 1 x 50 8,9 493 493
1 x 70 1 x 70 10,5 680 680
1 x 95 1 x 95 12,2 910 910
1 x 120 1 x 120 13,8 1140 1140
1 x 150 1 x 150 15,4 1420 1420
1 x 185 1 x 185 16,9 1730 1730
1 x 240 1 x 240 19,5 2270 2270
