These cables can be used for medium mechanical loads in dry, damp or wet environments, e.g. for connecting agricultural and commercial equipment and heaters provided there is no danger of contact with the hot parts or by radiation of heat. These robust and flexible cables are used for electrical tools such as drills and handheld circular saws, as well as for portable motors and machinery in agriculture, at building sites, docks and refrigeration plants.

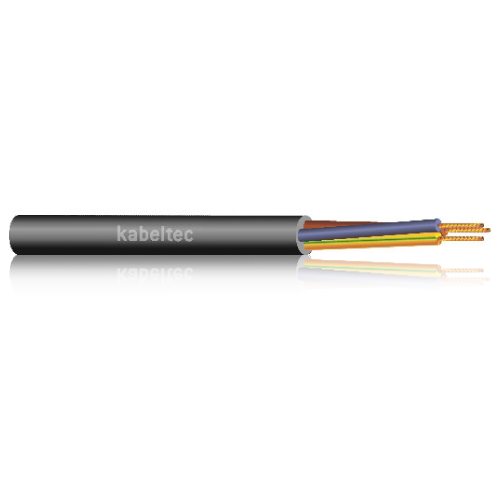

CONSTRUCTION:
- Plain or tinned copper conductor, stranded according to DIN VDE 0295 cl. 5 and HD 383 cl.5. Insulating jacket of rubber, compound E16 according to DIN VDE 0282 part 1.
- Core arrangement: Cores twisted around in concentric layers.
- Oil resistance: according to VDE 0472 part 803, test type B
- Halogen free: The used materials are halogen free
- Features: Abrasion resistant, notch resistant, resistant to tearing and cutting.
- Good flexibility at low temperatures down to -40°.
TECHNICAL DATA:
Conductor Material: | Plain or tinned copper, fine stranded according to VDE 0295 |
Conductor class: | Class 5 (IEC 228) |
Core insulation: | Neoprene 3GI3 according to VDE 0207 part 20 |
Core identification: | 2 cores: blue, brown |
3 cores: | green-yellow, blue, brown |
4 cores: | green-yellow, brown, black, grey |
5 cores: | green-yellow, blue, brown, black, grey |
6 and more cores: | greenyellow, black numbered |
Stranding: | |
Outer sheath: | Polyurethane 11YM1 according to VDE 0250 part 818 |
Sheath colour: | black |
Rated voltage [V]: | H05BQ-F: 300/500 V up to 1mm² H07BQ-F: 450/750 V as of 1.5mm² |
Testing voltage [V]: | H05BQ-F: 2000 V up to 1mm² H07BQ-F: 2500 V as of 1.5mm² |
Conductor resistance: | |
Insulation resistance: | |
Current carrying capacity: | |
Min. bending radius fixed [xd]: | |
Min. bending radius moved [xd]: | |
Working temp fixed min/max [C]: | -45°C up to +90°C |
Working temp moved min/mac [C]: | -35°up to +80°C |
Temp at conductor max.: | |
Burning behaviour: | |
Approvals: |
PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
---|---|---|---|---|
H05BQ-F, H07BQ-F Black 1 | 2 x 0.75 300/500 V | 5.7-7.4 | 1.44 | 6.00 |
H05BQ-F, H07BQ-F Black 2 | 2 x 1 300/500 V | 6.1-8.0 | 1.90 | 7.00 |
H05BQ-F, H07BQ-F Black 3 | 2 x 1.50 450/750 V | 7.6-9.8 | 2.90 | 9.70 |
H05BQ-F, H07BQ-F Black 4 | 2 x 2.50 450/750 V | 9.0-11.6 | 4.80 | 11.00 |
H05BQ-F, H07BQ-F Black 5 | 2 x 4 450/750 V | 10.6-13.7 | 7.70 | 19.60 |
H05BQ-F, H07BQ-F Black 6 | 2 x 6 450/750 V | 11.8-15.1 | 11.50 | 31.50 |
H05BQ-F, H07BQ-F Black 7 | 2 x 10 450/750 V | 15.6-19.9 | 19.20 | 43.00 |
H05BQ-F, H07BQ-F Black 8 | 2 x 16 450/750 V | 17.9-22.8 | 61.50 | 60.00 |
H05BQ-F, H07BQ-F Black 9 | 3 x 0.75 300/500 V | 6.2-8.1 | 2.16 | 7.00 |
H05BQ-F, H07BQ-F Black 10 | 3 x 1 300/500 V | 6.5-8.5 | 2.90 | 8.00 |
H05BQ-F, H07BQ-F Black 11 | 3 x 1.50 450/750 V | 8.0-10.4 | 4.30 | 12.00 |
H05BQ-F, H07BQ-F Black 12 | 3 x 2.50 450/750 V | 9.6-12.4 | 7.20 | 17.50 |
H05BQ-F, H07BQ-F Black 13 | 3 x 4 450/750 V | 11.3-14.5 | 11.50 | 22.50 |
H05BQ-F, H07BQ-F Black 14 | 3 x 6 450/750 V | 12.8-16.3 | 17.30 | 2.50 |
H05BQ-F, H07BQ-F Black 15 | 3 x 10 450/750 V | 16.8-21.4 | 28.80 | 64.00 |
H05BQ-F, H07BQ-F Black 16 | 3 x 16 450/750 V | 19.5-24.7 | 46.00 | 76.00 |
H05BQ-F, H07BQ-F Black 17 | 4 x 0.75 300/500 V | 6.8-8.8 | 2.88 | 8.50 |
H05BQ-F, H07BQ-F Black 18 | 4 x 1 300/500 V | 7.1-9.3 | 3.80 | 10.00 |
H05BQ-F, H07BQ-F Black 19 | 4 x 1.50 450/750 V | 9.0-11.6 | 5.80 | 15.00 |
H05BQ-F, H07BQ-F Black 20 | 4 x 2.50 450/750 V | 10.7-13.8 | 9.60 | 23.00 |
H05BQ-F, H07BQ-F Black 21 | 4 x 4 450/750 V | 12.7-16.2 | 15.40 | 32.00 |
H05BQ-F, H07BQ-F Black 22 | 4 x 6 450/750 V | 14.2-18.1 | 23.00 | 49.50 |
H05BQ-F, H07BQ-F Black 23 | 4 x 10 450/750 V | 18.6-23.6 | 38.40 | 73.50 |
H05BQ-F, H07BQ-F Black 24 | 4 x 16 450/750 V | 21.3-27.0 | 61.40 | 118.50 |
H05BQ-F, H07BQ-F Black 25 | 5 x 0.75 300/500 V | 7.6-9.9 | 3.60 | 10.50 |
H05BQ-F, H07BQ-F Black 26 | 5 x 1 300/500 V | 8.0-10.3 | 4.80 | 12.00 |
H05BQ-F, H07BQ-F Black 27 | 5 x 1.50 450/750 V | 9.8-12.7 | 7.20 | 18.00 |
H05BQ-F, H07BQ-F Black 28 | 5 x 2.50 450/750 V | 11.9-15.3 | 12.00 | 28.00 |
H05BQ-F, H07BQ-F Black 29 | 5 x 4 450/750 V | 14.1-17.9 | 19.20 | 42.00 |
H05BQ-F, H07BQ-F Black 30 | 5 x 6 450/750 V | 15.7-20.0 | 28.80 | 58.50 |
H05BQ-F, H07BQ-F Black 31 | 5 x 10 450/750 V | 20.4-25.9 | 48.00 | 97.00 |
H05BQ-F, H07BQ-F Black 32 | 5 x 16 450/750 V | 23.7-30.0 | 76.80 | 147.50 |
H05BQ-F, H07BQ-F Black 33 | 6 x 1 300/500 V | 9.80 | 5.80 | 14.00 |
H05BQ-F, H07BQ-F Black 34 | 7 x 1.50 450/750 V | 12.00 | 10.10 | 22.00 |
H05BQ-F, H07BQ-F Black 35 | 7 x 2.50 450/750 V | 13.70 | 13.70 | 34.00 |
H05BQ-F, H07BQ-F Black 36 | 12 x 1.50 450/750 V | 18.80 | 17.30 | 34.00 |
