For the connection of light electric appliances with only small (H03VVH2-F) or medium (H05VVH2-F) mechanical stresses on them in households, kitchens and offices. The product corresponds to the directive 2006/95/EG (low voltage directive).

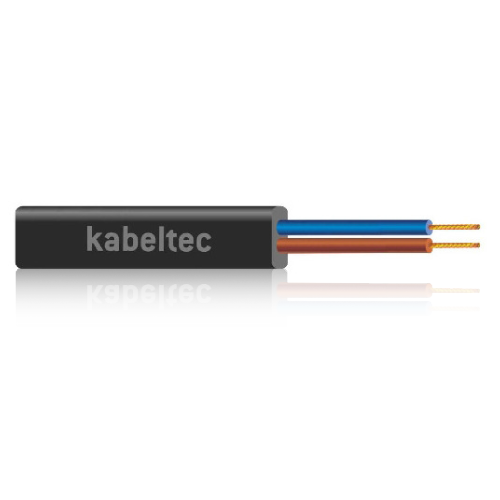

H03VVH2-F
PVC-Hose line/Plastics pipe
CONSTRUCTION:
- Bare, fine wire, bunch stranded, acc. to DIN VDE 0295 cl. 5
TECHNICAL DATA:
| Conductor Material: | Copper |
| Conductor class: | Class 5 |
| Core insulation: | PVC TI2 according to HD 21.1 S3 |
| Core identification: | acc. to DIN VDE 0293 |
| Stranding: | cores parallel, stranded |
| Outer sheath: | PVC TM2 corresponding to HD 21.1 S3 |
| Sheath colour: | |
| Rated voltage [V]: | 300/300 |
| Testing voltage [V]: | 2000 |
| Conductor resistance: | |
| Insulation resistance: | |
| Current carrying capacity: | |
| Min. bending radius fixed [xd] : | |
| Min. bending radius moved [xd]: | |
| Working temp fixed min/max [C]: | -40°C up to +70°C |
| Working temp moved min/mac [C]: | 5°C up to +70°C |
| Temp at conductor max.: | |
| Burning behaviour: | |
| Approvals: |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 671020075SW | 2 x 0.75 | 3.4x5.6 | 1.44 | 3.47 |
| 671020050SW | 2 x 0.50 | 3.1x5.1 | 0.96 | 2.7 |
| 671020050WS | 2 x 0.50 | 3.1x5.1 | 0.96 | 2.7 |
| 671020050GR | 2 x 0.50 | 3.1x5.1 | 0.96 | 2.7 |
| 671020075BL | 2 x 0.75 | 3.4x5.6 | 1.44 | 3.47 |
| 671020075SW | 2 x 0.75 | 3.4x5.6 | 1.44 | 3.47 |
| 671020075WS | 2 x 0.75 | 3.4x5.6 | 1.44 | 3.47 |
| 671020075GR | 2 x 0.75 | 3.4x5.6 | 1.44 | 3.47 |
| 671020075TR | 2 x 0.75 | 3.4x5.6 | 1.44 | 3.47 |
| 671120075GOLD | 2 x 0.75 | 3.4x5.6 | 1.44 | 3.47 |
| 671020075DBL | 2 x 0.75 | 3.4x5.6 | 1.44 | 3.47 |
