Suitable in dry areas where a low mechanical stress exists.

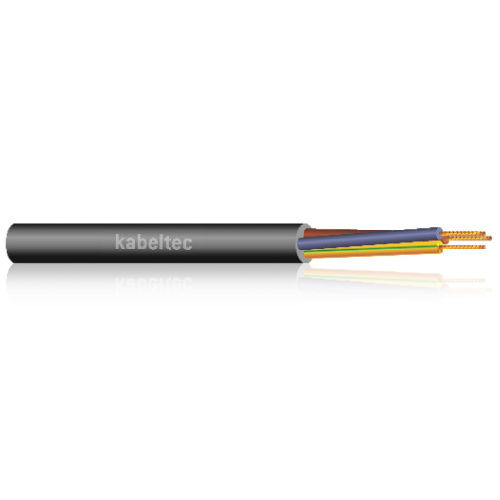

H03VV-F
PVC-According to DIN EN 50525-2-11 (VDE 0285-525-2-11)
CONSTRUCTION:
– fine copper strands
– PVC flame-retardant according to VDE 0207
– stranding acc. to VDE 0295 class 5
– PVC core insulation
– mark of conductors as per colour DIN VDE 0293, up to 7 conductors number coded
– cores twisted in layers
– earth conductor green/yellow
– PVC outer sheath in black, white, grey or in accordance to your desires
Technical Data:
| Conductor Material: | Copper, bare |
| Conductor class: | Class 5 |
| Core insulation: | PVCC |
| Core identification: | Colour code DIN VDE 0293 |
| Stranding: | Cores twisted in layers |
| Outer sheath: | PVC |
| Sheath colour: | Black, white, grey or in accordance to your desires |
| Rated voltage [V]: | 300 |
| Testing voltage [V]: | 2000 |
| Conductor resistance: | |
| Insulation resistance: | |
| Current carrying capacity: | |
| Min. bending radius fixed [xd]: | 3 x d |
| Min. bending radius moved [xd]: | 5 x d |
| Working temp fixed min/max [C]: | -40°C up to +50°C |
| Working temp moved min/mac [C]: | +5°C up to +50°C |
| Temp at conductor max.: | +60°C |
| Burning behaviour: | IEC 60332-1 |
| Approvals: | VDE 0281-5 |
| DIN EN 50525-2-11 (VDE 0285-525-2-11) | |
| VDE0482-3321-1-2 |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 86020050.00 | 2 x 0.50 schwarz | 5.00 | 0.96 | 3.50 |
| 860020050.00 | 2 x 0.50 grau | 5.00 | 0.96 | 3.50 |
| 861020050.00 | 2 x 0.50 weiss | 5.00 | 0.96 | 3.50 |
| 86020075.00 | 2 x 0.75 schwarz | 5.60 | 1.44 | 4.30 |
| 860020075.00 | 2 x 0.75 grau | 5.60 | 1.44 | 4.30 |
| 861020075.00 | 2 x 0.75 weiss | 5.90 | 2.16 | 5.30 |
| 86030075.00 | 3 x 0.75 schwarz | 5.90 | 2.16 | 5.30 |
| 860030075.00 | 3 x 0.75 grau | 5.90 | 2.16 | 5.30 |
| 861030075.00 | 3 x 0.75 weiss | 5.90 | 2.16 | 5.30 |
| 86040075.00 | 4 x 0.75 schwarz | 6.40 | 2.90 | 6.40 |
| 860040075.00 | 4 x 0.75 grau | 6.40 | 2.90 | 6.40 |
| 861040075.00 | 4 x 0.75 weiss | 6.50 | 2.90 | 6.40 |
