For installation in cabinets as well as for machine tool manufacturing and electronic. Particularly used in the Italian car industry.

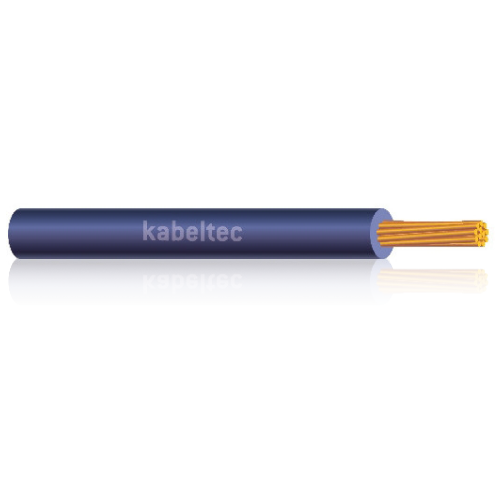

FS17 450/750V (formerly N05V-K/N07V-K)
According to italian standards
- Fine strands of bare copper wire in accordance to CEI 20-29 class 5
- PVC core insulation
- Bending radius 4-6 x Ø
- CPR fire class Cca-s3, d1,a3
TECHNICAL DATA:
Conductor Material: | Copper, bare |
Conductor class: | Class 5 |
Core insulation: | PVC, quality S17 |
Core identification: | |
Stranding: | |
Outer sheath: | |
Sheath colour: | black, blue, brown, grey, orange, pink, red, light blue, |
violet, white, yellow/green | |
Rated voltage [V]: | 450/750 |
Testing voltage [V]: | 3000 |
Conductor resistance: | |
Insulation resistance: | |
Current carrying capacity: | |
Min. bending radius fixed [xd]: | OD 20mm 4xd |
Min. bending radius moved [xd]: | OD 200mm 6xd |
Working temp fixed min/max [C]: | -5°C up to +70°C |
Working temp moved min/max [C]: | -5°C up to +70°C |
Temp at conductor max.: | +70°C in operation +160°C in case of short-circuit |
Burning behaviour: | IEC 60332-1-2: flame-retardant and self-extinguishing |
Approvals: | CEI 20-14 CEI UNEL 35716-35016 CEI EN 50525 |
EN 50575:2014+ EN 50575/A1:2016 |
PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
---|---|---|---|---|
36..0100 | 1 x 1 | 3.0 | 1.0 | 1.7 |
36..0150 | 1 x 1.50 | 3.4 | 1.4 | 2.1 |
36..0250 | 1 x 2.50 | 4.1 | 2.4 | 3.3 |
36..0400 | 1 x 4 | 4.8 | 3.8 | 4.8 |
36..0600 | 1 x 6 | 5.3 | 5.8 | 6.6 |
36..1000 | 1 x 10 | 6.8 | 9.6 | 11.2 |
36..1600 | 1 x 16 | 8.7 | 15.4 | 16.4 |
36..2500 | 1 x 25 | 10.2 | 24.0 | 25.0 |
36..3500 | 1 x 35 | 11.7 | 33.6 | 34.0 |
36..5000 | 1 x 50 | 13.9 | 48.0 | 48.5 |
36..7000 | 1 x 70 | 16.0 | 67.2 | 67.4 |
36..9500 | 1 x 95 | 18.2 | 91.2 | 89.4 |
36..12000 | 1 x 120 | 20.2 | 115.2 | 111.0 |
36..15000 | 1 x 150 | 22.5 | 144.0 | 140.0 |
36..118500 | 1 x 185 | 24.9 | 0.0 | 170.0 |
36..124000 | 1 x 240 | 28.4 | 0.0 | 223.0 |
