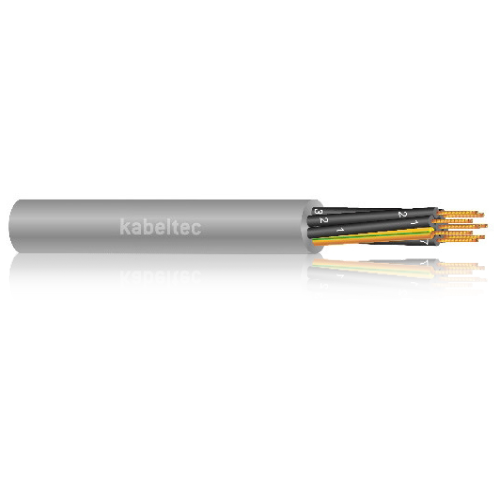

FROR

Flexible PVC insulated cable with PVC sheath, suited for control fire retardant emittius, emitting a low quantity of corrosive gas.

TOTAL PRICE

SGD 0.00

Due to it´s fire retardant characteristics insulation grade 3 (rated voltage 450/750), this cable is suitable for fixed or mobile connections in places where the risk of explosion or fire is high, in compliance with the Italian Norm CEI 64-2. It is advisable to use this cable in public show and entertaiment areas (fair stands, exhibitions, theatres etc) and in civil buildings (banks, offices, collective dwellings, schools, handcraft laboratories, shops, hospitals, clinics, hotels etc). Direct laying under plaster or underground is not admitted, even if protected.

  • Conductor: Flexible cord in plain copper
  • Insulation: PVC Insulation in TI2 quality
  • Sheath: PVC sheath in TM2 quality
  • Max strain in static duty conditions: 1,5Kg/mm2. Flame and fire retardant. Low emission of halogenidric acids. RoHS 2011/65/UE
  • Flexible conductor, class 5 copper made
  • Not fibrous and not hygroscopic
  • Standards: IMQ-CPT-007 CEI 20-20/1 CEI 20-22 II CEI EN 60332-1-2 CEI EN 50267-2-1

TECHNICAL DATA:

Conductor Material:  *
Conductor class:  Class 5 (HD 383)
Core insulation:  PVC, TI2 quality
Core identification:  Multicores: black with numbers and Y/G
Stranding:  *
Outer sheath:  Thermoplatsic polyvinyl chloride compound type TM2.
 Protective sheath of cables usually used for mobile
 connections, even in wet enviroments and for fireretardant   cables.
Sheath colour:  Light grey RAL 7035
Rated voltage [V]:  300 / 500; 450 / 750
Testing voltage [V]: 2000
Conductor resistance:  *
Insulation resistance:  *
Current carrying capacity:  *
Min. bending radius fixed [xd]:  *
Min. bending radius moved [xd]:  *
Working temp fixed min/max [C]:  -10°C up to +70
Working temp moved min/max [C]:  -5°C up to +70
Temp at conductor max.:  +70°C; +160°C
Burning behaviour:  *
Approvals:  *

PART NUMBER CORES OUTER DIAMETER COPPER WEIGHT
KG/100M
WEIGHT
KG/100M
2 x 1 8.7 7.4
2 x 1.50 9.2 8.9
2 x 2.50 11.2 13.4
2 x 4 12.5 17.8
2 x 6 13.9 24.2
3 x 1 9.1 8.8
3 x 1.50 9.8 10.8
3 x 2.50 11.9 16.3
3 x 4 13.5 22.7
3 x 6 14.9 30.5
4 x 1 9.9 10.5
4 x 1.50 10.9 13.3
4 x 2.50 12.9 20
4 x 4 14.7 27.8
4 x 6 16.3 37.5
5 x 1 11.1 13.5
5 x 1.50 12 16.7
5 x 2.50 14.3 25.2
5 x 4 16.3 35.1
5 x 6 18 47.6
7 x 1 11.1 16.3
7 x 1.50 13.1 21.7
7 x 2.50 13.7 33.5
10 x 1 14.3 23
10 x 1.50 16.7 30.9
10 x 2.50 16.8 45.9
12 x 1 14.8 26.9
12 x 1.50 17.5 37
12 x 2.50 18 54.9
14 x 1 15.1 34.6
14 x 1.50 17.2 46.6
14 x 2.50 20.3 67.9
16 x 1 16.5 39
16 x 1.50 19.4 52.5
16 x 2.50 21.5 76.5
19 x 1 17.7 45
19 x 1.50 20.5 59.5
19 x 2.50 22.6 87.3
24 x 1 20.7 55.9
24 x 1.50 24.3 75.3
24 x 2.50 26.6 100.2
27 x 1 21.4 61.7
27 x 1.50 25 82
27 x 2.50 27.2 120.5
