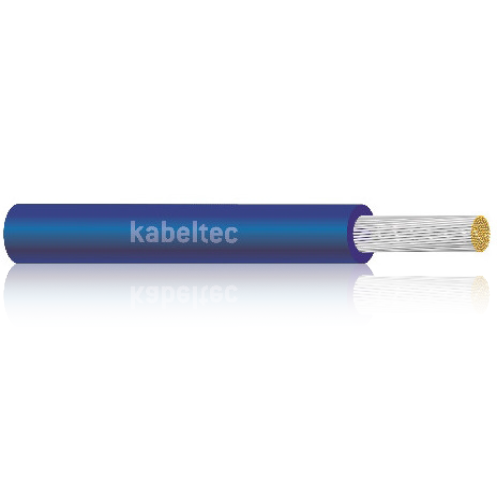

FLKF_LIFY

FLKF,LIFY

High flexible single core
TOTAL PRICE

SGD 0.00

As high flexible single core in mobile constructions, as in building of cabinets, as measuring cable, in tests, etc.

CONSTRUCTION:

– fine stranding of bare copper conductor
– soft PVC-isolation
– special twisted
– high flexible single core due to the special stranding
– flame-retardant

Technical Data:

Conductor Material:  Copper, Bare
Conductor class:  Class 6
Core insulation:  PVC
Core identification:  Single-coloured
Stranding:  Special twisted
Outer sheath:
Sheath colour:
Rated voltage [V]:  up to 1mm² 300/500V from 1,5mm² on 450/750V
Testing voltage [V]:  3000
Conductor resistance:  Acc. to DIN VDE 0295
Insulation resistance:  min. 20 MΩ x km
Current carrying capacity:  DIN VDE (see technical guidelines)
Min. bending radius fixed [xd]:  6 x d
Min. bending radius moved [xd]:  10 x d
Working temp fixed min/max [C]:  -5°C up to +70°C
Working temp moved min/max [C]:  -30°C up to +70°C
Temp at conductor max.:
Burning behaviour:
Approvals:  VDE 0472 and 0682 IEC 332-1

PART NUMBER CORES OUTER DIAMETER COPPER WEIGHT
KG/100M		 WEIGHT
KG/100M
16..0004 1 x 0.04 0.60 0.04 0.18
16..0010 1 x 0.10 1.00 0.10 0.21
16..0014 1 x 0.14 1.10 0.14 0.26
16..0025 1 x 0.25 1.40 0.25 0.38
16..0050 1 x 0.50 2.10 0.50 0.80
16..0075 1 x 0.75 2.30 0.80 1.20
16..0100 1 x 1 2.60 1.00 1.80
16..0150 1 x 1.50 3.00 1.50 2.20
16..0250 1 x 2.50 3.80 2.50 3.70
16..0400 1 x 4 4.90 4.00 5.00
16..0600 1 x 6 6.00 6.00 7.10
16..1000 1 x 10 7.40 10.00 13.00
16..1600 1 x 16 8.90 16.00 18.70
16..2500 1 x 25 10.50 25.00 29.40
16..3500 1 x 35 12.50 35.00 38.00
16..5000 1 x 50 14.70 49.50 52.10
16..7000 1 x 70 15.50 69.00 74.00
16..9500 1 x 95 19.00 94.00 98.00
16..12000 1 x 120 21.50 118.00 120.00
