FLEX-SY-JZ/OZ

Flexible, number coded with steel wire braid

TOTAL PRICE

SGD 0.00

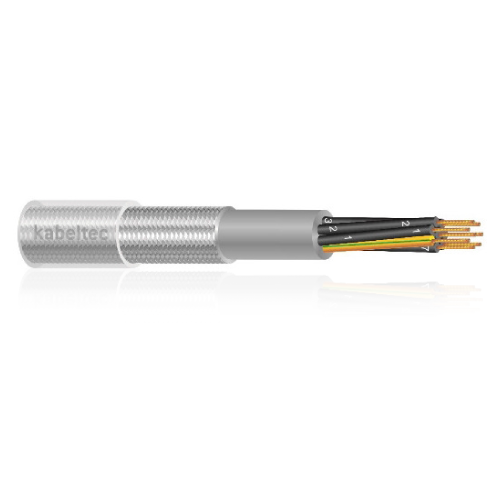

Power control cable with galvanized steel wire braiding. Suitable for fixed installation or flexible applications. Used as measuring, power and control cable in machine tool manufacturing, plant engineering, on assembly lines and production lines.

For unrestricted mobility without forced movement control and without exposure to tensile load. Used as energy or connecting cable in dry and moist rooms to meet stringent safety requirements, outdoor installation is not permitted. Due to the galvanized steel wire braiding, these cables can even be used under adverse operating conditions or when exposed to high mechanical strain. Largely oil resistant.

CONSTRUCTION:

  • Fine strands of bare copper wire
  • Stranding acc. to VDE 0295 class 5
  • PVC core insulation black with continuous white figure imprint
  • Earth conductor green/yellow in the outer layer
  • Cores twisted in layers
  • PVC inner sheath
  • Overall screen made of galvanized steel wire
  • PVC outer sheath transparent

TECHNICAL DATA:

Conductor Material: Copper, bare
Conductor class: Class 5 acc. to DIN VDE 0295 or IEC 60228
Core insulation: PVC
Core identification: DIN VDE 0295: Black cores with white numerals Kabeltec colour code
Stranding: Cores twisted in layers
Outer sheath: PVC
Sheath colour: Transparent
Rated voltage [V]: 300/500
Testing voltage [V]: 4000
Conductor resistance:
Insulation resistance: 20 MΩ x km
Current carrying capacity: DIN VDE (see technical guidelines)
Min. bending radius fixed [xd : 6xd
Min. bending radius moved [xd]: 15xd
Working temp fixed min/max [C]: -40°C up to +80°C
Working temp moved min/mac [C]: -5°C up to +70°C
Temp at conductor max.: + 70°C in operation, +150°C in case of short-circuit
Burning behaviour: IEC 60332-1-2: flame-retardant and self-extinguishing
Approvals: VDE 7030

PART NUMBER CORES OUTER DIAMETER COPPER WEIGHT
KG/100M
WEIGHT
KG/100M
12020050.00 2 x 0.50 OZ 7.00 0.96 8.70
12020075.00 2 x 0.75 OZ 7.90 1.44 9.70
12020100.00 2 x 1 OZ 8.40 1.92 10.60
12020150.00 2 x 1.50 OZ 9.10 2.90 12.80
12020250.00 2 x 2.50 OZ 10.40 4.80 16.50
12030050.00 3 x 0.50 7.50 1.44 9.50
12030075.00 3 x 0.75 8.10 2.16 10.80
12030100.00 3 x 1 8.60 2.88 11.90
12030150.00 3 x 1.50 9.50 4.30 15.10
12030250.00 3 x 2.50 11.50 7.20 20.60
12030400.00 3 x 4 12.60 11.70 28.50
12030600.00 3 x 6 15.70 17.30 42.00
12031000.00 3 x 10 19.90 28.80 65.50
12031600.00 3 x 16 22.90 46.10 99.30
12040050.00 4 x 0.50 7.90 1.92 10.70
12040075.00 4 x 0.75 8.70 2.88 13.40
12040100.00 4 x 1 9.20 3.84 14.10
12040150.00 4 x 1.50 10.10 5.80 17.30
12040250.00 4 x 2.50 12.40 9.60 24.90
12040400.00 4 x 4 14.10 15.40 34.80
12040600.00 4 x 6 16.50 23.00 48.20
12041000.00 4 x 10 20.20 38.40 78.30
12041600.00 4 x 16 23.00 61.40 138.40
12042500.00 4 x 25 31.00 96.00 172.00
12043500.00 4 x 35 36.00 134.40 227.60
12045000.00 4 x 50 42.50 192.00 330.00
12047000.00 4 x 70 52.40 268.80 441.10
12049500.00 4 x 95 57.60 364.80 523.70
12050050.00 5 x 0.50 8.70 2.40 12.30
12050075.00 5 x 0.75 9.50 3.60 14.60
12050100.00 5 x 1 10.10 4.80 16.40
12050150.00 5 x 1.50 11.00 7.20 20.20
12050250.00 5 x 2.50 13.10 12.00 29.50
12050400.00 5 x 4 16.00 19.20 41.00
12050600.00 5 x 6 17.70 28.80 57.90
12051000.00 5 x 10 22.60 48.00 94.50
12051600.00 5 x 16 25.90 76.80 174.00
12052500.00 5 x 25 36.50 120.00 213.00
12053500.00 5 x 35 40.70 168.00 278.90
12070050.00 7 x 0.50 10.00 3.36 14.70
12070075.00 7 x 0.75 10.50 5.20 17.20
12070100.00 7 x 1 11.30 6.70 20.00
12070150.00 7 x 1.50 12.00 10.10 24.80
12070250.00 7 x 2.50 14.70 16.80 37.30
12070400.00 7 x 4 16.90 26.90 51.90
12070600.00 7 x 6 19.50 40.30 74.00
12071000.00 7 x 10 24.70 67.20 129.90
12071600.00 7 x 16 29.00 107.50 185.30
12080100.00 8 x 1 12.10 7.70 23.00
12080150.00 8 x 1.50 12.60 11.50 30.10
12090075.00 9 x 0.75 11.90 6.50 22.40
12090100.00 9 x 1 13.20 8.60 26.00
12090150.00 9 x 1.50 13.20 13.00 30.50
12100050.00 10 x 0.50 11.10 4.80 19.60
12100075.00 10 x 0.75 12.30 7.20 22.20
12100150.00 10 x 1.50 14.50 14.40 35.80
12120050.00 12 x 0.50 11.60 5.80 21.80
12120075.00 12 x 0.75 12.90 8.60 26.30
12120100.00 12 x 1 13.80 11.50 30.90
12120150.00 12 x 1.50 15.40 17.30 39.60
12120250.00 12 x 2.50 18.70 28.80 58.60
12140050.00 14 x 0.50 12.00 6.90 24.20
12140100.00 14 x 1 14.20 15.40 34.50
12140150.00 14 x 1.50 16.60 20.20 43.80
12140250.00 14 x 2.50 19.90 33.60 65.30
12150075.00 15 x 0.75 14.10 10.80 31.50
12180050.00 18 x 0.50 13.50 8.60 29.10
12180075.00 18 x 0.75 14.70 13.00 35.50
12180100.00 18 x 1 15.90 17.30 42.00
12180150.00 18 x 1.50 17.60 25.90 53.80
12180250.00 18 x 2.50 21.10 43.20 82.30
12200100.00 20 x 1 16.60 19.20 49.20
12210050.00 21 x 0.50 15.20 10.10 33.70
12210075.00 21 x 0.75 16.50 15.10 42.40
12250050.00 25 x 0.50 16.00 12.00 37.50
12250075.00 25 x 0.75 17.40 18.00 46.50
12250100.00 25 x 1 18.30 24.00 54.80
12250150.00 25 x 1.50 20.40 36.00 71.30
12250250.00 25 x 2.50 25.30 60.00 109.30
12300050.00 30 x 0.50 16.50 14.40 43.90
12300250.00 30 x 2.50 30.00 72.00 168.60
12320150.00 32 x 1.50 25.10 46.10 101.50
12340075.00 34 x 0.75 19.70 24.50 59.60
12340100.00 34 x 1 20.70 32.60 73.90
12340150.00 34 x 1.50 23.40 49.00 94.40
12340250.00 34 x 2.50 33.10 81.60 186.90
12340050.00 35 x 0.50 17.90 16.30 50.00
12360100.00 36 x 1 23.00 34.60 85.70
12400050.00 40 x 0.50 19.00 19.20 56.50
12410075.00 41 x 0.75 21.60 29.60 74.10
12410100.00 41 x 1 25.00 39.40 99.30
12420150.00 42 x 1.50 27.00 61.50 121.20
12500075.00 50 x 0.75 24.00 36.00 92.50
12500100.00 50 x 1 25.40 48.00 111.20
12500150.00 50 x 1.50 28.00 72.00 139.30
12500250.00 50 x 2.50 39.40 120.00 220.00
12520050.00 52 x 0.50 20.70 24.00 69.00
12560100.00 56 x 1 26.00 53.80 122.50
12610050.00 61 x 0.50 23.10 29.30 84.30
12610075.00 61 x 0.75 25.40 43.90 108.20
12610100.00 61 x 1 27.20 58.60 130.60
12610150.00 61 x 1.50 31.80 87.80 181.00
12610250.00 61 x 2.50 41.50 146.40 300.00
12650100.00 65 x 1 28.40 62.40 154.00
12800050.00 80 x 0.50 25.70 38.40 105.00
12800100.00 80 x 1 30.90 78.60 175.00
12800150.00 80 x 1.50 36.40 115.20 231.60
121000100.00 100 x 1 35.20 96.00 195.00
121000150.00 100 x 1.50 41.40 144.00 290.00
