Power control cable with galvanized steel wire braiding. Suitable for fixed installation or flexible applications. Used as measuring, power and control cable in machine tool manufacturing, plant engineering and on assembly lines and production lines. For unrestricted mobility without forced movement control and without exposure to tensile load. Used as energy or connecting cable in dry and moist rooms to meet stringent safety requirements outdoor installation is not permitted. Due to the galvanized steel wire braiding, these cables can even be used under adverse operating conditions or when exposed to high mechanical strain.

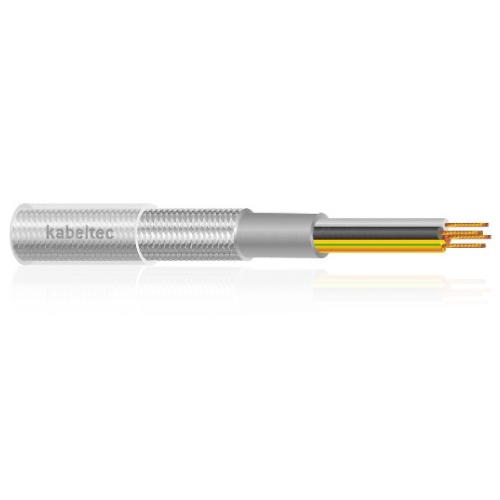

FLEX-SY-JB/OB
Flexible, colour coded with steel wire braid
CONSTRUCTION:
- Fine strands of bare copper wire
- Stranding, fine wires acc. to VDE 0295 class 5
- PVC insulation, coloured cores acc. to JB/OB
- Earth conductor green/yellow
- PVC inner sheath
- Overall screen made of galvanized steel wire
- PVC outer sheath transparent
TECHNICAL DATA:
| Conductor Material: | Copper, bare |
| Conductor class: | Class 5 acc. to DIN VDE 0295 or IEC 60228 |
| Core insulation: | PVC |
| Core identification: | Up to 5 cores acc. to DIN VDE 0293-308 From 6 cores Kabeltec colour code |
| Stranding: | Cores twisted in layers |
| Outer sheath: | PVC |
| Sheath colour: | Transparent |
| Rated voltage [V]: | 300/500 |
| Testing voltage [V]: | 4000 |
| Conductor resistance: | |
| Insulation resistance: | 20 MΩ x km |
| Current carrying capacity: | DIN VDE (see technical guidelines) |
| Min. bending radius fixed [xd : | 6xd |
| Min. bending radius moved [xd]: | 15xd |
| Working temp fixed min/max [C]: | -40°C up to +80°C |
| Working temp moved min/mac [C]: | -5°C up to +70°C |
| Temp at conductor max.: | + 70°C in operation, +150°C in case of short-circuit |
| Burning behaviour: | IEC 60332-1: flame-retardant and self-extinguishing |
| Approvals: | IEC 60227-5 and EN 50525-2-11 |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 120020050.00 | 2 x 0.50 | 7.00 | 1.00 | 8.00 |
| 120020075.00 | 2 x 0.75 | 8.20 | 1.50 | 9.80 |
| 120020100.00 | 2 x 1 | 8.40 | 1.92 | 11.20 |
| 120020150.00 | 2 x 1.50 | 9.10 | 2.90 | 14.60 |
| 120020250.00 | 2 x 2.50 | 10.80 | 4.80 | 18.50 |
| 120020400.00 | 2 x 4 OB | 12.50 | 7.70 | 33.00 |
| 120030050.00 | 3 x 0.50 | 7.50 | 1.50 | 9.20 |
| 120030075.00 | 3 x 0.75 | 8.50 | 2.20 | 11.00 |
| 120030100.00 | 3 x 1 | 8.80 | 2.90 | 13.20 |
| 120030150.00 | 3 x 1.50 | 9.80 | 4.30 | 15.70 |
| 120030250.00 | 3 x 2.50 | 12.50 | 7.20 | 21.30 |
| 120030400.00 | 3 x 4 | 12.90 | 11.50 | 36.30 |
| 120030600.00 | 3 x 6 | 15.50 | 17.30 | 45.00 |
| 120040050.00 | 4 x 0.50 | 7.90 | 1.92 | 10.20 |
| 120040075.00 | 4 x 0.75 | 9.20 | 2.90 | 12.50 |
| 120040100.00 | 4 x 1 | 9.50 | 3.84 | 14.30 |
| 120040150.00 | 4 x 1.50 | 10.80 | 5.80 | 18.50 |
| 120040250.00 | 4 x 2.50 | 13.40 | 9.60 | 25.30 |
| 120040400.00 | 4 x 4 | 14.00 | 15.40 | 42.80 |
| 120040600.00 | 4 x 6 | 18.00 | 23.00 | 49.50 |
| 120041000.00 | 4 x 10 | 20.00 | 38.40 | 115.30 |
| 120041600.00 | 4 x 16 | 22.90 | 61.40 | 136.00 |
| 120042500.00 | 4 x 25 | 28.90 | 96.00 | 202.00 |
| 120043500.00 | 4 x 35 | 32.40 | 134.40 | 257.00 |
| 120045000.00 | 4 x 50 | 38.80 | 192.00 | 351.30 |
| 120047000.00 | 4 x 70 | 43.70 | 268.80 | 481.00 |
| 120049500.00 | 4 x 95 | 50.40 | 364.80 | 636.00 |
| 120050050.00 | 5 x 0.50 | 9.20 | 2.40 | 11.90 |
| 120050075.00 | 5 x 0.75 | 9.70 | 3.60 | 14.40 |
| 120050100.00 | 5 x 1 | 10.10 | 4.80 | 16.60 |
| 120050150.00 | 5 x 1.50 | 11.20 | 7.20 | 20.50 |
| 120050250.00 | 5 x 2.50 | 14.50 | 12.00 | 30.10 |
| 120050400.00 | 5 x 4 | 15.50 | 19.20 | 50.40 |
| 120050600.00 | 5 x 6 | 19.20 | 28.80 | 59.20 |
| 120051000.00 | 5 x 10 | 21.90 | 48.00 | 135.20 |
| 120051600.00 | 5 x 16 | 25.50 | 76.80 | 174.00 |
| 120052500.00 | 5 x 25 | 31.80 | 120.00 | 246.50 |
| 120053500.00 | 5 x 35 | 36.00 | 168.00 | 318.50 |
| 120055000.00 | 5 x 50 | 43.20 | 240.00 | 424.80 |
| 120057000.00 | 5 x 70 | 51.80 | 336.00 | 588.00 |
| 120059500.00 | 5 x 95 | 56.30 | 456.00 | 807.10 |
| 120060075.00 | 6 x 0.75 | 10.80 | 4.32 | 18.00 |
| 120060100.00 | 6 x 1 | 11.80 | 5.80 | 22.00 |
| 120060150.00 | 6 x 1.50 | 12.50 | 8.70 | 25.50 |
| 120070050.00 | 7 x 0.50 | 10.00 | 3.40 | 14.70 |
| 120070075.00 | 7 x 0.75 | 10.30 | 5.00 | 17.10 |
| 120070100.00 | 7 x 1 | 11.00 | 6.70 | 20.10 |
| 120070150.00 | 7 x 1.50 | 13.20 | 10.10 | 28.50 |
| 120070250.00 | 7 x 2.50 | 15.50 | 16.80 | 42.00 |
| 120070400.00 | 7 x 4 | 16.60 | 26.90 | 64.00 |
| 120070600.00 | 7 x 6 | 19.20 | 40.30 | 84.50 |
| 120071000.00 | 7 x 10 | 24.20 | 67.20 | 155.10 |
| 120071600.00 | 7 x 16 | 28.00 | 107.50 | 216.60 |
| 120080100.00 | 8 x 1 | 13.60 | 7.70 | 27.70 |
| 120080150.00 | 8 x 1.50 | 14.60 | 11.50 | 34.00 |
| 120090075.00 | 9 x 0.75 | 12.30 | 6.50 | 24.90 |
| 120100050.00 | 10 x 0.50 | 11.60 | 4.80 | 20.50 |
| 120100075.00 | 10 x 0.75 | 12.60 | 7.20 | 25.20 |
| 120100100.00 | 10 x 1 | 14.00 | 9.60 | 31.50 |
| 120120050.00 | 12 x 0.50 | 11.90 | 5.80 | 21.30 |
| 120120075.00 | 12 x 0.75 | 12.90 | 8.60 | 26.00 |
| 120120100.00 | 12 x 1 | 13.90 | 11.50 | 32.20 |
| 120120150.00 | 12 x 1.50 | 16.50 | 17.30 | 44.40 |
| 120120250.00 | 12 x 2.50 | 18.20 | 28.80 | 65.00 |
| 120140050.00 | 14 x 0.50 | 12.00 | 6.70 | 24.20 |
| 120140150.00 | 14 x 1.50 | 17.60 | 20.20 | 53.30 |
| 120150075.00 | 15 x 0.75 | 14.60 | 10.80 | 33.50 |
| 120160050.00 | 16 x 0.50 | 12.80 | 7.70 | 30.60 |
| 120180075.00 | 18 x 0.75 | 15.60 | 13.00 | 38.80 |
| 120180100.00 | 18 x 1 | 17.80 | 17.30 | 50.00 |
| 120180150.00 | 18 x 1.50 | 19.80 | 25.90 | 59.30 |
| 120200100.00 | 20 x 1 | 18.30 | 19.20 | 53.20 |
| 120210050.00 | 21 x 0.50 | 15.20 | 10.10 | 34.00 |
| 120210075.00 | 21 x 0.75 | 17.30 | 15.10 | 47.40 |
| 120240050.00 | 24 x 0.50 | 15.60 | 11.50 | 40.50 |
| 120250075.00 | 25 x 0.75 | 18.00 | 18.00 | 50.30 |
| 120250100.00 | 25 x 1 | 20.80 | 24.00 | 66.40 |
| 120250150.00 | 25 x 1.50 | 22.30 | 36.00 | 78.10 |
| 120270050.00 | 27 x 0.50 | 17.10 | 13.00 | 46.70 |
| 120320075.00 | 32 x 0.75 | 19.60 | 23.00 | 64.40 |
| 120320150.00 | 32 x 1.50 | 25.10 | 46.10 | 101.50 |
| 120400050.00 | 40 x 0.50 | 19.00 | 19.20 | 56.50 |
| 120610075.00 | 61 x 0.75 | 25.40 | 43.90 | 108.20 |
