Halogen-free, flame retardant power control cable with improved properties in case of fire. Suitable for fixed or flexible applications. Suitable for use as energy, power, control or connecting cable to meet stringent safety requirements. Installation in dry and moist rooms and for limited outdoor applications. Pronounced advantages in comparance to a PVC control cable (e.g. Flex-JZ).:
Low fire load
Low smoke emission
Reduced fire propagation

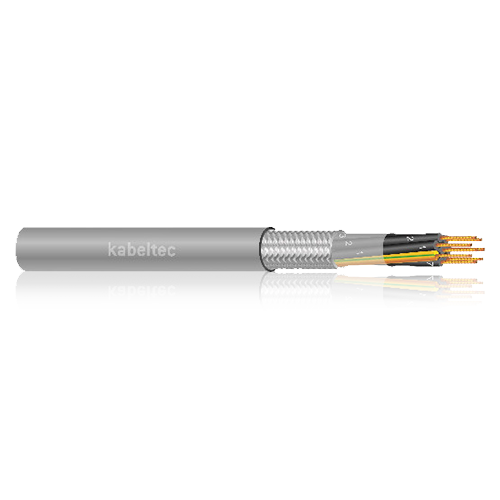

FLEX-(ST)CH EMC
Halogen-free control cable, EMC Screen, UV-Resistant
CONSTRUCTION:
- Fine strands of bare copper conductor EN 60228 cl. 5
- Cores black with continuous white figure imprint
- Core insulation: halogen-free compound
- Stranding acc. to VDE 0295 class 5
- Earth conductor green/yellow
- Cores twisted in layers
- Electrostatic screen made of aluminium backed poliester tape (aluminium side up)
- opper screen braiding of tinned copper wires, 65% coverage
- Outer sheath: halogen-free compound grey, self-extinguishing, flame retardant, uv-resistant
TECHNICAL DATA:
| Conductor Material | Copper, bare |
| Conductor class | Class 5 according VDE 0295 resp IEC 60228 |
| Core insulation | Halogen-free compound |
| Core identification | Acc. to DIN VDE 0293: Black cores with consecutive white numerals |
| Stranding | Cores twisted in layers |
| Outer sheath | Halogen-free compound |
| Sheath colour | Grey (RAL 7001) |
| Rated voltage [V] | 300 / 500 |
| Testing voltage [V] | 3000 |
| Conductor resistance | * |
| Insulation resistance | min. 20 MΩ x km |
| Current carrying capacity | DIN VDE (s. technical guidelines) |
| Min. bending radius fixed [xd] | 6 x d |
| Min. bending radius moved [xd] | 12 x d |
| Working temp fixed min/max [C] | -40°C up to +80 |
| Working temp moved min/mac [C] | -15°C up to +70 |
| Temp at conductor max. | * |
| Burning behaviour | VDE 0482-332-1-1: halogen-free und highly flameretardant; IEC-60332-3 |
| Approvals |
Flame propagation test for a single insulated cable: EN 60332-1-2 (EN-50265-1), IEC 60332-1 Corrosive gases emitted during burning: EN 50267, IEC 60754-1, EN 60754-2 Smoke density emission during burning: EN 50268-1(-2), IEC 61034-1(-2), EN 61034-2
|
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 244020075.00 | 2 x 0.75 | 6.00 | 2.10 | 5.20 |
| 244020100.00 | 2 x 1 | 6.30 | 2.60 | 5.90 |
| 244020150.00 | 2 x 1.5 | 7.30 | 3.60 | 7.90 |
| 244030075.00 | 3 x 0.75 | 6.30 | 2.80 | 6.00 |
| 244030100.00 | 3 x 1 | 6.80 | 3.60 | 7.30 |
| 244030150.00 | 3 x 1.5 | 7.70 | 5.10 | 9.50 |
| 244030250.00 | 3 x 2.5 | 9.50 | 8.20 | 18.20 |
| 244040075.00 | 4 x 0.75 | 7.10 | 3.60 | 7.70 |
| 244040100.00 | 4 x 1 | 7.50 | 4.60 | 9.20 |
| 244040150.00 | 4 x 1.5 | 8.40 | 6.80 | 11.80 |
| 244040250.00 | 4 x 2.5 | 10.40 | 10.70 | 19.50 |
| 244040400.00 | 4 x 4 | 12.30 | 16.70 | 27.80 |
| 244040600.00 | 4 x 6 | 13.80 | 24.60 | 39.00 |
| 244041000.00 | 4 x 10 | 16.90 | 40.20 | 59.40 |
| 244041600.00 | 4 x 16 | 19.60 | 71.00 | 84.30 |
| 244050075.00 | 5 x 0.75 | 7.60 | 4.40 | 9.10 |
| 244050100.00 | 5 x 1 | 8.00 | 5.60 | 10.70 |
| 244050150.00 | 5 x 1.5 | 9.70 | 8.20 | 16.00 |
| 244050250.00 | 5 x 2.5 | 11.30 | 13.20 | 22.60 |
| 244070075.00 | 7 x 0.75 | 8.20 | 5.90 | 11.30 |
| 244070100.00 | 7 x 1 | 8.60 | 7.70 | 13.40 |
| 244070150.00 | 7 x 1.5 | 10.40 | 11.20 | 19.70 |
| 244070250.00 | 7 x 2.5 | 12.30 | 18.10 | 28.50 |
| 244120075.00 | 12 x 0.75 | 11.00 | 9.90 | 19.60 |
| 244120100.00 | 12 x 1 | 11.90 | 12.90 | 23.70 |
| 244120150.00 | 12 x 1.5 | 13.70 | 18.80 | 32.30 |
| 244120250.00 | 12 x 2.5 | 16.40 | 30.60 | 47.60 |
| 244180075.00 | 18 x 0.75 | 12.90 | 14.40 | 27.80 |
| 244180100.00 | 18 x 1 | 13.90 | 18.90 | 33.60 |
| 244180150.00 | 18 x 1.5 | 16.20 | 27.70 | 46.80 |
| 244180250.00 | 18 x 2.5 | 19.20 | 45.40 | 68.20 |
| 244250075.00 | 25 x 0.75 | 15.30 | 19.70 | 37.70 |
| 244250100.00 | 25 x 1 | 16.70 | 25.80 | 46.40 |
| 244250150.00 | 25 x 1.5 | 19.30 | 38.20 | 63.60 |
| 244250250.00 | 25 x 2.5 | 22.90 | 64.10 | 92.70 |
