For use in control circuits, measuring and also in power circuits, in the automation industry, in assembly lines, production lines, etc. Suitable in drag chains and where fast and abrupt movements exist.
FLEX-PU-EF

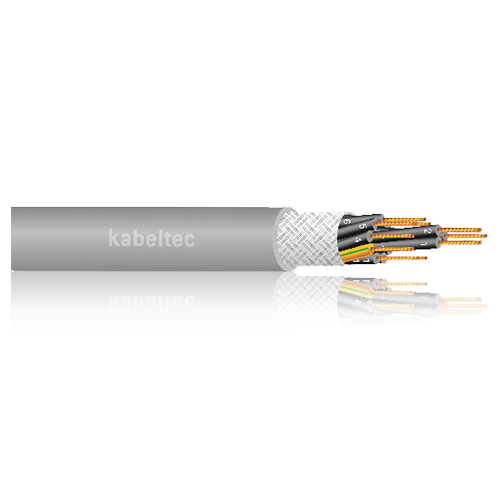

High flexible PUR control cable
- CONSTRUCTION:
- Superfine strands of bare copper wire
- Stranding acc. to VDE 0295 class 6
- PVC core insulation, black cores, numbered
- Earth conductor green/yellow in other layer
- Textile wrapped
- Twisted in layers
- PUR outer sheath grey, RAL 7001 acc. to VDE 0207
- Microbe-resistant and hydrolysis resistant, flame-retardant, largely oil resistant
Technical Data:
| Conductor Material: | Copper, bare |
| Conductor class: | Class 6 |
| Core insulation: | PVC |
| Core identification: | black numbered with earth |
| Stranding: | Twisted in layers |
| Outer sheath: | PUR |
| Sheath colour: | Grey (RAL 7001) |
| Rated voltage [V]: | 300 / 500 |
| Testing voltage [V]: | 4000 |
| Conductor resistance: | – |
| Insulation resistance: | > 20 MΩ x cm |
| Current carrying capacity: | – |
| Min. bending radius fixed [xd]: | 4 x d |
| Min. bending radius moved [xd]: | 7,5 x d |
| Working temp fixed min/max [C]: | -40°C up to +80°C |
| Working temp moved min/mac [C]: | -5°C up to +70°C |
| Temp at conductor max.: | |
| Burning behaviour: | IEC 60332-1-2: flame-retardant and self-extinguishing |
| Approvals: | VDE 0245/0285 |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 273020050.00 | 2 x 0.50 OZ | 5.40 | 0.96 | 3.40 |
| 273020075.00 | 2 x 0.75 OZ | 6.00 | 1.44 | 4.30 |
| 273020100.00 | 2 x 1 OZ | 6.70 | 1.92 | 5.00 |
| 273020150.00 | 2 x 1.50 OZ | 7.80 | 2.90 | 6.70 |
| 273030050.00 | 3 x 0.50 | 5.70 | 1.44 | 4.10 |
| 273030075.00 | 3 x 0.75 | 6.30 | 2.16 | 5.10 |
| 273030100.00 | 3 x 1 | 7.00 | 2.90 | 6.40 |
| 273030150.00 | 3 x 1.50 | 8.20 | 4.30 | 8.30 |
| 273030250.00 | 3 x 2.50 | 9.70 | 7.20 | 15.70 |
| 273030400.00 | 3 x 4 | 12.50 | 11.52 | 22.40 |
| 273030600.00 | 3 x 6 | 14.40 | 17.30 | 32.80 |
| 273031000.00 | 3 x 10 | 17.30 | 28.80 | 50.80 |
| 273040050.00 | 4 x 0.50 | 60.10 | 1.92 | 4.80 |
| 273040075.00 | 4 x 0.75 | 6.80 | 2.90 | 6.60 |
| 273040100.00 | 4 x 1 | 7.50 | 3.84 | 7.80 |
| 273040150.00 | 4 x 1.50 | 8.90 | 5.80 | 10.60 |
| 273040250.00 | 4 x 2.50 | 10.60 | 9.60 | 18.90 |
| 273040400.00 | 4 x 4 | 13.50 | 15.40 | 27.60 |
| 273040600.00 | 4 x 6 | 14.90 | 23.00 | 41.60 |
| 273041000.00 | 4 x 10 | 19.10 | 38.40 | 64.40 |
| 273041600.00 | 4 x 16 | 24.10 | 61.40 | 107.50 |
| 273050050.00 | 5 x 0.50 | 6.60 | 2.40 | 5.70 |
| 273050075.00 | 5 x 0.75 | 7.40 | 3.60 | 7.50 |
| 273050100.00 | 5 x 1 | 8.60 | 4.80 | 10.00 |
| 273050150.00 | 5 x 1.50 | 9.70 | 7.20 | 13.40 |
| 273050250.00 | 5 x 2.50 | 11.50 | 12.00 | 24.60 |
| 273050400.00 | 5 x 4 | 14.60 | 19.20 | 37.70 |
| 273050600.00 | 5 x 6 | 16.80 | 28.80 | 52.40 |
| 273051000.00 | 5 x 10 | 21.00 | 48.00 | 80.50 |
| 273051600.00 | 5 x 16 | 26.65 | 76.80 | 137.60 |
| 273070050.00 | 7 x 0.50 | 7.80 | 3.40 | 8.20 |
| 273070075.00 | 7 x 0.75 | 8.70 | 5.00 | 10.50 |
| 273070100.00 | 7 x 1 | 10.00 | 6.70 | 12.90 |
| 273070150.00 | 7 x 1.50 | 11.50 | 10.10 | 17.30 |
| 273070250.00 | 7 x 2.50 | 13.60 | 16.80 | 32.80 |
| 273070400.00 | 7 x 4 | 17.40 | 26.90 | 47.40 |
| 273070600.00 | 7 x 6 | 19.10 | 40.30 | 75.10 |
| 273071600.00 | 7 x 16 | 28.60 | 107.50 | 177.00 |
| 273120050 | 12 x 0.50 | 9.80 | 5.80 | 12.90 |
| 273120075.00 | 12 x 0.75 | 10.80 | 8.60 | 17.20 |
| 273120100.00 | 12 x 1 | 12.70 | 11.50 | 20.80 |
| 273120150.00 | 12 x 1.50 | 14.30 | 17.30 | 28.80 |
| 273120250.00 | 12 x 2.50 | 17.20 | 28.80 | 52.90 |
| 273140050.00 | 14 x 0.50 | 10.10 | 6.70 | 13.90 |
| 273140075.00 | 14 x 0.75 | 11.30 | 10.10 | 19.20 |
| 273140100.00 | 14 x 1 | 12.80 | 13.40 | 23.70 |
| 273140150.00 | 14 x 1.50 | 15.10 | 20.20 | 33.00 |
| 273140250.00 | 14 x 2.50 | 18.50 | 33.60 | 61.50 |
| 273180050.00 | 18 x 0.50 | 11.30 | 8.64 | 18.50 |
| 273180075.00 | 18 x 0.75 | 12.70 | 13.00 | 24.70 |
| 273180100.00 | 18 x 1 | 14.20 | 17.30 | 31.00 |
| 273180150.00 | 18 x 1.50 | 16.70 | 25.90 | 42.40 |
| 273180250.00 | 18 x 2.50 | 20.30 | 43.20 | 77.90 |
| 273200050.00 | 20 x 0.50 | 11.90 | 9.60 | 19.10 |
| 273200075.00 | 20 x 0.75 | 13.30 | 14.40 | 25.20 |
| 273200100.00 | 20 x 1 | 14.70 | 19.20 | 30.90 |
| 273200150.00 | 20 x 1.50 | 17.50 | 28.80 | 46.60 |
| 273250050.00 | 25 x 0.50 | 13.90 | 12.00 | 21.40 |
| 273250075.00 | 25 x 0.75 | 15.00 | 18.00 | 34.60 |
| 273250100.00 | 25 x 1 | 16.90 | 24.00 | 42.60 |
| 273250150.00 | 25 x 1.50 | 20.80 | 36.00 | 57.40 |
| 273250250.00 | 25 x 2.50 | 25.10 | 60.00 | 106.40 |
| 273270050.00 | 27 x 0.50 | 14.50 | 13.00 | 23.90 |
| 273270100.00 | 27 x 1 | 17.50 | 25.90 | 42.30 |
| 273270150.00 | 27 x 1.50 | 20.80 | 38.90 | 61.30 |
| 273340050.00 | 34 x 0.50 | 16.20 | 16.32 | 28.40 |
| 273340075.00 | 34 x 0.75 | 17.00 | 24.50 | 42.00 |
| 273340100.00 | 34 x 1 | 18.90 | 32.60 | 50.10 |
| 273340150 | 34 x 1.50 | 23.80 | 49.00 | 75.30 |
| 273360050 | 36 x 0.50 | 16.20 | 17.30 | 30.10 |
| 273360075 | 36 x 0.75 | 17.50 | 25.90 | 44.80 |
| 273360100 | 36 x 1 | 19.30 | 34.60 | 52.80 |
| 273360150 | 36 x 1.50 | 25.80 | 51.80 | 77.20 |
| 273410050 | 41 x 0.50 | 18.00 | 19.70 | 35.20 |
| 273410075 | 41 x 0.75 | 18.60 | 29.60 | 51.90 |
| 273410100 | 41 x 1 | 22.00 | 39.90 | 59.90 |
| 273420150 | 42 x 1.50 | 27.10 | 60.50 | 88.10 |
| 273500050 | 50 x 0.50 | 20.00 | 24.00 | 43.30 |
| 273500075 | 50 x 0.75 | 19.80 | 36.00 | 64.50 |
| 273500100 | 50 x 1 | 23.80 | 48.00 | 73.10 |
| 273500150 | 50 x 1.50 | 29.20 | 72.00 | 100.90 |
| 273610150 | 61 x 1.50 | 32.00 | 87.80 | 120.70 |
| 273650100 | 65 x 1 | 25.70 | 62.40 | 95.60 |
| 273650150 | 65 x 1.50 | 33.70 | 93.60 | 127.90 |
