For use in control circuits, measuring and also in power circuits, in the automation industry, in assembly lines, production lines, etc. Suitable in drag chains and where fast and abrupt movements exist.
FLEX-PU-EF-CY

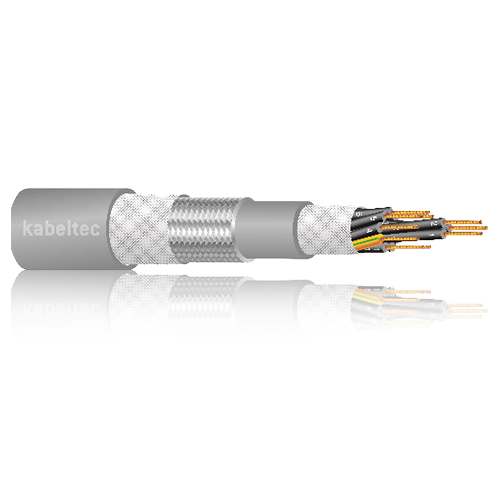

High flexible control cable (PUR) screened
- CONSTRUCTION:
- Superfine strands of bare copper wire
- PVC inner sheath
- Screen made of tinned copper wire
- Textile wrapped
- Earth conductor green/yellow in outer layer
- PUR outer sheath grey, RAL 7001
- Stranding acc. to VDE 0295 class 6
- PVC core insulation black with continuous white figure imprint
- Twisted in layers
- Microbe and hydrolysis resistant, adhesion free, flame-retardant, largely oil resistant
Technical Data:
| Conductor Material: | Copper, bare |
| Conductor class: | Class 6 |
| Core insulation: | PVC |
| Core identification: | VDE 0293-1 |
| Stranding: | Twisted in layers |
| Outer sheath: | PUR |
| Sheath colour: | Grey (RAL 7001) |
| Rated voltage [V]: | 300 / 500 |
| Testing voltage [V]: | 2000 |
| Conductor resistance: | – |
| Insulation resistance: | > 20 MΩ x cm |
| Current carrying capacity: | – |
| Min. bending radius fixed [xd]: | 4 x d |
| Min. bending radius moved [xd]: | 7,5 x d |
| Working temp fixed min/max [C]: | -40°C up to +80°C |
| Working temp moved min/mac [C]: | -5°C up to +70°C |
| Temp at conductor max.: | |
| Burning behaviour: | IEC 60332-1-2: flame-retardant and self-extinguishing |
| Approvals: | VDE 0245/0285 |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 291020050.00 | 2 x 0.50 OZ | 8.10 | 3.40 | 7.00 |
| 291020075.00 | 2 x 0.75 OZ | 8.40 | 4.10 | 8.10 |
| 291020100.00 | 2 x 1 OZ | 8.80 | 4.90 | 9.80 |
| 291020150.00 | 2 x 1.50 OZ | 10.20 | 5.60 | 13.80 |
| 291030050.00 | 3 x 0.50 | 8.60 | 4.50 | 8.00 |
| 291030075.00 | 3 x 0.75 | 8.80 | 4.91 | 9.80 |
| 291030100.00 | 3 x 1 | 9.20 | 5.90 | 12.50 |
| 291030150.00 | 3 x 1.50 | 10.80 | 8.70 | 16.40 |
| 291030250.00 | 3 x 2.50 | 11.70 | 13.40 | 23.00 |
| 291040050.00 | 4 x 0.50 | 9.00 | 5.20 | 9.10 |
| 291040075.00 | 4 x 0.75 | 9.80 | 6.16 | 11.50 |
| 291040100.00 | 4 x 1 | 9.70 | 7.18 | 14.90 |
| 291040150.00 | 4 x 1.50 | 11.70 | 10.40 | 19.10 |
| 291040250.00 | 4 x 2.50 | 12.60 | 16.40 | 30.30 |
| 291040400.00 | 4 x 4 | 17.80 | 23.20 | 45.30 |
| 291040600.00 | 4 x 6 | 20.30 | 33.70 | 60.20 |
| 291041000.00 | 4 x 10 | 22.00 | 51.20 | 94.80 |
| 291041600.00 | 4 x 16 | 25.20 | 79.00 | 140.50 |
| 291050050.00 | 5 x 0.50 | 9.50 | 6.10 | 11.20 |
| 291050075.00 | 5 x 0.75 | 10.40 | 7.00 | 13.10 |
| 291050100.00 | 5 x 1 | 10.40 | 8.44 | 17.30 |
| 291050150.00 | 5 x 1.50 | 11.90 | 12.20 | 23.30 |
| 291050250.00 | 5 x 2.50 | 13.50 | 19.50 | 39.80 |
| 291050400.00 | 5 x 4 | 18.30 | 29.10 | 52.80 |
| 291050600.00 | 5 x 6 | 21.80 | 43.80 | 73.50 |
| 291051000.00 | 5 x 10 | 26.00 | 62.60 | 107.70 |
| 291051600.00 | 5 x 16 | 32.00 | 104.50 | 179.00 |
| 291070050.00 | 7 x 0.50 | 10.70 | 7.40 | 12.50 |
| 291070075.00 | 7 x 0.75 | 11.70 | 8.97 | 17.10 |
| 291070100.00 | 7 x 1 | 12.60 | 11.40 | 22.50 |
| 291070150.00 | 7 x 1.50 | 13.80 | 16.90 | 28.50 |
| 291070250.00 | 7 x 2.50 | 16.00 | 28.10 | 51.00 |
| 291120050.00 | 12 x 0.50 | 13.00 | 9.90 | 18.70 |
| 291120075.00 | 12 x 0.75 | 13.60 | 15.40 | 24.30 |
| 291120100.00 | 12 x 1 | 14.80 | 18.80 | 29.50 |
| 291120150.00 | 12 x 1.50 | 17.10 | 27.00 | 42.50 |
| 291120250.00 | 12 x 2.50 | 22.20 | 44.50 | 72.20 |
| 291140050.00 | 14 x 0.50 | 13.60 | 10.90 | 21.20 |
| 291140075 | 14 x 0.75 | 14.20 | 16.70 | 27.60 |
| 291140100.00 | 14 x 1 | 15.40 | 21.60 | 34.30 |
| 291140150.00 | 14 x 1.50 | 18.30 | 31.50 | 47.70 |
| 291140250.00 | 14 x 2.50 | 23.00 | 55.10 | 80.60 |
| 291180050.00 | 18 x 0.50 | 14.70 | 13.20 | 26.20 |
| 291180075.00 | 18 x 0.75 | 15.50 | 20.50 | 35.60 |
| 291180100.00 | 18 x 1 | 16.80 | 27.10 | 43.90 |
| 291180150.00 | 18 x 1.50 | 20.30 | 38.80 | 59.50 |
| 291180250.00 | 18 x 2.50 | 25.80 | 68.70 | 97.40 |
| 291200050.00 | 20 x 0.50 | 15.30 | 15.50 | 28.70 |
| 291200075.00 | 20 x 0.75 | 17.20 | 22.00 | 37.50 |
| 291200100.00 | 20 x 1 | 17.50 | 30.20 | 48.70 |
| 291200150.00 | 20 x 1.50 | 21.10 | 43.20 | 64.70 |
| 291250050.00 | 25 x 0.50 | 17.70 | 18.70 | 35.00 |
| 291250075.00 | 25 x 0.75 | 18.90 | 27.70 | 47.90 |
| 291250100.00 | 25 x 1 | 20.90 | 37.50 | 61.00 |
| 291250150.00 | 25 x 1.50 | 23.10 | 52.80 | 79.20 |
| 291250250.00 | 25 x 2.50 | 30.10 | 89.80 | 126.80 |
| 291340100.00 | 34 x 1 | 23.70 | 50.50 | 82.60 |
| 291340150.00 | 34 x 1.50 | 25.20 | 78.30 | 102.80 |
| 291360050.00 | 36 x 0.50 | 18.60 | 25.50 | 48.80 |
| 291360075.00 | 36 x 0.75 | 20.70 | 37.00 | 62.50 |
| 291360100.00 | 36 x 1 | 24.90 | 52.90 | 87.40 |
| 291410100.00 | 41 x 1 | 25.70 | 59.90 | 99.60 |
| 291420150.00 | 42 x 1.50 | 28.80 | 83.40 | 123.60 |
| 291500100.00 | 50 x 1 | 27.80 | 72.50 | 121.20 |
| 291500150.00 | 50 x 1.50 | 31.32 | 99.50 | 144.40 |
| 291650100.00 | 65 x 1 | 31.50 | 93.50 | 157.20 |
