For electrical circuits that remain ´live´ after the main switch has been disconnected Service sockets and illumination circuits in electrical switchboards and cabinets suitable for torsional applications which are typical for the loop in wind turbine generators (WTG).

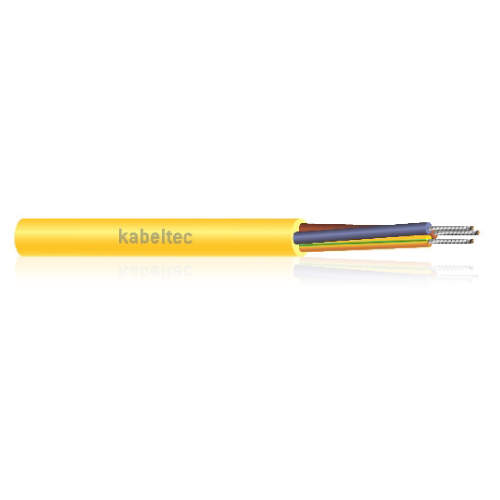

FLEX-JB YELLOW
Flexible control cable, coloured coded
CONSTRUCTION:
- Fine-wire strand made of bare copper wires
- PVC core insulation
- Cores stranded in layers
- PVC outer sheath
- Good chemical resistance
TECHNICAL DATA:
| Conductor Material: | bare copper |
| Conductor class: | Class 5 acc. to DIN VDE 0295 resp. IEC 60228 |
| Core insulation: | PVC |
| Core identification: | VDE 0293-308 |
| Stranding: | Cores stranded in layers |
| Outer sheath: | PVC |
| Sheath colour: | Yellow (RAL 1016) |
| Rated voltage [V]: | 450/750 |
| Testing voltage [V]: | 4000 |
| Conductor resistance: | |
| Insulation resistance: | 20 Ohm x cm |
| Current carrying capacity: | |
| Min. bending radius fixed [xd]: | 4 x d |
| Min. bending radius moved [xd]: | 15 x d |
| Working temp fixed min/max [C]: | -40°C up to +80°C |
| Working temp moved min/mac [C]: | -5°C up to +70°C |
| Temp at conductor max.: | |
| Burning behaviour: | IEC 60332-1-2: flame-retardant |
| Approvals: | Based on IEC 60227-5 and EN 50525-2-51 |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 11030150 GELB | 3 x 1.5 | 8.10 | 4.30 | 9.50 |
| 11030250 GELB | 3 x 2.5 | 9.60 | 7.20 | 15.20 |
| 11040150 GELB | 4 x 1.5 | 8.90 | 5.80 | 11.70 |
| 11040250 GELB | 4 x 2.5 | 10.70 | 9.60 | 20.50 |
| 11050150 GELB | 5 x 1.5 | 10.00 | 7.20 | 14.40 |
| 11050250 GELB | 5 x 2.5 | 11.80 | 12.00 | 22.50 |
