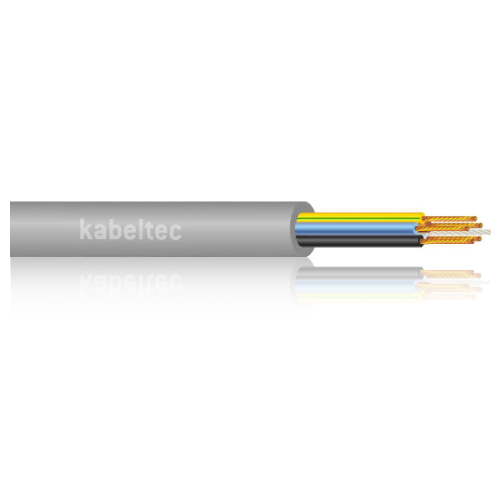

Halogen-free control cable
Halogen-free, flame-retardant power control cable with improved properties in case of fire. Suitable for fixed or flexible applications. Suitable for use as energy, power, control or connecting cable to meet stringent safety requirements. Installation in dry and moist rooms. Pronounced advantages in comparance to a PVC control cable (e.g. Flex-JZ)
– low fire load
– low smoke emission
– reduced fire propagation
CONSTRUCTION:
– Colored cores acc. to VDE0293-308
– Core insulation: halogen-free compound
– Fine strands of bare copper conductor
– Earth conductor green/yellow
– Outer sheath: halogen-free compound grey
Technical Data:
Conductor Material: Bare copper
Conductor class: Class 5
Core insulation: Halogen-free compound
Core identification: colored cores according to VDE0293-308
Stranding: cc. to VDE 0295 class 5
Outer sheath: Halogen-free compound
Sheath colour: Grey (RAL 7001)
Rated voltage [V]: 450/750V
Testing voltage [V]: 4000V
Conductor resistance: DIN VDE 0295 or IEC 60228
Insulation resistance: min. 20 MΩ x km
Current carrying capacity: DIN VDE (s. technical guidelines)
Min. bending radius fixed [xd]: 5 x d
Min. bending radius moved [xd]: 10 x d
Working temp fixed min/max [C]: -40°C up to +80°C
Working temp moved min/mac [C]: -5°C up to +70°C
Temp at conductor max.: *
Burning behaviour: IEC60332-1, EN 50265, IEC 60332-1, EN 60332-3-24, IEC
603323- Cat. C, flamereardant and self-extinguishing
Approvals:
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 3 x 1.5 | 8.3 | 4.32 | 11 | |
| 3 x 2.5 | 9.9 | 7.2 | 16.2 | |
| 3 x 4 | 13.2 | 11.52 | 30.1 | |
| 3 x 6 | 14.3 | 17.28 | 37.4 | |
| 3 x 10 | 17 | 28.8 | 57.1 | |
| 3 x 16 | 19.4 | 46.08 | 79.9 | |
| 3 x 25 | 24.5 | 72 | 130.9 | |
| 3 x 35 | 26.6 | 100.8 | 159.3 | |
| 4 x 1.5 | 9.5 | 5.76 | 14.2 | |
| 4 x 2.5 | 10.8 | 9.6 | 19.6 | |
| 4 x 4 | 14.4 | 15.36 | 36.3 | |
| 4 x 6 | 15.6 | 23.04 | 45.6 | |
| 4 x 10 | 18.7 | 38.4 | 70.3 | |
| 4 x 16 | 21.3 | 61.44 | 99.2 | |
| 4 x 25 | 27 | 96 | 163.3 | |
| 4 x 35 | 29.9 | 134.4 | 202.3 | |
| 4 x 50 | 35.2 | 192 | 281 | |
| 4 x 70 | 40 | 268.8 | 385.6 | |
| 4 x 95 | 45.5 | 364.8 | 502.3 | |
| 4 x 120 | 48.3 | 460.8 | 605.4 | |
| 5 x 1.5 | 10.3 | 7.2 | 17.1 | |
| 5 x 2.5 | 11.8 | 12 | 23.7 | |
| 5 x 4 | 15.4 | 19.2 | 42.4 | |
| 5 x 6 | 16.8 | 28.8 | 53.7 | |
| 5 x 10 | 20.5 | 48 | 85.4 | |
| 5 x 16 | 23 | 76.8 | 118.1 | |
| 5 x 25 | 29.6 | 120 | 197.9 | |
| 5 x 35 | 32.3 | 168 | 242 | |
| 5 x 50 | 38.1 | 240 | 337.1 | |
| 5 x 70 | 43.7 | 336 | 468.1 | |
| 5 x 95 | 49.4 | 456 | 605.2 |
