For use in control circuits, measuring and also in power circuits, in the automation industry, in assembly lines, production lines etc. Suitable in drag chains and where fast and abrupt movements exist.

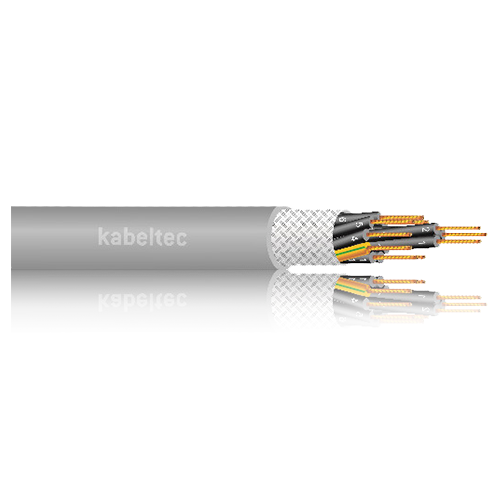

FLEX-EF
High flexible PVC control cable
- CONSTRUCTION:
- Superfine strands of bare copper wire
- Stranding acc. to VDE 0295 class 6
- Twisted in layers
- Earth conductor green/yellow in outer layer
- Textile wrapped
- PVC core insulation black with continuous white figure imprint
- PVC outer sheath grey, RAL 7001 as per VDE 0207
- Flame-retardant, largely oil resistant
Technical Data:
| Conductor Material: | Copper bare |
| Conductor class: | Class 6 according VDE 0295 respec. IEC 60228 |
| Core insulation: | PVC |
| Core identification: | VDE 0293-1 |
| Stranding: | |
| Outer sheath: | PVC |
| Sheath colour: | Grey (RAL 7001) |
| Rated voltage [V]: | 300 / 500 |
| Testing voltage [V]: | 4000 |
| Conductor resistance: | |
| Insulation resistance: | > 20 MΩ x km |
| Current carrying capacity: | |
| Min. bending radius fixed [xd]: | 4 x d |
| Min. bending radius moved [xd]: | 7,5 x d |
| Working temp fixed min/max [C]: | -40°C up to +70°C |
| Working temp moved min/mac [C]: | -5°C up to +70°C |
| Temp at conductor max.: | |
| Burning behaviour: | IEC 60332-1-2: flame-retardant and self-extinguishing |
| Approvals: | VDE 0245, 0285 |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 15020050.00 | 2 x 0.50 OZ | 6.30 | 0.96 | 4.00 |
| 15020075.00 | 2 x 0.75 OZ | 6.40 | 1.44 | 4.90 |
| 15020100.00 | 2 x 1 OZ | 6.60 | 1.92 | 5.80 |
| 15020150.00 | 2 x 1.50 OZ | 6.60 | 2.90 | 7.40 |
| 15030050.00 | 3 x 0.50 | 6.50 | 1.44 | 4.80 |
| 15030075.00 | 3 x 0.75 | 6.60 | 2.16 | 6.00 |
| 15030100.00 | 3 x 1 | 6.80 | 2.90 | 7.40 |
| 15030150.00 | 3 x 1.50 | 7.00 | 4.30 | 9.80 |
| 15030250.00 | 3 x 2.50 | 9.90 | 7.20 | 14.50 |
| 15030400.00 | 3 x 4 | 11.20 | 11.10 | 21.40 |
| 15040050.00 | 4 x 0.50 | 7.30 | 1.92 | 5.80 |
| 15040075.00 | 4 x 0.75 | 6.60 | 2.90 | 7.30 |
| 15040100.00 | 4 x 1 | 7.30 | 3.84 | 8.90 |
| 15040150.00 | 4 x 1.50 | 7.90 | 5.80 | 11.40 |
| 15040250.00 | 4 x 2.50 | 11.20 | 9.60 | 19.50 |
| 15040400.00 | 4 x 4 | 12.30 | 14.70 | 26.60 |
| 15040600.00 | 4 x 6 | 14.50 | 22.30 | 39.60 |
| 15041000.00 | 4 x 10 | 18.30 | 35.40 | 64.40 |
| 15041600.00 | 4 x 16 | 21.20 | 61.50 | 92.20 |
| 15050050.00 | 5 x 0.50 | 7.60 | 2.40 | 6.70 |
| 15050075.00 | 5 x 0.75 | 7.90 | 3.60 | 8.40 |
| 15050100.00 | 5 x 1 | 7.80 | 4.80 | 10.40 |
| 15050150.00 | 5 x 1.50 | 8.80 | 7.20 | 13.90 |
| 15050250.00 | 5 x 2.50 | 12.00 | 12.00 | 24.20 |
| 15050400.00 | 5 x 4 | 13.70 | 18.40 | 32.50 |
| 15050600.00 | 5 x 6 | 16.20 | 27.80 | 48.40 |
| 15051000.00 | 5 x 10 | 20.30 | 44.30 | 78.50 |
| 15051600.00 | 5 x 16 | 23.70 | 76.80 | 113.30 |
| 15070050.00 | 7 x 0.50 | 8.40 | 3.40 | 9.50 |
| 15070075.00 | 7 x 0.75 | 9.60 | 5.00 | 11.70 |
| 15070100.00 | 7 x 1 | 8.70 | 6.70 | 14.20 |
| 15070150.00 | 7 x 1.50 | 9.80 | 10.10 | 18.90 |
| 15070250.00 | 7 x 2.50 | 14.60 | 16.80 | 34.60 |
| 15100050.00 | 10 x 0.50 | 9.50 | 4.80 | 11.80 |
| 15100075.00 | 10 x 0.75 | 10.70 | 7.20 | 15.40 |
| 15100100.00 | 10 x 1 | 11.40 | 9.60 | 20.10 |
| 15100150.00 | 10 x 1.50 | 13.50 | 14.40 | 27.00 |
| 15120050.00 | 12 x 0.50 | 10.20 | 5.80 | 13.60 |
| 15120075.00 | 12 x 0.75 | 11.80 | 8.60 | 18.10 |
| 15120100.00 | 12 x 1 | 12.60 | 11.50 | 24.10 |
| 15120150.00 | 12 x 1.50 | 14.00 | 17.30 | 31.30 |
| 15120250.00 | 12 x 2.50 | 17.80 | 28.80 | 51.60 |
| 15140050.00 | 14 x 0.50 | 11.40 | 6.70 | 14.40 |
| 15140100.00 | 14 x 1 | 13.30 | 13.40 | 25.90 |
| 15140150.00 | 14 x 1.50 | 14.20 | 20.30 | 35.00 |
| 15140250.00 | 14 x 2.50 | 19.50 | 33.60 | 58.60 |
| 15160100.00 | 16 x 1 | 13.70 | 15.30 | 28.80 |
| 15160075.00 | 16 x 0.75 | 10.60 | 8.70 | 18.10 |
| 15160150.00 | 16 x 1.50 | 15.50 | 23.20 | 42.60 |
| 15180050.00 | 18 x 0.50 | 12.30 | 8.64 | 19.50 |
| 15180075.00 | 18 x 0.75 | 13.90 | 13.00 | 26.00 |
| 15180100.00 | 18 x 1 | 14.20 | 17.30 | 32.50 |
| 15180150.00 | 18 x 1.50 | 16.50 | 25.70 | 52.50 |
| 15180250.00 | 18 x 2.50 | 21.20 | 43.20 | 82.40 |
| 15210050.00 | 21 x 0.50 | 13.10 | 10.10 | 22.50 |
| 15210075.00 | 21 x 0.75 | 15.40 | 15.10 | 30.50 |
| 15210100.00 | 21 x 1 | 15.80 | 20.20 | 40.60 |
| 15210150.00 | 21 x 1.50 | 18.30 | 30.00 | 59.50 |
| 15250050.00 | 25 x 0.50 | 14.50 | 12.00 | 27.80 |
| 15250075.00 | 25 x 0.75 | 17.00 | 18.00 | 36.30 |
| 15250100.00 | 25 x 1 | 17.50 | 24.00 | 48.10 |
| 15250150.00 | 25 x 1.50 | 20.40 | 35.70 | 68.40 |
| 15250250.00 | 25 x 2.50 | 25.10 | 60.00 | 98.80 |
| 15260075.00 | 26 x 0.75 | 17.20 | 18.70 | 35.60 |
| 15260100.00 | 26 x 1 | 17.80 | 25.00 | 49.50 |
| 15260150.00 | 26 x 1.50 | 21.00 | 37.10 | 70.70 |
| 15300050.00 | 30 x 0.50 | 14.30 | 14.40 | 31.20 |
| 15320100.00 | 32 x 1 | 20.70 | 30.70 | 59.30 |
| 15340050.00 | 34 x 0.50 | 16.70 | 16.30 | 35.80 |
| 15340075.00 | 34 x 0.75 | 18.60 | 24.50 | 44.30 |
| 15340100.00 | 34 x 1 | 21.40 | 32.60 | 63.50 |
| 15340150.00 | 34 x 1.50 | 23.30 | 49.00 | 89.10 |
| 15410100.00 | 41 x 1 | 22.70 | 39.40 | 74.70 |
| 15410150.00 | 41 x 1.50 | 23.00 | 61.30 | 93.60 |
| 15420050.00 | 42 x 0.50 | 18.30 | 20.20 | 43.20 |
| 15420100.00 | 42 x 1 | 23.00 | 40.30 | 76.80 |
| 15420150.00 | 42 x 1.50 | 25.00 | 60.50 | 107.50 |
| 15480100.00 | 48 x 1 | 24.10 | 46.10 | 81.50 |
| 15500050.00 | 50 x 0.50 | 19.80 | 24.00 | 52.70 |
| 15500075.00 | 50 x 0.75 | 21.60 | 36.00 | 58.70 |
| 15500100.00 | 50 x 1 | 24.90 | 48.00 | 87.90 |
| 15500150.00 | 50 x 1.50 | 26.00 | 72.00 | 132.00 |
| 15610150.00 | 61 x 1.50 | 32.70 | 87.80 | 157.80 |
| 15650100.00 | 65 x 1 | 30.00 | 62.40 | 122.10 |
| 15650150.00 | 65 x 1.50 | 34.10 | 93.60 | 167.20 |
