In power chains or moving machine parts. For internal wiring of electric and electronic equipment in switch cabinets. This cable can substitute multi-core shielded servo drive cables where space requirements or minimum bending radii
cause problems. Specially designed for power circuits of servomotors driven by frequency converters. Test systems in the automotive industry, vehicles and stationary fuel cell systems.

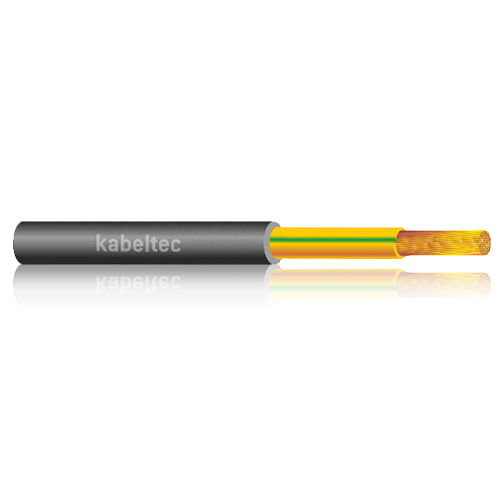

Flex-EF SC
high flex single core, double insulated
- CONSTRUCTION:
- UV- resistant
- Extra-fine wire strand made of bare copper wires (class 6)
- Non-woven wrapping
- Core insulation: PVC
- PVC outer sheath, black (RAL 9005)
- PVC-insulated, PVC sheath, single core, approved
- Easy to install
- Also suitable for mobile outdoor use
- Low-adhesive surface
- Flame-retardant acc. to IEC 60332-1-2 & CSA FT1
- High oil-resistance
- UL File No. E63634
- ETIM 5.0 Class-ID EC000057
- ETIM 5.0 Class-Description: Low voltage power cable
Technical Data:
| Conductor Material: | bare copper |
| Conductor class: | Class 6 |
| Core insulation: | PVC |
| Core identification: | black or green/yellow |
| Stranding: | |
| Outer sheath: | PVC |
| Sheath colour: | Black |
| Rated voltage [V]: | 600 / 1000 |
| Testing voltage [V]: | 4000 |
| Conductor resistance: | |
| Insulation resistance: | > 20 GOhmx cm |
| Current carrying capacity: | |
| Min. bending radius fixed [xd]: | |
| Min. bending radius moved [xd]: | |
| Working temp fixed min/max [C]: | -40°C up to +90°C |
| Working temp moved min/mac [C]: | -5°C up to +90°C |
| Temp at conductor max.: | |
| Burning behaviour: | Flame-retardant acc. to IEC 60332-1-2 & CSA FT1 |
| Approvals: | – UL-AWM-Style 10107, cRU AWM II A/B FT1 >150mm²- CSA AWM IA/B IIA/B FT 1 – Based on VDE 0250 / 0285 |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| GG | 1 x 10 | 9 | 9.6 | 17.6 |
| SW | 1 x 10 | 9 | 9.6 | 17.6 |
| GG | 1 x 16 | 10.5 | 15.36 | 24 |
| SW | 1 x 16 | 10.5 | 15.36 | 24 |
| GG | 1 x 25 | 11.8 | 24 | 36.1 |
| SW | 1 x 25 | 11.8 | 24 | 36.1 |
| GG | 1 x 35 | 14.2 | 33.6 | 48.2 |
| SW | 1 x 35 | 14.2 | 33.6 | 48.2 |
| GG | 1 x 50 | 16.2 | 48 | 66 |
| SW | 1 x 50 | 16.2 | 48 | 66 |
| GG | 1 x 70 | 18.3 | 67.2 | 89.8 |
| SW | 1 x 70 | 18.3 | 67.2 | 89.8 |
| GG | 1 x 95 | 19.8 | 91.2 | 117.9 |
| SW | 1 x 95 | 19.8 | 91.2 | 117.9 |
| GG | 1 x 120 | 23.4 | 115.2 | 152.1 |
| SW | 1 x 120 | 23.4 | 115.2 | 152.1 |
| GG | 1 x 150 | 25.1 | 144 | 173.9 |
| SW | 1 x 150 | 25.1 | 144 | 173.9 |
| GG | 1 x 185 | 28.1 | 177.6 | 230.5 |
| SW | 1 x 185 | 28.1 | 177.6 | 230.5 |
| GG | 1 x 240 | 31.6 | 230.4 | 294.4 |
| SW | 1 x 240 | 31.6 | 230.4 | 294.4 |
| GG | 1 x 300 | 33.5 | 288 | 354.5 |
| SW | 1 x 300 | 33.5 | 288 | 354.5 |
