In power chains or moving machine parts. For internal wiring of electric and electronic equipment in switch cabinets. Specially designed for power circuits of servomotors driven by frequency converters. This cable can substitute multi-core shielded servo drive cables where space requirements or minium bending radii cause problems. Test systems in the automotive industry, vehicles and stationary fuel cell systems

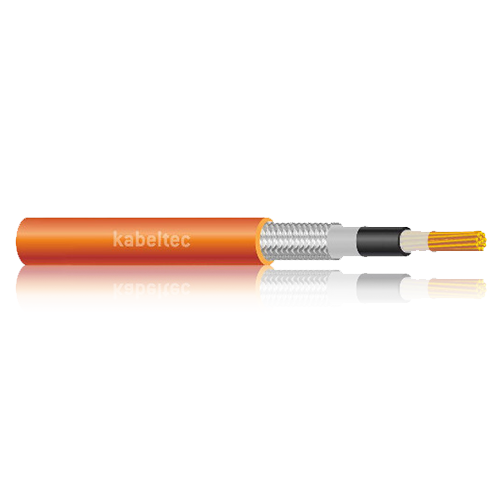

Flex-EF-CY SC
Screen single core, PVC-insulated, PVC Sheath, approved. Multi-standard=fewer part varieties=cost savings. Easy to install
| CONSTRUCTION: | |
| Non-woven wrapping | |
| Core insulation: | PVC |
| Tinned-copper braiding | |
| PVC outer sheath, orange (RAL 2003) | |
| Low-adhesive surface | |
| Flame-retardant according to IEC 60332-1-2 & CSA FT1 | |
| High oil-resistance | |
| Power chain | |
| TECHNICAL DATA: | |
| Conductor Material | Copper |
| Conductor class | Class 6 |
| Core insulation | PVC |
| Core identification | Black |
| Stranding | Extra-fine wire strand made of bare copper wires (Class 6) |
| Outer sheath | PVC |
| Sheath colour | Orange (RAL 2003) |
| Rated voltage [V] | 600 / 1000 |
| Testing voltage [V] | 4000 |
| Conductor resistance | |
| Insulation resistance | > 20 GOhm x cm |
| Current carrying capacity | |
| Min. bending radius fixed [xd] | |
| Min. bending radius moved [xd] | |
| Working temp fixed min/max [C] | -40°C up to +90°C |
| Working temp moved min/mac [C] | -5°C up to +90 °C |
| Temp at conductor max. | |
| Burning behaviour | Flame-retardant according to IEC 60332-1-2 & CSA FT1 |
| Approvals: | UL-AWM-Style 10107, cRU AWM II A/B FT1 >150mm2 |
| CSA AWM IA/B IIA/B FT 1 -based on VDE 2050 / 0285 |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 1 x 10 | 9.7 | 12.76 | 22.7 | |
| 1 x 16 | 11.2 | 18.62 | 29.7 | |
| 1 x 25 | 12.5 | 25.78 | 41 | |
| 1 x 35 | 15.1 | 40.07 | 60.7 | |
| 1 x 50 | 17.1 | 55.48 | 80.8 | |
| 1 x 70 | 19.4 | 77.56 | 108.1 | |
| 1 x 95 | 20.9 | 102.81 | 138.2 | |
| 1 x 120 | 24.5 | 128.24 | 175.2 | |
| 1 x 150 | 26.2 | 141.04 | 192.4 | |
| 1 x 185 | 29.2 | 193.5 | 261.1 | |
| 1 x 240 | 32.9 | 252.6 | 337.2 | |
| 1 x 300 | 34.8 | 312.88 | 410.5 | |
| 1 x 10 | 9.7 | 12.76 | 22.7 | |
| 1 x 16 | 11.2 | 18.62 | 29.7 | |
| 1 x 25 | 12.5 | 25.78 | 41 | |
| 1 x 35 | 15.1 | 40.07 | 60.7 | |
| 1 x 50 | 17.1 | 55.48 | 80.8 | |
| 1 x 70 | 19.4 | 77.56 | 108.1 | |
| 1 x 95 | 20.9 | 102.81 | 138.2 | |
| 1 x 120 | 24.5 | 128.24 | 175.2 | |
| 1 x 150 | 26.2 | 141.04 | 192.4 | |
| 1 x 185 | 29.2 | 193.5 | 261.1 | |
| 1 x 240 | 32.9 | 252.6 | 337.2 | |
| 1 x 300 | 34.8 | 312.88 | 410.5 |
