Flex-CY-JZ POWER can be installed in all electrical systems in dry and damp interiors, especially in industrial environments and can also be used outside; underwater installation is not permitted. Flex-CY-JZ POWER is suitable as measuring, monitoring and control cable in the machine tool and plant engineering, assembly lines and production lines. These cables with copper screening are ideally suitable for interference-free data and signal transmission in measuring and control technology. Good chemical resistance, largely oil resistant.
FLEX-CY-JZ POWER
0,6/1kV black

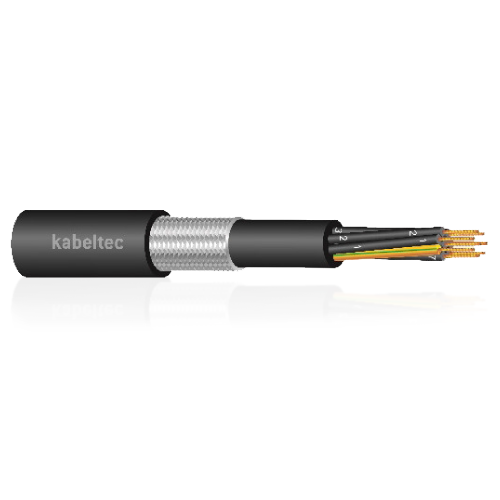

CONSTRUCTION:
- Fine strands of bare copper conductor
- Stranding acc. to VDE 0295, class 5
- Cores of special PVC
- Black cores with white numbers
- JZ = earth conductor green/yellow in outer layer
- OZ = without earth conductor
- Inner sheath of special PVC, black
- Copper screen of tinned copper wire braid
- Outer sheath of special PVC, fire- and oil resistant, resistant of UV – radiation
- Sheath colour: black RAL 9005
TECHNICAL DATA:
| Conductor Material: | Copper, bare |
| Conductor class: | Class 5 acc. to DIN VDE 0295, resp. IEC 60228 |
| Core insulation: | Special PVC |
| Core identification: | DIN VDE 0293: black cores, white numbers |
| Stranding: | Cores twisted in layers |
| Outer sheath: | Special PVC |
| Sheath colour: | Black RAL 9005 |
| Rated voltage [V]: | 600/1000 |
| Testing voltage [V]: | 4000 |
| Conductor resistance: | |
| Insulation resistance: | > 20 MΩ x km |
| Current carrying capacity: | DIN VDE (s. technical guidance) |
| Min. bending radius fixed [xd]: | 5xd |
| Min. bending radius moved [xd]: | 15xd |
| Working temp fixed min/max [C]: | -40°C up to +80°C |
| Working temp moved min/mac [C]: | -15°C up to +70°C |
| Temp at conductor max.: | +70°C in operation, +160°C in case of short-circuit |
| Burning behaviour: | IEC 60332-1: flame-retardant and self-extinguishing |
| Approvals: | Oil resistant: EN 60811-2-1 |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 102020050 | 2 x 0.50 OZ | 8.10 | 3.80 | 12.0 |
| 102020075.00 | 2 x 0.75 OZ | 9.00 | 4.60 | 14.20 |
| 102020100.00 | 2 x 1 OZ | 9.40 | 5.20 | 15.70 |
| 102020150.00 | 2 x 1.50 OZ | 10.10 | 6.90 | 19.20 |
| 102020250.00 | 2 x 2.50 | 11.30 | 11.30 | 19.20 |
| 102030050.00 | 3 x 0.50 | 8.40 | 4.50 | 16.60 |
| 102030075.00 | 3 x 0.75 | 9.20 | 5.60 | 15.50 |
| 102030100.00 | 3 x 1 | 10.00 | 6.60 | 19.60 |
| 102030150.00 | 3 x 1.50 | 11.30 | 8.70 | 21.80 |
| 102030250.00 | 3 x 2.50 | 12.70 | 12.30 | 31.20 |
| 102040050.00 | 4 x 0.50 | 9.40 | 5.40 | 19.00 |
| 102040075.00 | 4 x 0.75 | 10.20 | 6.70 | 21.40 |
| 102040100.00 | 4 x 1 | 10.80 | 7.90 | 23.10 |
| 102040150.00 | 4 x 1.50 | 13.00 | 10.20 | 26.50 |
| 102040250.00 | 4 x 2.50 | 14.30 | 16.80 | 36.20 |
| 102040400.00 | 4 x 4 | 16.20 | 23.80 | 54.00 |
| 102040600.00 | 4 x 6 | 17.70 | 31.80 | 71.50 |
| 102041000.00 | 4 x 10 | 21.70 | 57.40 | 126.70 |
| 102041600.00 | 4 x 16 | 24.90 | 80.90 | 176.30 |
| 102042500.00 | 4 x 25 | 29.80 | 116.50 | 275.00 |
| 102043500.00 | 4 x 35 | 32.70 | 168.80 | 349.70 |
| 102045000.00 | 4 x 50 | 39.60 | 236.80 | 493.70 |
| 102047000.00 | 4 x 70 | 44.20 | 326.10 | 748.00 |
| 102049500.00 | 4 x 95 | 51.00 | 405.50 | 1022.00 |
| 1020412000.00 | 4 x 120 | 58.10 | 522.50 | 1375.00 |
| 102050050.00 | 5 x 0.50 | 10.00 | 6.20 | 21.90 |
| 102050075.00 | 5 x 0.75 | 11.40 | 7.80 | 25.00 |
| 102050100.00 | 5 x 1 | 12.60 | 9.30 | 27.00 |
| 102050150.00 | 5 x 1.50 | 13.90 | 12.50 | 30.00 |
| 102050250.00 | 5 x 2.50 | 15.30 | 20.40 | 46.90 |
| 102050400.00 | 5 x 4 | 17.50 | 30.20 | 67.30 |
| 102050600.00 | 5 x 6 | 19.20 | 41.90 | 98.40 |
| 102051000.00 | 5 x 10 | 23.50 | 70.60 | 163.50 |
| 102051600.00 | 5 x 16 | 27.40 | 104.70 | 272.00 |
| 102052500.00 | 5 x 25 | 32.60 | 144.60 | 349.00 |
| 102053500.00 | 5 x 35 | 38.00 | 202.00 | 495.00 |
| 102070050.00 | 7 x 0.50 | 12.30 | 7.70 | 25.50 |
| 102070075.00 | 7 x 0.75 | 12.90 | 9.70 | 31.50 |
| 102070100.00 | 7 x 1 | 13.60 | 11.70 | 33.50 |
| 102070150.00 | 7 x 1.50 | 15.00 | 18.00 | 39.70 |
| 102070250.00 | 7 x 2.50 | 17.20 | 26.50 | 58.00 |
| 102070400.00 | 7 x 4 | 19.00 | 39.60 | 87.40 |
| 102070600.00 | 7 x 6 | 21.70 | 55.90 | 128.50 |
| 102120050.00 | 12 x 0.50 | 14.90 | 13.00 | 35.90 |
| 102120075.00 | 12 x 0.75 | 15.80 | 16.80 | 42.40 |
| 102120100.00 | 12 x 1 | 16.40 | 20.40 | 52.20 |
| 102120150.00 | 12 x 1.50 | 18.90 | 28.10 | 69.00 |
| 102120250.00 | 12 x 2.50 | 21.70 | 42.10 | 86.30 |
| 102180050.00 | 18 x 0.50 | 17.00 | 17.30 | 47.50 |
| 102180075.00 | 18 x 0.75 | 18.00 | 22.90 | 57.40 |
| 102180100.00 | 18 x 1 | 19.20 | 28.00 | 63.50 |
| 102180150.00 | 18 x 1.50 | 22.10 | 39.10 | 87.20 |
| 102180250.00 | 18 x 2.50 | 25.50 | 59.40 | 135.50 |
| 102250050.00 | 25 x 0.50 | 19.90 | 22.30 | 63.80 |
| 102250075.00 | 25 x 0.75 | 21.40 | 29.60 | 76.20 |
| 102250100.00 | 25 x 1 | 22.40 | 36.90 | 86.70 |
| 102250150.00 | 25 x 1.50 | 25.10 | 51.80 | 118.00 |
| 102250250.00 | 25 x 2.50 | 29.30 | 85.10 | 199.50 |
