Used as connecting cable, as measuring, power and control cable in machine tool manufacturing, plant engineering and on assembly lines and production lines to meet stringent safety requirements and for lossless data transmission. Suitable for fixed installation or flexible applications with unrestricted mobility without forced movement control and without exposure to tensile load. Installation in dry and moist rooms; outdoor installation not permitted. These cables with copper screening are ideally suitable for interference-free data and signal transmission in measuring and control technology. Good chemical resistance, largely oil resistant.

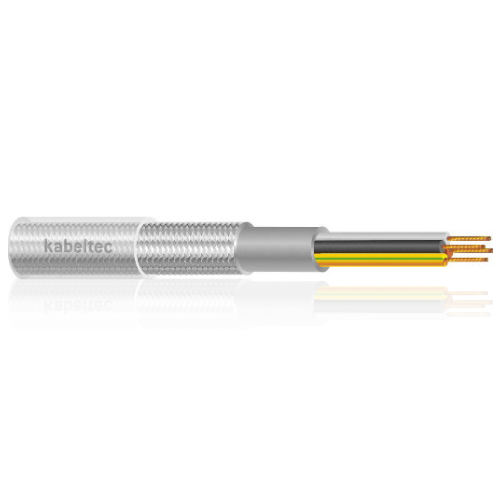

FLEX-CY-JB/OB
Colour coded, copper screened, with inner bedding
CONSTRUCTION:
- Fine strands of bare copper wire
- Stranding acc. to VDE 0295, class 5
- PVC insulation, coloured cores acc. to JB/OB colour code
- Earth conductor green/yellow in the outer layer
- PVC inner sheath grey
- Overall screen made of tinned copper wire braid
- PVC outer sheath transparent
TECHNICAL DATA:
Conductor Material: | Copper, bare |
Conductor class: | Class 5 acc. to DIN VDE 0295, or IEC 60228 |
Core insulation: | PVC |
Core identification: | Up to 5 cores acc. to DIN VDE 0293-308, from 6 cores Kabeltec colour code |
Stranding: | Cores twisted in layers |
Outer sheath: | PVC |
Sheath colour: | Transparent |
Rated voltage [V]: | 300 / 500 |
Testing voltage [V]: | 4000 |
Conductor resistance: | DIN VDE 0295 class 5, resp. IEC 60228 cl. 5 |
Insulation resistance: | 20 MΩ x km |
Current carrying capacity: | DIN VDE (see technical guidelines) |
Min. bending radius fixed [xd]: | 6 x d |
Min. bending radius moved [xd]: | 15 x d |
Working temp fixed min/max [C]: | -40°C up to +80°C |
Working temp moved min/mac [C]: | -15°C up to +70°C |
Temp at conductor max.: | +70°C in operation, +150°C in case of short-circuit |
Burning behaviour: | IEC 60332-1: flame-retardant and self-extinguishing |
Approvals: | IEC 60227-5 und EN 50525-2-51 |
PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
---|---|---|---|---|
210020050.00 | 2 x 0.50 OB | 7.00 | 4.10 | 7.50 |
210020075.00 | 2 x 0.75 OB | 7.40 | 4.60 | 8.60 |
210020100.00 | 2 x 1 OB | 7.90 | 5.60 | 9.80 |
210020150.00 | 2 x 1.50 OB | 8.50 | 6.50 | 11.70 |
210020250 | 2 x 2.50 OB | 9.90 | 11.20 | 16.50 |
210020400 | 2 x 4 OB | 11.40 | 12.00 | 24.70 |
210020600 | 2 x 6 OB | 13.60 | 18.00 | 35.30 |
210021000 | 2 x 10 OB | 18.60 | 26.50 | 50.00 |
210030050 | 3 x 0.50 | 7.30 | 4.60 | 8.30 |
210030075 | 3 x 0.75 | 7.90 | 5.80 | 10.00 |
210030100 | 3 x 1 | 8.20 | 6.50 | 11.10 |
210030150 | 3 x 1.50 | 8.90 | 8.30 | 13.60 |
210030250 | 3 x 2.50 | 10.30 | 14.60 | 19.20 |
210030400 | 3 x 4 | 14.70 | 17.80 | 34.00 |
210030600.00 | 3 x 6 | 16.00 | 24.00 | 45.00 |
210031000.00 | 3 x 10 | 20.30 | 37.00 | 75.00 |
210033500.00 | 3 x 35 | 29.40 | 125.80 | 137.00 |
210035000.00 | 3 x 50 | 35.10 | 174.80 | 259.00 |
210040050.00 | 4 x 0.50 | 7.90 | 5.50 | 9.90 |
210040075.00 | 4 x 0.75 | 8.40 | 6.40 | 11.50 |
210040100.00 | 4 x 1 | 8.70 | 7.80 | 13.00 |
210040150.00 | 4 x 1.50 | 9.60 | 10.00 | 16.30 |
210040250.00 | 4 x 2.50 | 11.30 | 17.40 | 23.30 |
210040400.00 | 4 x 4 | 13.40 | 23.70 | 34.70 |
210040600.00 | 4 x 6 | 15.80 | 31.80 | 48.50 |
210041000.00 | 4 x 10 | 19.40 | 55.80 | 76.40 |
210041600.00 | 4 x 16 | 22.60 | 91.00 | 108.00 |
210042500.00 | 4 x 25 | 28.90 | 131.00 | 189.00 |
210043500.00 | 4 x 35 | 33.20 | 168.00 | 213.50 |
210045000.00 | 4 x 50 | 38.80 | 234.20 | 336.20 |
210047000.00 | 4 x 70 | 43.70 | 310.30 | 371.90 |
210049500.00 | 4 x 95 | 50.40 | 406.00 | 584.90 |
2100415000.00 | 4 x 150 | 62.20 | 630.00 | 780.00 |
2100418500.00 | 4 x 185 | 67.80 | 775.30 | 986.60 |
210050050.00 | 5 x 0.50 | 8.40 | 6.60 | 11.20 |
210050075.00 | 5 x 0.75 | 8.90 | 7.70 | 13.00 |
210050100.00 | 5 x 1 | 9.50 | 8.90 | 15.30 |
210050150.00 | 5 x 1.50 | 10.30 | 12.50 | 18.80 |
210050250.00 | 5 x 2.50 | 12.60 | 20.00 | 28.30 |
210050400.00 | 5 x 4 | 14.70 | 32.80 | 41.30 |
210050600.00 | 5 x 6 | 17.30 | 44.10 | 70.20 |
210051000.00 | 5 x 10 | 21.80 | 71.40 | 94.30 |
210051600.00 | 5 x 16 | 25.20 | 105.30 | 132.50 |
210052500.00 | 5 x 25 | 31.80 | 184.00 | 227.00 |
210053500.00 | 5 x 35 | 37.50 | 201.50 | 288.50 |
210070100.00 | 7 x 1 | 10.60 | 11.30 | 18.50 |
210070050.00 | 7 x 0.50 | 9.20 | 8.10 | 13.20 |
210070075.00 | 7 x 0.75 | 10.10 | 10.20 | 16.10 |
210070150.00 | 7 x 1.50 | 12.20 | 14.90 | 23.70 |
210070250.00 | 7 x 2.50 | 14.80 | 28.80 | 37.10 |
210070400.00 | 7 x 4 | 16.60 | 38.80 | 55.60 |
210070600.00 | 7 x 6 | 20.10 | 53.00 | 95.00 |
210120100.00 | 12 x 1 | 13.30 | 18.80 | 30.70 |
210120050.00 | 12 x 0.50 | 11.30 | 13.90 | 20.20 |
210120075.00 | 12 x 0.75 | 12.30 | 17.70 | 24.70 |
210120150.00 | 12 x 1.50 | 14.80 | 28.00 | 39.30 |
210120250.00 | 12 x 2.50 | 17.60 | 47.70 | 58.50 |
