Flex-CH POWER can be installed in all electrical systems in dry and damp interiors, especially in industrial environments, and can also be used outside; underwater installation is not permitted. Not suitable for constant moving. Flex-CH POWER is suitable as measuring, monitoring and control cable in the machine tool and plant engineering, in heat and air conditioning systems and refrigeration plants, etc.
FLEX-H POWER
0,6/1kV black

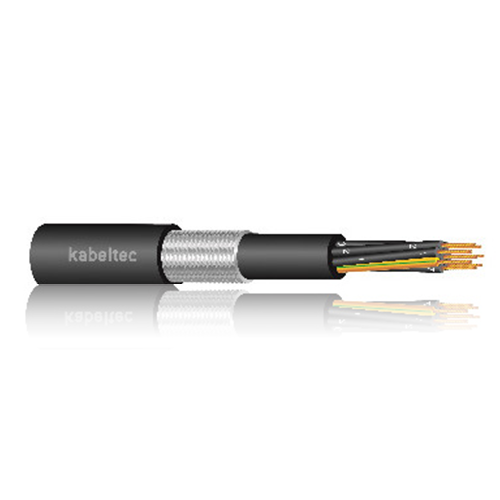

CONSTRUCTION:
- Fine strands of bare copper conductor
- Stranding acc. to EN 60228, class 5
- Black cores with white numbers
- Cores twisted together
- Inner sheath of special halogen free compound (single core cables without inner sheath)
- Screen is tinned copper wire braid with coverage ?85%
- Outer sheath of special halogen free compound, fire and oil resistant, resistant of UV – radiation
- Sheath colour: black RAL 9005
Technical Data:
| Conductor Material | Copper, bare |
| Conductor class | Class 5 |
| Core insulation | Special halogen free compound |
| Core identification | DIN VDE 0293: Black cores with white numerals |
| Stranding | Cores twisted in layers |
| Outer sheath | Special halogenfree compound, self-extinguishing, flame retardant |
| Sheath colour | Black RAL 9005 |
| Rated voltage [V] | 600 / 1000 |
| Testing voltage [V] | 4000 |
| Conductor resistance | 20 MΩ x km |
| Current carrying capacity | DIN VDE (see. technical guidelines) |
| Min. bending radius fixed [xd] | 6 x d |
| Min. bending radius moved [xd] | 10 x d |
| Working temp fixed min/max [C] | -40°C up to +80°C |
| Working temp moved min/mac [C] | -5°C up to +80°C |
| Temp at conductor max. | |
| Burning behaviour | EN 60332-1, EN 60332-3-24, cat. C |
| Approvals |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 2170112000.00 | 1 x 120 | 20.90 | 123.10 | 149.00 |
| 2170118500.00 | 1 x 185 | 26.80 | 190.50 | 230.40 |
| 2170124000.00 | 1 x 240 | 29.20 | 240.00 | 261.50 |
| 217020400.00 | 2 x 4.0 | 13.10 | 12.50 | 28.90 |
| 217020600.00 | 2 x 6 | 14.70 | 16.10 | 0.00 |
| 217023500.00 | 2 x 35 | 28.40 | 90.20 | 0.00 |
| 217030250.00 | 3 x 2.5 | 12.60 | 14.50 | 27.00 |
| 217030600.00 | 3 x 6 | 14.90 | 23.80 | 43.10 |
| 217040400.00 | 4 x 4 | 14.90 | 23.00 | 40.80 |
| 217041000.00 | 4 x 10 | 20.20 | 53.50 | 83.20 |
| 217050250.00 | 5 x 2.5 | 14.80 | 22.10 | 37.50 |
| 217055000.00 | 5 x 50 | 39.70 | 284.20 | 386.10 |
| 217057000.00 | 5 x 70 | 45.40 | 401.20 | 516.40 |
| 217070250.00 | 7 x 2.5 | 15.90 | 28.00 | 45.40 |
| 217120250.00 | 12 x 2.5 | 20.60 | 42.90 | 0.00 |
| 217190250.00 | 19 x 2.5 | 24.50 | 61.80 | 0.00 |
