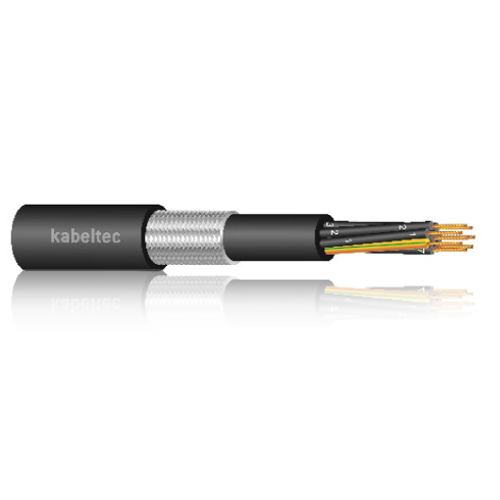

Flex-CH POWER 0.6/1kV

CONSTRUCTION:

– fine strands of bare copper conductor
– cores black with continuous white figure imprint
– core insulation: halogen-free compound
– stranding acc. to VDE 0295 class 5
– earth conductor green/yellow
– cores twisted in layers
– copper screen braiding of tinned copper wires 85% coverage
– outer sheath: halogen-free compound black

TECHNICAL DATA:
Conductor Material: copper, bare
Conductor class: Class 5 according VDE 0295 resp IEC 60228
Core insulation: Halogen-free compound
Core identification: Acc. to DIN VDE 0293: Black cores with consecutive white
Numerals
Stranding: Cores twisted in layers
Outer sheath: Halogen-free compound
Sheath colour: black
Rated voltage [V]: 600/1000
Testing voltage [V]: 6000
Conductor resistance:
Insulation resistance:
Current carrying capacity: DIN VDE (s. technical guidelines)
Min. bending radius fixed [xd]: 6 x d
Min. bending radius moved [xd]: 20 x d
Working temp fixed min/max [C]: -40°C up to +80°C
Working temp moved min/mac [C]: -15°C up to +70°C
Temp at conductor max.:
Burning behaviour: self-extinguishing, flame resistant
Approvals: Self-extinguish according to test method B IEC 60332-1
Flame-resistant according to IEC 60 332.3-24
Halogen-free according to IEC 60754-1
(amount of halogen acid gas)
Corrosiveness of combustion gases according to IEC
60754-2 (degree of acidity)
Low smoke density according to IEC 61034
UV and weather-resistant according to ISO 4892-2
