In covered places where people are densely found: – Instrumentation and control engineering – Industrial electronics – For signal transmission – Intercommunication systems in buildins – In safety and fire alarm systems – In places where human life and valuable materials and equipment need to be protected

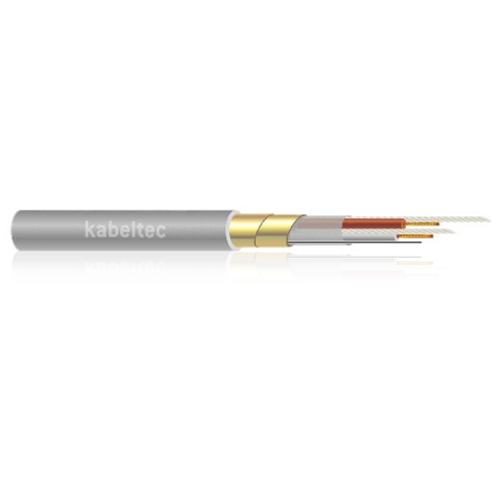

CONSTRUCTION:
- Flame retardant charcteristic
- Low smoke emission
- Without poisoned and corrosive gases
- Colour code: DIN 47100
- Wrapping: PES TAPE
- Wrapping: tinned copper drain wire; al-pes tape
- sheath: EN 50290-27 HFFR compound
- Temperature range: 30 °C up to +80 °C
Technical Data:
Conductor Material |
IEC 60228, DIN VDE 0295, EN 60228 Class 5 electrolytic stranded copper
|
Conductor class | Class 5 |
Core insulation | * |
Core identification | * |
Stranding | Pairwise, pairs in layers |
Outer sheath | * |
Sheath colour | RAL 9003 white |
Rated voltage [V] | 300 / 500 |
Testing voltage [V] | 2000 |
Conductor resistance | * |
Insulation resistance | * |
Current carrying capacity | * |
Min. bending radius fixed [xd] | 7.5xcable |
Min. bending radius moved [xd] | * |
Working temp fixed min/max [C] | -30°C up to +70 °C |
Working temp moved min/mac [C] | -5 °C up to +70 °C |
Temp at conductor max. | * |
Burning behaviour | * |
Approvals |
– Insulation Integrity for minimum 180 minutes (FE 180)
– Insulation Integrity with mechanical shock (PH 90) – Flame Retardant Test: IEC 60332-1-2, VDE0482-332-1-2, EN 60332-1-2 – Flame propagation: IEC 60332-3-24, VDE0482-332-3-24, EN 60332-3-24 – Smoke density: IEC 61034-2, VDE 0482-1034-2, EN61034-2 – Corrosive Gas test: IEC 60754-2, VDE 0482-267-2-3, EN50267-2-3 – Halogen free test: IEC 60754-1, VDE 0482-267-2-1, EN50267-2-1 – Circuit Integrity (FE 180): IEC 60331-23 – Circuit Integrity with shock (PH 90): EN 50200, VDE |
PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
---|---|---|---|---|
881110100.00 | 1 x 2 x 1.0 | 5.6 - 0.5 | 0.00 | 4.60 |
881110075.00 | 1 x 2 x 0.75 | 5.2 - 0.5 | 0.00 | 4.00 |
881110150.00 | 1 x 2 x 1.5 | 6.2 - 0.5 | 0.00 | 5.80 |
881120075.00 | 2 x 2 x 0.75 | 7.7 - 0.5 | 0.00 | 7.20 |
881120100.00 | 2 x 2 x 1.0 | 8.3 - 0.5 | 0.00 | 6.05 |
