In covered places where people are densely found: – Instrumentation and control engineering – Industrial electronics – For signal transmission – Intercommunication systems in buildins – In safety and fire alarm systems – In places where human life and valuable materials and equipment need to be protected

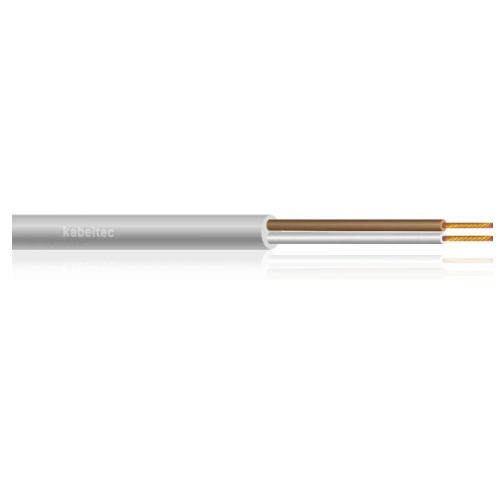

FIREFIT LIHH – TP FE180PH90
CONSTRUCTION:
- Flame retardant characteristic
- Low smoke emission
- Without poisoned and corrosive gases
- DIN 47100
- EN 50290-2-27 HFFR compound
Temperature range: -30°C up to +80°C
Technical Data:
| Conductor Material |
IEC 60228, DIN VDE 0295, EN 60228 Class 5 electrolytic stranded copper
|
| Conductor class | Class 5 |
| Core insulation | cross-linked ceramic forming polymer compound |
| Core identification | * |
| Stranding | Pairwise, pairs in layers |
| Outer sheath | * |
| Sheath colour | RAL 9003 white |
| Rated voltage [V] | 300 / 500 |
| Testing voltage [V] | 2000 |
| Conductor resistance | * |
| Insulation resistance | * |
| Current carrying capacity | * |
| Min. bending radius fixed [xd] | 7.5xcable |
| Min. bending radius moved [xd] | * |
| Working temp fixed min/max [C] | -30 °C up to +80 °C |
| Working temp moved min/mac [C] | -5 °C up to +70 °C |
| Temp at conductor max. | * |
| Burning behaviour | * |
| Approvals |
– Insulation Integrity for minimum 180 minutes (FE 180)
– Insulation Integrity with mechanical shock (PH 90) – Flame Retardant Test: IEC 60332-1-2, VDE0482-332-1-2, EN 60332-1-2 – Flame propagation: IEC 60332-3-24, VDE0482-332-3-24, EN 60332-3-24 – Smoke density: IEC 61034-2, VDE 0482-1034-2, EN61034-2 – Corrosive Gas test: IEC 60754-2, VDE 0482-267-2-3, EN50267-2-3 – Halogen free test: IEC 60754-1, VDE 0482-267-2-1, EN50267-2-1 – Circuit Integrity (FE 180): IEC 60331-23 – Circuit Integrity with shock (PH 90): EN 50200, VDE0482-200, BS EN 50200 |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 881010100.00 | 1 x 2 x 1.0 | 5.6 - 0.5 | 0.00 | 5.30 |
| 881010150.00 | 1 x 2 x 1.50 | 6.0 - 0.5 | 0.00 | 6.45 |
| 881010250.00 | 1 x 2 x 2.50 | 7.4 - 0.5 | 0.00 | 10.00 |
