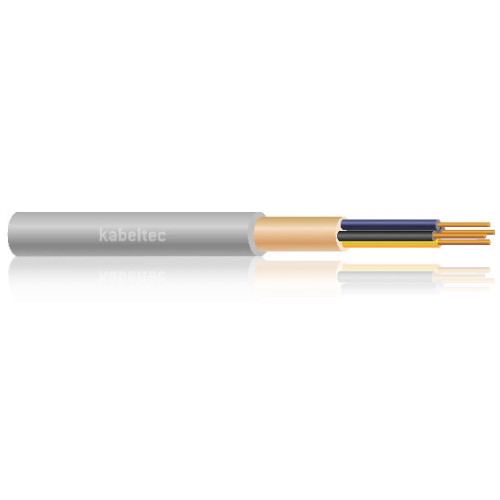

FG16R16_FG16OR160,6_1kV(formerlyFG7R_FG7OR)

FG16R16/FG16OR 16 0,6/1kV (früher FG7R/FG7OR)

Flexible or rigid power control cable for fixed installations not propagating fire and width low corrosive gas emission. G7 quality HEPR insulated.
TOTAL PRICE

SGD 0.00

Power and control use outdoor and indoor applications, even wet. Suitable for fixed installations at open air, in tube or canals, masonry, metals structures, overhead wire and for direct or indirect underground wiring. Not indicated for connection with photovoltaic panels.

CONSTRUCTION:

  • Insulation: HEPR insulation in G16 quality
  • Sheath: PVC sheath in R16 quality
  • Filles: thermoplastic compound, fire-resistant with reduced release of corrosive gases, not water-absorbing
  • Flexible conductor, class 5 copper made
  • Not fibrous and not hygroscopic filler
  • Standards: CEI 20-13 IEC 60502-2 CEI UNEL 35375-35377 CEI 20-22 II CEI EN60332-1-2 CEI EN 50267-2-1

TECHNICAL DATA:

Conductor Material:  Copper, fine wire copper conductor
Conductor class:  Class 5
Core insulation:  Rubber compound, G16 quality

PART NUMBER CORES OUTER DIAMETER COPPER WEIGHT
KG/100M		 WEIGHT
KG/100M
1 x 1.50 6.7 5.1
1 x 2.50 7.2 6.3
1 x 4 7.8 8.2
1 x 6 8.4 10.1
1 x 10 9.4 15.2
1 x 16 10.4 21.1
1 x 25 12.2 30.1
1 x 35 13.6 39.6
1 x 50 15.4 55.6
1 x 70 17.4 76.1
1 x 95 19.4 99.1
1 x 120 21.4 121.9
1 x 150 23.8 151.7
1 x 185 26 182.1
1 x 240 29.2 236.6
1 x 300 32 294.7
1 x 400 36.5 387
2 x 1.50 12 12.5
2 x 2.50 13 15.1
2 x 4 14.2 20.7
2 x 6 15.4 25.6
2 x 10 17.3 39.5
2 x 16 19.4 57.6
2 x 25 23 80.6
2 x 35 25.7 105.2
2 x 50 29.3 146.5
2 x 70 30.8 228.2
2 x 95 33.9 291.7
2 x 120 37.9 367.8
2 x 150 42 402.8
3 x 1.50 12.5 13.9
3 x 2.50 13.6 18.5
3 x 4 14.9 24.6
3 x 6 16.2 31.3
3 x 10 18.2 50.3
3 x 10 16.5 50.3
3 x 16 20.6 63.7
3 x 25 24.5 99.1
3 x 35 27.3 137
3 x 35 + 1x25 29.2 161.1
3 x 50 31.2 194.1
3 x 50 + 1x25 32.4 214.2
3 x 70 35.6 268
3 x 70 + 1x35 37 303.7
3 x 95 40 348.7
3 x 95 + 1x50 42 404.7
3 x 120 44.4 440.6
3 x 120 + 1x70 46.9 532.7
3 x 150 49.5 544
3 x 150 + 1x95 52 663.5
3 x 185 55.2 675
3 x 185 + 1x95 57.3 783.3
3 x 240 61.9 877.8
3 x 240 + 1x150 65.5 1047.6
4 x 1.50 13.4 17.1
4 x 2.50 14.6 22.2
4 x 4 16 29.7
4 x 6 17.5 39.2
4 x 10 19.8 61.1
4 x 16 22.4 88.6
4 x 25 26.8 12.55
5 x 1.50 14.4 20.4
5 x 2.50 15.6 26.6
5 x 4 17.3 36.1
5 x 6 18.9 47.1
5 x 10 21.5 75.6
5 x 16 24.4 111.9
5 x 25 29.3 158.7
5 x 35 32.8 214
5 x 50 38.2 300.4
7 x 1.50 13.15 24.7
7 x 2.50 14.2 34.3
10 x 1.50 15.24 35.3
10 x 2.50 17.74 49.2
12 x 1.50 16.1 38
12 x 2.50 17.9 53.7
16 x 1.50 18.8 54.9
16 x 2.50 19.9 84.8
19 x 1.50 19.7 61.2
19 x 2.50 22.8 104.9
24 x 1.50 22.3 73.3
24 x 2.50 25.9 114
27 x 1.50 23.99 82.9
27 x 2.50 26.78 123.4
30 x 1.50 24.77 89.4
30 x 2.50 27.64 133.1
1 x 1.50 6.7 5.1
1 x 2.50 7.2 6.3
1 x 4 7.8 8.2
1 x 6 8.4 10.1
1 x 10 9.4 15.2
1 x 16 10.4 21.1
1 x 25 12.2 30.1
1 x 35 13.6 39.6
1 x 50 15.4 55.6
1 x 70 17.4 76.1
1 x 95 19.4 99.1
1 x 120 21.4 121.9
1 x 150 23.8 151.7
1 x 185 26 182.1
1 x 240 29.2 236.6
1 x 300 32 294.7
1 x 400 36.5 387
2 x 1.50 12 12.5
2 x 2.50 13 15.1
2 x 4 14.2 20.7
2 x 6 15.4 25.6
2 x 10 17.3 39.5
2 x 16 19.4 57.6
2 x 25 23 80.6
2 x 35 25.7 105.2
2 x 50 29.3 146.5
2 x 70 30.8 228.2
2 x 95 33.9 291.7
2 x 120 37.9 367.8
2 x 150 42 402.8
3 x 1.50 12.5 13.9
3 x 2.50 13.6 18.5
3 x 4 14.9 24.6
3 x 6 16.2 31.3
3 x 10 18.2 50.3
3 x 10 16.5 50.3
3 x 16 20.6 63.7
3 x 25 24.5 99.1
3 x 35 27.3 137
3 x 35 + 1x25 29.2 161.1
3 x 50 31.2 194.1
3 x 50 + 1x25 32.4 214.2
3 x 70 35.6 268
3 x 70 + 1x35 37 303.7
3 x 95 40 348.7
3 x 95 + 1x50 42 404.7
3 x 120 44.4 440.6
3 x 120 + 1x70 46.9 532.7
3 x 150 49.5 544
3 x 150 + 1x95 52 663.5
3 x 185 55.2 675
3 x 185 + 1x95 57.3 783.3
3 x 240 61.9 877.8
3 x 240 + 1x150 65.5 1047.6
4 x 1.50 13.4 17.1
4 x 2.50 14.6 22.2
4 x 4 16 29.7
4 x 6 17.5 39.2
4 x 10 19.8 61.1
4 x 16 22.4 88.6
4 x 25 26.8 12.55
5 x 1.50 14.4 20.4
5 x 2.50 15.6 26.6
5 x 4 17.3 36.1
5 x 6 18.9 47.1
5 x 10 21.5 75.6
5 x 16 24.4 111.9
5 x 25 29.3 158.7
5 x 35 32.8 214
5 x 50 38.2 300.4
7 x 1.50 13.15 24.7
7 x 2.50 14.2 34.3
10 x 1.50 15.24 35.3
10 x 2.50 17.74 49.2
12 x 1.50 16.1 38
12 x 2.50 17.9 53.7
16 x 1.50 18.8 54.9
16 x 2.50 19.9 84.8
19 x 1.50 19.7 61.2
19 x 2.50 22.8 104.9
24 x 1.50 22.3 73.3
24 x 2.50 25.9 114
27 x 1.50 23.99 82.9
27 x 2.50 26.78 123.4
30 x 1.50 24.77 89.4
30 x 2.50 27.64 133.1
