Power and control use in outdoor and indoor applications, even wet. Suitable for fixed installations at open air, in tube or canals, masonry, metal structures, overhead wire or for direct and indirect underground laying. The most important property of this kind of cable is its copper screen protection against electromagnetic interferences. It is especially suitable for signals and control supply in industrial and civil environments and for low voltage system.

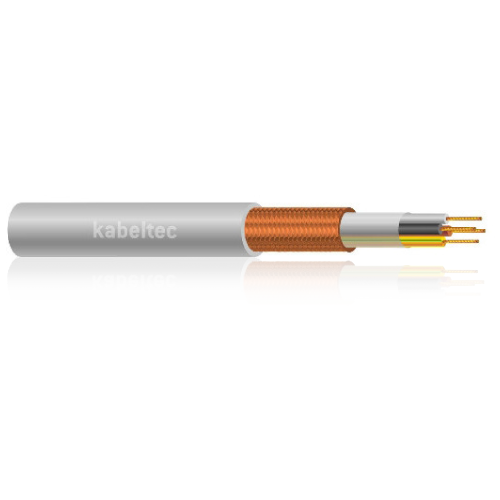

- HEPR core insulation
- Copper screen
- PVC outer sheath
TECHNICAL DATA:
Conductor Material: | bare copper |
Conductor class: | class 5 |
Core insulation: | HEPR insulation in G7 quality |
Core identification: | two cores: blue-brown |
three cores: brown-black-gray (or blue-brown-Y/G) | |
four cores: blue-brown-black gray (or Y/G instead blue) | |
five cores: Y/G-blue-brown-black.grey (or black instead Y/G) | |
Multicores: black with numbers | |
Stranding: | * |
Outer sheath: | PVC sheath in R16 quality |
Sheath colour: | Light grey RAL 7035 |
Rated voltage [V]: | 0.6/1 kV |
Testing voltage [V]: | 4000 |
Conductor resistance: | * |
Insulation resistance: | * |
Current carrying capacity: | * |
Min. bending radius fixed [xd]: | * |
Min. bending radius moved [xd]: | * |
Working temp fixed min/max [C]: | -15°C up to +90°C |
Working temp moved min/mac [C]: | -15°C up to +90°C |
Temp at conductor max.: | +90°C |
Burning behaviour: | * |
Approvals: | Standards: |
CEI 20-13 | |
IEC 60502-1 | |
CEI UNEL 35375 | |
CEI UNEL 35377 | |
CEI 20-22 II | |
CEI EN 60332-1-2 | |
CEI EN 50267-2-1 |
PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
---|---|---|---|---|
2 x 1.50 | 10 | 12.6 | ||
2 x 2.50 | 11.2 | 12.6 | ||
2 x 4 | 12.2 | 17.5 | ||
2x6 | 13.2 | 20 | ||
2 x 10 | 15.1 | 24.6 | ||
2 x 25 | 20.6 | 34.1 | ||
2 x 35 | 26.6 | 73 | ||
2 x 50 | 30.5 | 183 | ||
2 x 70 | 34.3 | 257.1 | ||
2 x 50 | 30.5 | 183 | ||
2 x 70 | 34.3 | 257.1 | ||
2 x 95 | 38.6 | 314.3 | ||
2 x 120 | 43 | 431.6 | ||
2 x 150 | 47.5 | 554.7 | ||
3 x 1.50 | 11.2 | 17.5 | ||
3 x 2.50 | 14.3 | 31.6 | ||
3 x 4 | 15.6 | 38 | ||
3 x 6 | 16.9 | 45.6 | ||
3 x 10 | 19.2 | 67.5 | ||
3 x 16 | 21.5 | 93.9 | ||
3 x 25 | 25.4 | 134.6 | ||
3 x 35 | 28.3 | 174.4 | ||
3 x 35 + 1x25 | 30.4 | 203.8 | ||
3 x 50 | 32.4 | 226.2 | ||
3 x 50 + 1x25 | 33.6 | 260.6 | ||
3 x 70 | 36.8 | 318.8 | ||
3 x 70 + 1x35 | 38.2 | 354 | ||
3 x 95 | 41.2 | 430.9 | ||
3 x 95 + 1x50 | 43.4 | 481.8 | ||
3 x 120 | 45.8 | 563.5 | ||
3 x 120 + 1x70 | 48.3 | 635.8 | ||
3 x 150 | 50.9 | 692.1 | ||
3 x 150 | 53.9 | 785.2 | ||
3 x 185 | 56.6 | 807.9 | ||
3 x 185 + 1x95 | 58.8 | 906.6 | ||
3 x 240 | 63.3 | 1063.9 | ||
3 x 240 + 1x150 | 66.9 | 1207.8 | ||
4 x 1.50 | 12 | 20.4 | ||
4 x 2.50 | 15.3 | 35.7 | ||
4 x 4 | 16.7 | 43.8 | ||
4 x 6 | 18.4 | 53.5 | ||
4 x 10 | 20.8 | 80.2 | ||
4 x 16 | 23.4 | 116.4 | ||
4 x 25 | 27.7 | 166.4 | ||
4 x 25 | 27.7 | 166.4 | ||
5 x 1.50 | 15.1 | 35.1 | ||
5 x 2.50 | 16.4 | 42.4 | ||
5 x 4 | 18.2 | 52.7 | ||
5 x 6 | 19.8 | 65.3 | ||
5 x 10 | 22.4 | 102.7 | ||
5 x 16 | 25.4 | 141.5 | ||
5 x 25 | 30.5 | 202.2 | ||
5 x 35 | 34 | 243 | ||
5 x 50 | 69.4 | 335 | ||
7 x 1.50 | 15.1 | 39.9 | ||
7 x 2.50 | 17.8 | 49.6 | ||
10 x 1.50 | 19.7 | 50.3 | ||
10 x 2.50 | 21.6 | 64.4 | ||
12 x 1.50 | 20.2 | 57.4 | ||
12 x 2.50 | 22.2 | 73.2 | ||
16 x 1.50 | 22 | 69 | ||
16 x 2.50 | 24.3 | 95 | ||
19 x 1.50 | 23 | 81.3 | ||
19 x 2.50 | 25.4 | 105.6 | ||
24 x 1.50 | 26.4 | 97.2 | ||
24 x 2.50 | 29.3 | 128.1 |
