Earthing cable with braided fine-wire conductor core for use in portable earthing and short-circuit devices. Particularly for repair work on high-voltage systems for the safety of technical personnel.

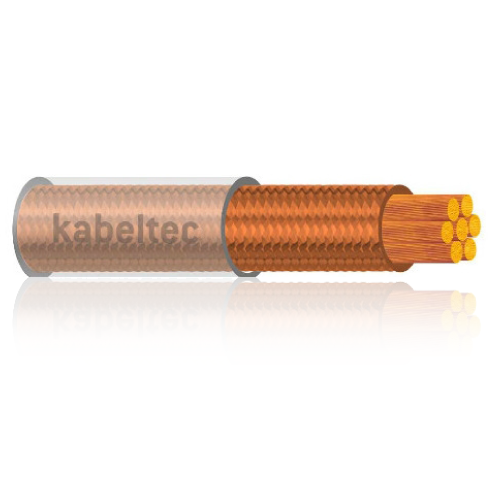

ESUY
Earthing conductor
CONSTRUCTION:
Bare copper strands
Bare copper wire braid
Classification: ETIM 5.0
Class-ID: 000993 ETIM 5.0
Class-Description:
Technical Data:
| Conductor Material: | Copper, Bare |
| Conductor class: | Class 6 |
| Core insulation: | PVC |
| Core identification: | |
| Stranding: | |
| Outer sheath: | Special PVC-compound |
| Sheath colour: | Transparent |
| Rated voltage [V]: | |
| Testing voltage [V] | 2000 |
| Conductor resistance: | |
| Insulation resistance: | min. 20 MΩ x km |
| Current carrying capacity: | VDE 0105 part 1/5.75 |
| Min. bending radius fixed [xd]: | 10 x d |
| Min. bending radius moved [xd]: | 12 x d |
| Working temp fixed min/max [C]: | -40°C up to +70°C |
| Working temp moved min/max [C: | -5°C up to +70°C |
| Temp at conductor max.: | |
| Burning behaviour: | IEC 60332-1-2 |
| Approvals: |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 351001600.00 | 1 x 16 | 9.20 | 19.40 | 23.00 |
| 351002500.00 | 1 x 25 | 10.70 | 28.00 | 31.60 |
| 351003500.00 | 1 x 35 | 12.50 | 41.50 | 57.50 |
| 351005000.00 | 1 x 50 | 14.50 | 58.50 | 67.00 |
| 351007000.00 | 1 x 70 | 17.20 | 82.00 | 91.00 |
| 351009500.00 | 1 x 95 | 19.80 | 109.00 | 122.00 |
| 3510012000.00 | 1 x 120 | 23.20 | 136.00 | 150.50 |
| 3510015000.00 | 1 x 150 | 26.30 | 165.00 | 194.50 |
| 3510018500.00 | 1 x 185 | 30.00 | 215.00 | 239.50 |
| 3510024000.00 | 1 x 240 | 33.00 | 275.00 | 309.50 |
