For application in intrinsically safe appendix as control, connecting and data transmission cable in measurement and control technology.
Suitable for use in dry and moist rooms, no laying underground. For fixed laying and flexible applications with undefined cable routing and without tensile stress.
Largely oil and fuel resistant.
Also available without green/yellow protective conductor.

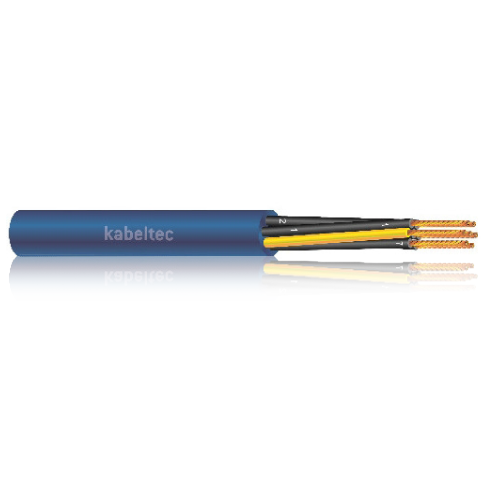

ES-BL-OZ/JZ
Cables for intrinsically safe electric circuts
Construction
- Fine strands of plain copper conductor
- Stranding as per VDE 0295, class 5
- Cores consecutive numbered
- Cores twisted in layers
- Colour of sheath blue, RAL 5015
Technical Data:
Conductor Material: Copper, bare
Conductor class: Class 5 acc. to DIN VDE 0295 or IEC 60228
Core insulation: PVC
Core identification: DIN VDE 0293: Black cores with consecutive white numerals
Stranding: Cores twisted in layers
Outer sheath: PVC
Sheath colour: Blue (RAL 5015)
Rated voltage [V]: 300 / 500
Testing voltage [V]: 3000
Insulation resistance: 20 MΩ x km
Current carrying capacity: DIN VDE (see technical guidelines)
Min. bending radius fixed [xd]: up to 12mm Ø: 5 x d > 12mm Ø: 7,5
Min. bending radius moved [xd]: up to 12mm Ø: 10 x d
up to 20mm Ø: 15 x d > 20mm Ø: 20
Working temp fixed min/max [C]: -30°C up to +80°C
Working temp moved min/mac [C]: -5°C up to +70°C
Temp at conductor max.
Burning behaviour: IEC 60332-1-2: flame-retardant and self-extinguishing
Approvals: EN 50525-2-51, DIN EN 60079-14
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 31020075.00 | 2 x 0.75 OZ | 5.50 | 1.47 | 5.00 |
| 310020100.00 | 2 x 1 OZ | 5.80 | 2.00 | 5.70 |
| 310020150.00 | 2 x 1.50 OZ | 6.60 | 2.90 | 8.00 |
| 31030075.00 | 3 x 0.75 JZ | 5.80 | 2.20 | 5.40 |
| 31030100.00 | 3 x 1 JZ | 6.30 | 3.00 | 6.70 |
| 310030075.00 | 3 x 0.75 OZ | 5.70 | 2.20 | 6.00 |
| 31030100OZ | 3 x 1 OZ | 6.00 | 2.90 | 7.30 |
| 31030150.00 | 3 x 1.50 JZ | 7.00 | 4.30 | 8.60 |
| 310030150.00 | 3 x 1.50 OZ | 6.80 | 4.30 | 10.50 |
| 31040075.00 | 4 x 0.75 JZ | 6.60 | 2.90 | 6.60 |
| 31040100.00 | 4 x 1 JZ | 7.00 | 3.90 | 8.30 |
| 310040075.00 | 4 x 0.75 OZ | 6.30 | 2.90 | 8.10 |
| 31040100OZ | 4 x 1 OZ | 6.60 | 3.80 | 8.60 |
| 31040150.00 | 4 x 1.50 JZ | 8.00 | 5.80 | 11.00 |
| 31040150OZ | 4 x 1.50 OZ | 7.40 | 5.80 | 12.50 |
| 31050075.00 | 5 x 0.75 JZ | 7.50 | 3.60 | 8.00 |
| 31050100.00 | 5 x 1 JZ | 7.80 | 4.80 | 10.50 |
| 310050075.00 | 5 x 0.75 OZ | 6.70 | 3.68 | 8.80 |
| 310050100.00 | 5 x 1 OZ | 7.10 | 4.94 | 10.50 |
| 31050150.00 | 5 x 1.50 JZ | 8.80 | 7.20 | 14.00 |
| 310050150.00 | 5 x 1.50 OZ | 8.10 | 7.20 | 13.90 |
| 31070075.00 | 7 x 0.75 JZ | 8.10 | 5.00 | 11.00 |
| 31070100.00 | 7 x 1 JZ | 8.70 | 6.70 | 19.00 |
| 31070075OZ | 7 x 0.75 OZ | 7.50 | 5.20 | 11.50 |
| 31070100OZ | 7 x 1 OZ | 8.10 | 6.70 | 14.10 |
| 31070150.00 | 7 x 1.50 JZ | 9.90 | 10.10 | 18.00 |
| 31070150OZ | 7 x 1.50 OZ | 9.20 | 10.10 | 18.40 |
| 31120075.00 | 12 x 0.75 JZ | 11.20 | 8.60 | 17.60 |
| 31120100.00 | 12 x 1 JZ | 11.70 | 11.50 | 22.50 |
| 310120075.00 | 12 x 0.75 OZ | 9.90 | 8.82 | 18.50 |
| 310120100.00 | 12 x 1 OZ | 10.50 | 11.84 | 23.10 |
| 31120150.00 | 12 x 1.50 JZ | 13.60 | 17.30 | 33.90 |
| 31180075.00 | 18 x 0.75 JZ | 12.00 | 13.00 | 26.00 |
| 31180100.00 | 18 x 1 JZ | 14.30 | 17.30 | 35.00 |
| 310180075.00 | 18 x 0.75 OZ | 11.70 | 13.23 | 28.20 |
| 310180100.00 | 18 x 1 OZ | 12.70 | 17.77 | 33.10 |
| 31180150.00 | 18 x 1.50 JZ | 16.40 | 25.90 | 51.30 |
| 31250075.00 | 25 x 0.75 JZ | 16.70 | 18.00 | 37.00 |
| 31250100.00 | 25 x 1 JZ | 17.50 | 24.00 | 50.00 |
| 310250075.00 | 25 x 0.75 OZ | 14.30 | 18.00 | 39.30 |
| 31250150.00 | 25 x 1.50 JZ | 19.40 | 36.00 | 69.80 |
