APPLICATION
For application in intrinsically safe sector.
Largely oil and fuel resistant. Twisted pairs and copper screening allow a secure transfer of data without corruptions.

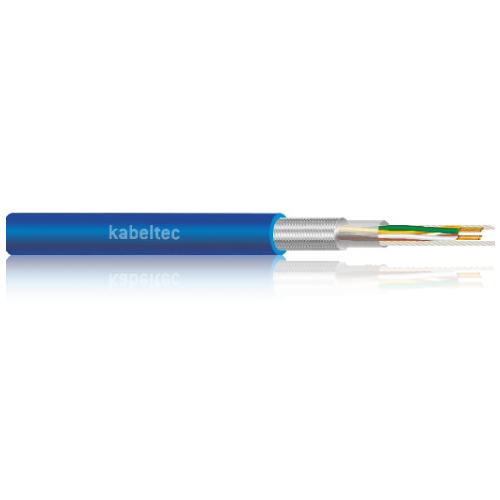

ES-BL-CY paired
Cables for intrinsically safe electric circuts
CONSTRUCTION:
- Fine strands of plain copper conductor
- PVC insulated cores
- Cores twisted into pairs
- Pairs twisted in layers
- Cores coloured as per DIN 47100
- Film wrapping
- Screen braiding of tinned copper wire
- Colour of sheath blue, RAL 5015
TECHNICAL DATA:
| Conductor Material | Copper, bare |
| Conductor class | Class 5 |
| Core insulation | PVC |
| Core identification | DIN 47100 |
| Stranding | 2 cores twisted into pairs; pairs stranded in layers |
| Outer sheath | PVC |
| Sheath colour | Blue (RAL 5015) |
| Rated voltage [V] | 300 / 500 |
| Testing voltage [V] | Core/core: 1500; core/shield: 2000 |
| Conductor resistance | acc. to DIN VDE 0295 Cl.5 |
| Insulation resistance | 20 MΩ x km |
| Current carrying capacity | acc. to DIN VDE |
| Min. bending radius fixed [xd] | 6 x d |
| Min. bending radius moved [xd] | 15 x d |
| Working temp fixed min/max [C] | -30°C up to +80°C |
| Working temp moved min/mac [C] | -5°C up to +70°C Temp at conductor max. |
| Burning behaviour | IEC 60332-1: flame-retardant and self-extinguishing |
| Approvals | DIN VDE 0245 and 0250 |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 320020050.00 | 2 x 2 x 0.50 | 8.20 | 4.60 | 8.70 |
| 320020075.00 | 2 x 2 x 0.75 | 8.80 | 6.00 | 10.60 |
| 320030050.00 | 3 x 2 x 0.50 | 9.10 | 6.40 | 10.90 |
| 320030075.00 | 3 x 2 x 0.75 | 9.70 | 9.20 | 14.00 |
| 320040050.00 | 4 x 2 x 0.50 | 10.30 | 8.20 | 13.90 |
| 320040075.00 | 4 x 2 x 0.75 | 11.00 | 11.00 | 17.90 |
| 320050075.00 | 5 x 2 x 0.75 | 10.90 | 12.60 | 21.50 |
| 320060050.00 | 6 x 2 x 0.50 | 12.30 | 11.00 | 19.70 |
| 320060075.00 | 6 x 2 x 0.75 | 13.30 | 14.60 | 24.60 |
| 320080050.00 | 8 x 2 x 0.50 | 13.30 | 13.60 | 23.80 |
| 320080075.00 | 8 x 2 x 0.75 | 14.90 | 18.00 | 30.50 |
| 320120050.00 | 12 x 2 x 0.50 | 15.30 | 18.60 | 32.40 |
| 320120075.00 | 12 x 2 x 0.75 | 17.90 | 27.00 | 45.60 |
| 320160050.00 | 16 x 2 x 0.50 | 17.90 | 24.00 | 44.60 |
| 320160075.00 | 16 x 2 x 0.75 | 20.10 | 32.80 | 56.40 |
| 320200050.00 | 20 x 2 x 0.50 | 19.20 | 29.20 | 52.50 |
| 320200075.00 | 20 x 2 x 0.75 | 21.60 | 42.50 | 67.10 |
| 320240050.00 | 24 x 2 x 0.50 | 20.80 | 34.60 | 59.20 |
| 320240075.00 | 24 x 2 x 0.75 | 24.40 | 49.00 | 79.30 |
| 320250050.00 | 25 x 2 x 0.50 | 20.90 | 35.80 | 62.20 |
| 320250075.00 | 25 x 2 x 0.75 | 24.40 | 53.00 | 80.50 |
