For application in intrinsically safe appendix as control, connecting and data transmission cable in measurement and control technology for lossless data and signal transmission. Suitale for use in dry and moist rooms, no laying underground. For fixed laying and flexible applications with undefined cable routing and without tensile stress. Largely oil and fuel resistant.

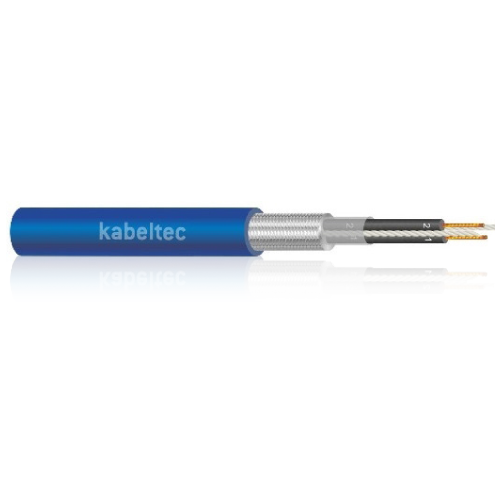

ES-BL-CY-OZ
Cables for intrinsically safe electric circuts
CONSTRUCTION:
- Fine strands of plain copper conductor
- Cores consecutive numbered without green/yellow protective conductor
- Stranding as per VDE 0295, class 5
- Screen of tinned copper wire
- Cores twisted in layers
- Colour of sheath blue, RAL 5015
Technical Data:
| Conductor Material | opper, bare |
| Conductor class | Class 5 acc. to DIN VDE 0295 or IEC 60228 |
| Core insulation | PVC |
| Core identification | DIN VDE 0293: Black cores numbered |
| Stranding | Cores twisted in layers |
| Outer sheath | PVC |
| Sheath colour | Blue (RAL 5015) |
| Rated voltage | [V] 300 / 500 |
| Testing voltage | [V] 3000 |
| Conductor resistance | DIN VDE 0295 Cl.5 |
| Insulation resistance | 20 MΩ x km |
| Current carrying capacity | DIN VDE (see technical guidelines) |
| Min. bending radius fixed [xd] | up to 12mm Ø: 5 x d >12mm Ø: 7,5 |
| Min. bending radius moved [xd] | up to 12mm Ø: 10 x d up to 20mm Ø: 15 x d > 20mm Ø: 20 x d |
| Working temp fixed min/max [C] | -30°C up to +80°C |
| Working temp moved min/mac [C] | -5°C up to +70°C Temp at conductor max. |
| Burning behaviour | IEC 60332-1: flame-retardant and self-extinguishing |
| Approvals | DIN VDE 0245 and 0250 IEC 60079-14 / EN 60079-14 / VDE 0165-1 |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 32020050.00 | 2 x 0.50 | 5.80 | 2.30 | 3.60 |
| 32020075.00 | 2 x 0.75 | 6.20 | 4.30 | 5.60 |
| 32020100.00 | 2 x 1 | 6.50 | 5.20 | 8.40 |
| 32020150.00 | 2 x 1.50 | 7.10 | 6.50 | 9.70 |
| 32030050.00 | 3 x 0.50 | 6.50 | 3.50 | 4.70 |
| 32030075.00 | 3 x 0.75 | 6.50 | 5.20 | 7.00 |
| 32030100.00 | 3 x 1 | 6.90 | 6.30 | 11.00 |
| 32030150.00 | 3 x 1.50 | 7.50 | 8.20 | 12.50 |
| 32040050.00 | 4 x 0.50 | 7.10 | 4.50 | 6.30 |
| 32040075OZ | 4 x 0.75 | 7.00 | 6.10 | 9.50 |
| 32040100.00 | 4 x 1 | 7.30 | 7.50 | 13.00 |
| 32040150.00 | 4 x 1.50 | 8.20 | 10.00 | 16.50 |
| 32050050.00 | 5 x 0.50 | 7.70 | 5.70 | 6.70 |
| 32050075.00 | 5 x 0.75 | 7.70 | 7.20 | 13.00 |
| 32050100.00 | 5 x 1 | 8.10 | 9.00 | 15.60 |
| 32050150.00 | 5 x 1.50 | 9.00 | 12.00 | 19.30 |
| 32070050.00 | 7 x 0.50 | 8.30 | 8.00 | 8.40 |
| 32070075.00 | 7 x 0.75 | 8.40 | 9.00 | 17.00 |
| 32070100.00 | 7 x 1 9.00 | 9.00 | 11.20 | 19.20 |
| 32070150.00 | 7 x 1.50 | 10.00 | 15.90 | 24.50 |
| 32120050.00 | 12 x 0.50 | 10.80 | 11.20 | 15.60 |
| 32120075.00 | 12 x 0.75 | 11.00 | 14.00 | 23.40 |
| 32120100.00 | 12 x 1 | 11.50 | 18.50 | 28.50 |
| 32120150.00 | 12 x 1.50 | 13.00 | 27.00 | 36.50 |
| 32180075.00 | 18 x 0.75 | 12.70 | 21.10 | 31.50 |
| 32180100.00 | 18 x 1 | 13.90 | 26.80 | 39.50 |
| 32180150.00 | 18 x 1.5 | 15.60 | 37.30 | 55.30 |
| 32250075.00 | 25 x 0.75 | 14.80 | 28.00 | 43.50 |
| 32250100.00 | 25 x 1 | 15.90 | 35.40 | 65.60 |
| 32250150.00 | 25 x 1.5 | 17.90 | 53.00 | 73.40 |
