Suitable for automated production processes where data transmission cables of high flexibility are required, also for use in drag chains and where fast and abrupt movements occur.

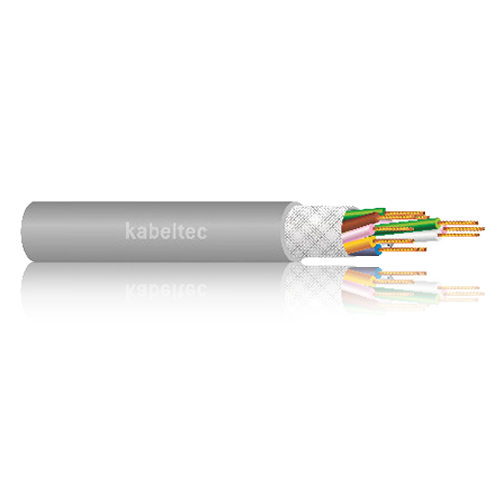

EF Data-cables
High flexible data cable
- CONSTRUCTION:
- Superfine strands of bare copper wire
- PVC core insulation, cores to DIN 47100
- Twisted in layers
- Textile wrapped
- PVC outer sheath grey, RAL 7001 as per VDE 0207
- Flame-retardant
Technical Data:
| Conductor Material: | Copper bare |
| Conductor class: | Class 6 |
| Core insulation: | PVC |
| Core identification: | DIN 47100 |
| Stranding: | Twisted in layers |
| Outer sheath: | PVC |
| Sheath colour: | Grey (RAL 7001) |
| Rated voltage [V]: | 300 / 500 |
| Testing voltage [V]: | 1500 |
| Conductor resistance: | – |
| Insulation resistance: | ≥ 20 MΩ x km |
| Current carrying capacity: | – |
| Min. bending radius fixed [xd]: | 3 x d |
| Min. bending radius moved [xd]: | 5 x d |
| Working temp fixed min/max [C]: | -40°C up to +70°C |
| Working temp moved min/mac [C]: | -5°C up to +70°C Temp at conductor max. |
| Burning behaviour: | IEC 60332-1-2: flame-retardant and self-extinguishing |
| Approvals: | – |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 15020014.00 | 2 x 0.14 | 4.00 | 0.28 | 2.30 |
| 15020025.00 | 2 x 0.25 | 4.50 | 0.50 | 2.80 |
| 15020034.00 | 2 x 0.34 | 5.00 | 0.68 | 3.30 |
| 15030014.00 | 3 x 0.14 | 4.50 | 0.42 | 2.60 |
| 15030025.00 | 3 x 0.25 | 4.90 | 0.75 | 3.30 |
| 15030034.00 | 3 x 0.34 | 5.70 | 1.02 | 4.30 |
| 15040014.00 | 4 x 0.14 | 4.80 | 0.56 | 3.10 |
| 15040025.00 | 4 x 0.25 | 5.30 | 1.00 | 4.00 |
| 15040034.00 | 4 x 0.34 | 6.50 | 1.36 | 5.70 |
| 15050014.00 | 5 x 0.14 | 5.10 | 0.70 | 3.50 |
| 15050025.00 | 5 x 0.25 | 6.20 | 1.25 | 5.10 |
| 15050034.00 | 5 x 0.34 | 7.00 | 1.70 | 6.50 |
| 15070014.00 | 7 x 0.14 | 6.20 | 0.98 | 5.00 |
| 15070025.00 | 7 x 0.25 | 7.00 | 1.75 | 6.40 |
| 15070034.00 | 7 x 0.34 | 8.00 | 2.35 | 8.50 |
| 15100014.00 | 10 x 0.14 | 7.20 | 1.40 | 6.30 |
| 15100025.00 | 10 x 0.25 | 8.20 | 2.50 | 8.40 |
| 15100034.00 | 10 x 0.34 | 9.40 | 3.40 | 11.70 |
| 15120014.00 | 12 x 0.14 | 7.30 | 1.68 | 7.10 |
| 15120025.00 | 12 x 0.25 | 8.30 | 3.01 | 9.50 |
| 15120034.00 | 12 x 0.34 | 9.60 | 4.08 | 13.30 |
| 15140014.00 | 14 x 0.14 | 7.50 | 1.96 | 7.70 |
| 15140025.00 | 14 x 0.25 | 8.50 | 3.50 | 10.80 |
| 15140034.00 | 14 x 0.34 | 10.00 | 4.76 | 15.10 |
| 15180014.00 | 18 x 0.14 | 8.00 | 2.52 | 9.10 |
| 15180025.00 | 18 x 0.25 | 9.50 | 4.50 | 13.00 |
| 15180034.00 | 18 x 0.34 | 11.00 | 6.12 | 18.20 |
| 15250014.00 | 25 x 0.14 | 9.50 | 3.50 | 12.50 |
| 15250025.00 | 25 x 0.25 | 11.00 | 6.25 | 17.80 |
| 15250034.00 | 25 x 0.34 | 13.00 | 8.50 | 25.00 |
