Suitable for automated production processes where data transmission cables of high flexibility are required, also for use in drag chains and where fast and abrupt movements exist.

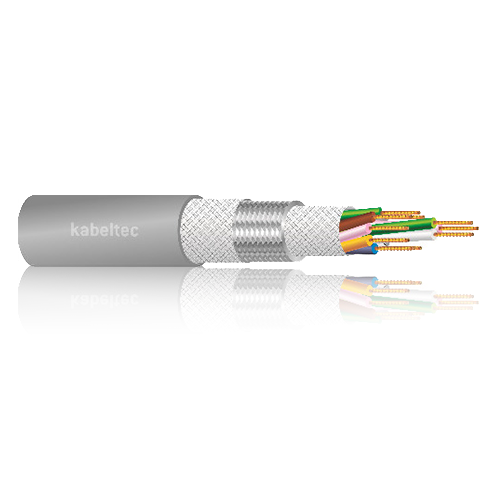

EF-CY Data-cables
PVC insulated, high flexible, screened
- CONSTRUCTION:
- Superfine strands of bare copper wire
- Tinned copper screen braiding
- PVC outer sheath grey, RAL 7001 as per VDE 0207
- Twisted in layers
- Textile wrapped
- Flame-retardant
- PVC core insulation, cores in several colours to DIN colour code 47100
Technical Data:
| Conductor Material: | Copper, bare |
| Conductor class: | Class 6 |
| Core insulation: | PVC |
| Core identification: | DIN 47100 |
| Stranding: | Twisted in layers |
| Outer sheath: | PVC |
| Sheath colour: | Grey (RAL 7001) |
| Rated voltage [V]: | 300 / 500 |
| Testing voltage [V]: | 1500 |
| Conductor resistance: | – |
| Insulation resistance: | ≥ 20 MΩ x km |
| Current carrying capacity: | – |
| Min. bending radius fixed [xd]: | 4 x d |
| Min. bending radius moved [xd]: | 5 x d |
| Working temp fixed min/max [C]: | -40°C up to +80°C |
| Working temp moved min/mac [C]: | -5°C up to +70°C |
| Temp at conductor max.: | |
| Burning behaviour: | IEC 60332-1-2: flame-retardant and self-extinguishing |
| Approvals: | – |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 150020025.00 | 2 x 0.25 | 5.00 | 1.49 | 4.10 |
| 150020034.00 | 2 x 0.34 | 5.60 | 1.61 | 4.60 |
| 150030014.00 | 3 x 0.14 | 4.90 | 1.41 | 3.80 |
| 150030025.00 | 3 x 0.25 | 5.30 | 1.88 | 4.70 |
| 150030034.00 | 3 x 0.34 | 6.30 | 2.87 | 6.10 |
| 150040014.00 | 4 x 0.14 | 5.00 | 1.55 | 4.10 |
| 150040025.00 | 4 x 0.25 | 6.30 | 2.13 | 5.70 |
| 150040034.00 | 4 x 0.34 | 6.90 | 3.57 | 8.20 |
| 150050014.00 | 5 x 0.14 | 5.30 | 1.83 | 4.90 |
| 150050025.00 | 5 x 0.25 | 6.90 | 3.10 | 7.40 |
| 150050034.00 | 5 x 0.34 | 7.00 | 3.91 | 9.20 |
| 150070014.00 | 7 x 0.14 | 7.10 | 2.76 | 7.30 |
| 150070025.00 | 7 x 0.25 | 7.40 | 3.96 | 9.30 |
| 150070034.00 | 7 x 0.34 | 8.10 | 5.27 | 11.90 |
| 150100014.00 | 10 x 0.14 | 8.20 | 3.93 | 9.50 |
| 150100025.00 | 10 x 0.25 | 8.70 | 5.39 | 12.10 |
| 150100034.00 | 10 x 0.34 | 10.30 | 6.74 | 16.10 |
| 150140014.00 | 14 x 0.14 | 8.60 | 4.53 | 10.90 |
| 150140025.00 | 14 x 0.25 | 9.20 | 6.42 | 14.90 |
| 150140034.00 | 14 x 0.34 | 10.50 | 8.53 | 19.80 |
| 150180014.00 | 18 x 0.14 | 8.70 | 5.41 | 12.70 |
| 150180025.00 | 18 x 0.25 | 10.00 | 7.84 | 16.70 |
| 150180034.00 | 18 x 0.34 | 11.10 | 9.97 | 22.60 |
| 150250014.00 | 25 x 0.14 | 10.50 | 6.84 | 16.10 |
| 150250025.00 | 25 x 0.25 | 12.70 | 10.10 | 22.80 |
| 150250034.00 | 25 x 0.34 | 13.70 | 15.50 | 32.90 |
