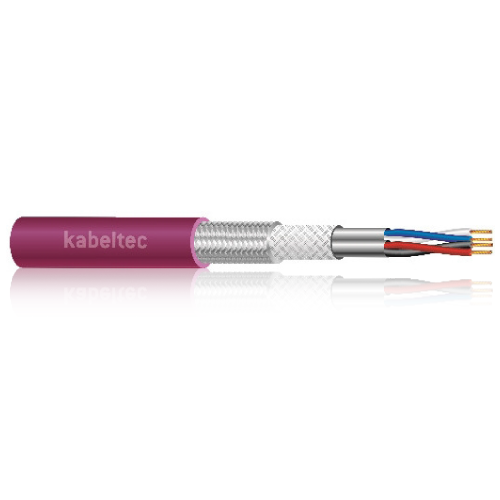

Device Net, a bus system developed by Allen Bradley (Rockwell Automation) connects industrial devices (e.g. limit switches, variable frequency drives, motor starters, valve islands, PLCs). The Device Net communication link is based on proven CAN technology.
CONSTRUCTION:
- Outer sheath: polyurethane (PUR) or polyvinylchloride (PVC)
- Core insulation: Polyethylen (PE)
- UV resistant
Approvals: UL / CSA approved (CMG)
Technical Data:
Conductor Material | Copper, bare |
Conductor class | * |
Core insulation | * |
Core identification | * |
Stranding | * |
Outer sheath | PUR or PVC |
Sheath colour | Violett (RAL 4001) |
Rated voltage [V] | 300 |
Testing voltage [V] | core/core: 2000 V |
Conductor resistance | Thick (Schleife) 45 Ω / km Thin (Schleife) 180 Ω / km |
Insulation resistance | 120 Ohm |
Current carrying capacity | * |
Min. bending radius fixed [xd] | 7,5 x d |
Min. bending radius moved [xd] | 15 x d |
Working temp fixed min/max [C] | PVC: -10°C up to +80/ PUR: -40°C up to +80 |
Working temp moved min/mac [C] | |
Temp at conductor max. | * |
Burning behaviour | IEC 60332-1-2: flame-retardant |
Approvals |
PUR: UL/CSA-zertifiziert (CMX) PVC: UL/CSA CMG 75°C FT4 Sun Res Oil Res
|
PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
---|---|---|---|---|
202170025 P | 1 x 2 xAWG24 + 1x2xAWG22 THIN | 6.90 | 3.34 | 6.77 |
202170252 P#UL | 1 x 2 xAWG18 + 1x2xAWG15 THICK | 12.20 | 9.40 | 18.40 |
202170341 UL | 1 x 2 xAWG24+1x2xAWG22 THIN | 6.90 | 3.34 | 6.77 |
202170362 | 1 x 2 xAWG18+1x2xAWG15 THICK | 12.20 | 9.40 | 19.50 |
