Used as connecting cable, as measuring, checking and control cable in machine tool manufacturing, plant-engineering, on assembly lines and production lines to meet stringent safety requirements. Suitable for fixed installation or flexible applications with unrestricted mobility without forced movement control and without exposure to tensile load. Installation in dry and moist rooms; outdoor installation not permitted. These cables with copper screening are ideally suitable for interference-free data and signal transmission.

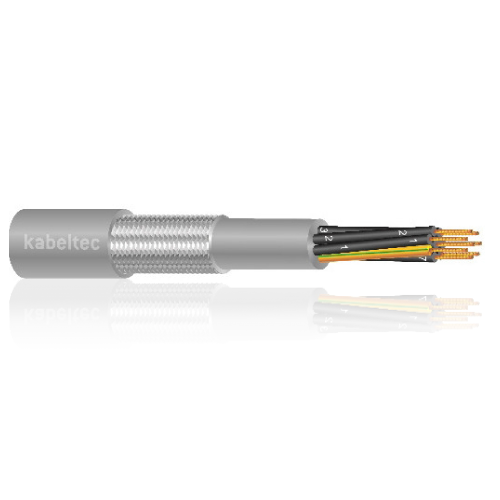

CY-JZ GREY
Number coded, copper screened, with inner bedding
Construction
- Fine strands of bare copper wire
- Stranding acc. to VDE 0295 class 5
- PVC core insulation black with continuous white figure imprint
- Earth conductor green/yellow
- PVC inner sheath
- Overall screen made of tinned copper wire
- PVC outer sheath grey
TECHNICAL DATA:
Conductor Material | Copper, bare |
Conductor class | Class 5, resp IEC 60228 cl 5 |
Core insulation | PVC |
Core identification | Black cores with white numbers |
Stranding | |
Outer sheath | PVC |
Sheath colour | Grey (RAL 7001) |
Rated voltage [V] | 300 / 500 |
Testing voltage [V] | 2000 |
Conductor resistance | |
Insulation resistance | min. 20 MΩ x km |
Current carrying capacity | |
Min. bending radius fixed [xd] | 6xd |
Min. bending radius moved [xd] | 20xd |
Working temp fixed min/max [C] | -40°C up to +80°C |
Working temp moved min/mac [C] | -5°C up to +70°C |
Temp at conductor max. | 80°C |
Burning behaviour | IEC 60332-1: flame-retardant and self-extinguishing |
Approvals |
PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
---|---|---|---|---|
211020100 | 2 x 1 OZ | 8.20 | 5.50 | 11.00 |
211020075 | 2 x 0.75 OZ | 7.50 | 4.30 | 9.20 |
211020050 | 2 x 0.50 OZ | 6.80 | 3.70 | 7.40 |
211020150 | 2 x 1.50 OZ | 9.30 | 6.60 | 14.00 |
211020250 | 2 x 2.5 | 10.40 | 19.20 | 11.20 |
211030100 | 3 x 1 | 8.50 | 6.53 | 15.60 |
211030075 | 3 x 0.75 | 8.20 | 5.79 | 14.50 |
211030050.00 | 3 x 0.50 | 7.40 | 4.55 | 9.50 |
211030150.00 | 3 x 1.50 | 9.60 | 8.30 | 20.00 |
211030250.00 | 3 x 2.50 | 11.50 | 14.60 | 21.40 |
211040100.00 | 4 x 1 | 9.50 | 7.81 | 17.80 |
211040075.00 | 4 x 0.75 | 8.80 | 6.40 | 16.30 |
211040050.00 | 4 x 0.50 | 7.90 | 5.50 | 11.60 |
211040150.00 | 4 x 1.50 | 10.30 | 10.00 | 24.70 |
211040250.00 | 4 x 2.50 | 12.30 | 16.30 | 29.80 |
211040400.00 | 4 x 4 | 15.80 | 29.40 | 41.50 |
211040600.00 | 4 x 6 | 18.00 | 36.10 | 56.80 |
211041000.00 | 4 x 10 | 22.20 | 54.00 | 94.20 |
211041600.00 | 4 x 16 | 25.50 | 91.00 | 123.00 |
211042500.00 | 4 x 25 | 26.40 | 131.10 | 169.90 |
211050100.00 | 5 x 1 | 10.20 | 8.94 | 17.20 |
211050075.00 | 5 x 0.75 | 9.00 | 7.74 | 13.30 |
211050050.00 | 5 x 0.50 | 8.50 | 6.60 | 11.80 |
211050150.00 | 5 x 1.50 | 10.60 | 12.50 | 21.10 |
211050250.00 | 5 x 2.50 | 14.20 | 20.00 | 34.20 |
211050400.00 | 5 x 4 | 17.00 | 32.80 | 48.00 |
211050600.00 | 5 x 6 | 20.30 | 44.10 | 68.60 |
211051000.00 | 5 x 10 | 25.30 | 71.40 | 111.00 |
211051600.00 | 5 x 16 | 28.60 | 105.00 | 148.50 |
211052500.00 | 5 x 25 | 36.20 | 148.60 | 212.40 |
211070100.00 | 7 x 1 | 11.60 | 12.60 | 25.50 |
211070075.00 | 7 x 0.75 | 10.50 | 10.20 | 23.30 |
211070050.00 | 7 x 0.50 | 9.30 | 8.10 | 14.00 |
211070150.00 | 7 x 1.50 | 13.30 | 16.30 | 39.30 |
211070250.00 | 7 x 2.50 | 14.90 | 28.80 | 49.80 |
211070400.00 | 7 x 4 | 18.80 | 38.80 | 62.00 |
211120100.00 | 12 x 1 | 14.50 | 18.81 | 36.70 |
211120075.00 | 12 x 0.75 | 13.00 | 19.90 | 38.40 |
211120050.00 | 12 x 0.50 | 11.20 | 13.80 | 19.00 |
211120150.00 | 12 x 1.50 | 16.00 | 26.60 | 61.50 |
211120250.00 | 12 x 2.50 | 19.50 | 47.73 | 79.60 |
211140100.00 | 14 x 1 | 15.30 | 21.50 | 40.60 |
211140050.00 | 14 x 0.50 | 12.00 | 14.60 | 21.80 |
211140150.00 | 14 x 1.50 | 17.20 | 29.90 | 48.20 |
211150075.00 | 15 x 0.75 | 13.60 | 19.90 | 33.00 |
211180100.00 | 18 x 1 | 17.40 | 28.60 | 55.20 |
211180075.00 | 18 x 0.75 | 14.70 | 24.30 | 49.20 |
211180050.00 | 18 x 0.50 | 13.20 | 15.60 | 35.30 |
211180150.00 | 18 x 1.50 | 19.60 | 37.10 | 79.30 |
211180250.00 | 18 x 2.50 | 23.60 | 59.80 | 108.00 |
211210150.00 | 21 x 1.50 | 20.40 | 41.40 | 68.70 |
211250100.00 | 25 x 1 | 20.90 | 38.85 | 76.60 |
211250075.00 | 25 x 0.75 | 17.70 | 30.70 | 67.10 |
211250050.00 | 25 x 0.50 | 16.20 | 25.00 | 41.40 |
211250150.00 | 25 x 1.50 | 22.60 | 53.50 | 111.60 |
211300050.00 | 30 x 0.50 | 17.00 | 29.70 | 51.60 |
211340100.00 | 34 x 1 | 22.30 | 50.50 | 97.30 |
211340075.00 | 34 x 0.75 | 21.10 | 41.30 | 82.20 |
211340150.00 | 34 x 1.50 | 25.90 | 70.20 | 137.60 |
211400050.00 | 40 x 0.50 | 20.20 | 34.30 | 61.00 |
211410100.00 | 41 x 1 | 26.30 | 57.80 | 112.30 |
211410075.00 | 41 x 0.75 | 23.00 | 48.80 | 95.00 |
211410150.00 | 41 x 1.50 | 28.30 | 84.46 | 128.50 |
211500100.00 | 50 x 1 | 28.00 | 68.80 | 130.00 |
211500150.00 | 50 x 1.50 | 30.00 | 97.70 | 188.10 |
211560100.00 | 56 x 1 | 28.60 | 74.50 | 124.00 |
211610100.00 | 61 x 1 | 29.20 | 78.20 | 159.60 |
211610075.00 | 61 x 0.75 | 26.30 | 58.40 | 146.00 |
211610050.00 | 61 x 0.50 | 22.90 | 43.90 | 84.00 |
211610150.00 | 61 x 1.50 | 33.00 | 121.20 | 121.20 |
211800100.00 | 80 x 1 | 32.50 | 104.00 | 162.60 |
211800075.00 | 80 x 0.75 | 29.20 | 76.00 | 126.00 |
211800050.00 | 80 x 0.50 | 26.00 | 55.10 | 105.00 |
211800150.00 | 80 x 1.50 | 36.90 | 150.80 | 231.00 |
2111000100.00 | 100 x 1 | 35.20 | 136.90 | 181.20 |
2111000075.00 | 100 x 0.75 | 33.30 | 97.20 | 167.60 |
2111000050.00 | 100 x 0.50 | 27.60 | 68.00 | 132.00 |
2111000150.00 | 100 x 1.50 | 42.00 | 188.20 | 263.00 |
