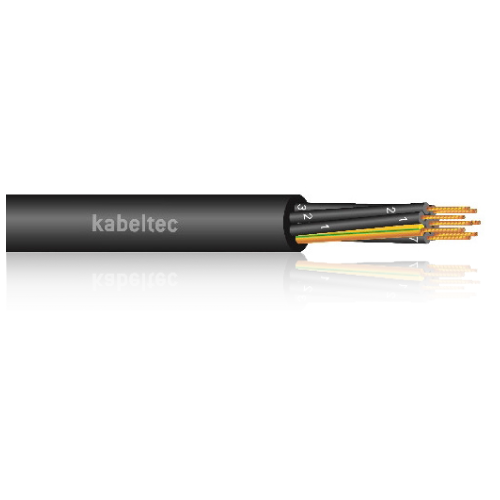

Control-Y-JZ UL Black 0.6/1kV

American and Canadian oil-resistant Control and Power Cable
TOTAL PRICE

SGD 0.00

UL and CSA approved Control Cable especially for European and American markets. Suitable for fixed installation under medium mechanical load conditions as well as for flexing application at free, non-continuously recurring movement without tensile load or compulsory guidance. Mainly in dry, damp and wet interiors, including water-oil mixtures. The cable is also suitable for outdoor use within the indicated working temperatures.

CONSTRUCTION:

– flexible bare copper conductors according to CEI 20-29, Class , DIN-VDE 0295 K5 and IEC 60228 Cl.5
– PVC Insulation compound TI1 and UL 80°C according to UL 1581
– black cores numbered + earth conductor
– outer sheath: special PVC TM2 and UL 80°C acc. to UL 1581



Technical Data:
Conductor Material: Copper, bare
Conductor class: Class 5 acc. CEI 20-29, Class , DIN-VDE 0295 K5 and IEC 60228 Cl.5
Core insulation: PVC
Core identification: Acc. to DIN VDE 0293: Black cores with white numerals
Stranding: Cores twisted in layers
Outer sheath: Special PVC, UV resistant
Sheath colour: black
Rated voltage [V]: UL 1000V
Testing voltage [V]: 10.000V
Conductor resistance:
Insulation resistance:
Current carrying capacity:
Min. bending radius fixed [xd]: 4xd
Min. bending radius moved [xd]:
Working temp fixed min/max [C]: -40°C up to +90
Working temp moved min/mac [C]: -5°C up to +90
Temp at conductor max.: *
Burning behaviour: Self-extinguishing IEC 60332-1
Reduced Fire Propagation, Fire retardant as IEC 60332-3-24 – CEI 20-22 II and NBN C30-004, cat F2
Flame retardant rating UL 758 FT1
Approvals: UL AWM Style 2570 CSA AWM I A/B II A/B UV and weather-resistant according to ISO 4892-2

PART NUMBER CORES OUTER DIAMETER COPPER WEIGHT
KG/100M		 WEIGHT
KG/100M
2 x 0.5 AWG21 5 0.96 3.63
2 x 0.75 AWG19 5.4 1.44 4.46
2 x 1 AWG18 5.7 1.92 5.19
2 x 1.5 AWG16 6.3 2.88 6.77
2 x 2.5 AWG14 7.5 4.8 10.12
2 x 4 AWG12 8.8 7.68 14.7
2 x 6 AWG10 10.4 11.52 21.1
3 x 0.5 AWG21 5.3 1.44 4.33
3 x 0.75 AWG19 5.7 2.16 5.37
3 x 1 AWG18 6.1 2.88 6.43
3 x 1.5 AWG16 6.7 4.32 8.43
3 x 2.5 AWG14 8 7.2 12.78
3 x 4 AWG12 9.3 11.52 18.55
3 x 6 AWG10 11.1 17.28 27.06
3 x 10 AWG8 14.5 28.8 45.62
3 x 16 AWG6 16.8 46.08 66.81
3 x 25 AWG4 21.6 72 107.28
3 x 35 AWG2 24.2 100.8 142
3 x 50 AWG1 29.6 144 207.39
4 x 0.5 AWG21 5.7 1.92 5.19
4 x 0.75 AWG19 6.2 2.88 6.58
4 x 1 AWG18 6.6 3.84 7.87
4 x 1.5 AWG16 7.3 5.76 10.46
4 x 2.5 AWG14 8.7 9.6 15.91
4 x 4 AWG12 10.5 15.36 24.14
4 x 6 AWG10 12.4 23.04 34.84
4 x 10 AWG8 15.9 38.4 57.59
4 x 16 AWG6 18.7 61.44 85.95
4 x 25 AWG4 23.8 96 136.48
4 x 35 AWG2 26.7 134.4 181.32
4 x 50 AWG1 32.6 192 264.11
4 x 70 AWG2/0 37.6 417.28 336
5 x 0.5 AWG21 6.3 2.4 6.38
5 x 0.75 AWG19 6.8 3.6 8.01
5 x 1 AWG18 7.2 4.8 9.53
5 x 1.5 AWG16 8 7.2 12.77
5 x 2.5 AWG14 9.6 12 19.6
5 x 4 AWG12 11.5 19.2 29.52
5 x 6 AWG10 13.7 28.8 43.02
5 x 10 AWG8 17.9 48 72.51
5 x 16 AWG6 21.4 76.8 109.89
5 x 25 AWG4 26.4 120 169.3
5 x 35 AWG2 30.6 168 231.98
5 x 50 AWG1 36.2 240 328.01
6 x 0.5 AWG21 6.8 2.88 7.5
6 x 0.75 AWG19 7.4 4.32 9.53
6 x 1 AWG18 7.8 5.76 11.27
6 x 1.5 AWG16 8.7 8.64 15.19
7 x 0.5 AWG21 6.8 3.36 7.84
7 x 0.75 AWG19 7.4 5.04 10.04
7 x 1 AWG18 7.8 6.72 11.95
7 x 1.5 AWG16 8.7 10.08 16.24
7 x 2.5 AWG14 10.7 16.8 25.72
7 x 4 AWG12 12.8 26.88 38.81
7 x 6 AWG10 15.3 40.32 56.85
7 x 10 AWG8 19.8 67.2 94.85
10 x 0.5 AWG21 8.4 4.8 11.73
10 x 0.75 AWG19 9.2 7.2 15.1
10 x 1 AWG18 10 9.6 18.62
10 x 1.5 AWG16 11.2 14.4 25.23
12 x 0.5 AWG21 8.7 5.76 13.02
12 x 0.75 AWG19 9.5 8.64 16.79
12 x 1 AWG18 10.3 11.52 20.7
12 x 1.5 AWG16 11.5 17.28 28.13
12 x 2.5 AWG14 14.4 28.8 45.4
16 x 0.5 AWG21 9.6 7.68 16.33
16 x 0.75 AWG19 10.7 11.52 21.69
16 x 1 AWG18 11.4 15.36 26.25
16 x 1.5 AWG16 13 23.04 36.64
18 x 0.5 AWG21 10.4 8.64 18.89
18 x 0.75 AWG19 11.4 12.96 24.54
18 x 1 AWG18 12.3 17.28 30.13
18 x 1.5 AWG16 13.8 25.92 41.26
18 x 2.5 AWG14 17.1 43.2 65.91
20 x 0.5 AWG21 11 9.6 21.09
20 x 0.75 AWG19 12.2 14.4 27.79
20 x 1 AWG18 13 19.2 33.59
20 x 1.5 AWG16 1.48 28.8 46.72
25 x 0.5 AWG21 12.1 12 25.79
25 x 0.75 AWG19 13.3 18 33.66
25 x 1 AWG18 14.3 24 41.19
25 x 1.5 AWG16 16 36 56.3
25 x 2.5 AWG14 19.9 60 90.35
27 x 0.5 AWG21 12.8 12.96 28.53
27 x 0.75 AWG19 14 19.44 36.94
27 x 1 AWG18 15.1 25.92 45.32
27 x 1.5 AWG16 17.2 38.88 63.09
32 x 0.5 AWG21 13.3 15.36 31.78
32 x 0.75 AWG19 14 19.44 36.94
32 x 1 AWG18 15.8 30.72 51.29
32 x 1.5 AWG16 17.9 46.08 71.21
34 x 0.5 AWG21 14.3 16.32 35.71
34 x 0.75 AWG19 15.7 24.48 46.47
34 x 1 AWG18 16.9 32.64 56.9
34 x 1.5 AWG16 19.2 48.96 78.99
34 x 2.5 AWG14 24.9 81.6 131.22
37 x 0.5 AWG21 14.3 17.76 36.74
37 x 0.75 AWG19 15.7 26.64 48.01
37 x 1 AWG18 16.9 35.52 58.95
37 x 1.5 AWG16 19.2 53.28 82.13
41 x 0.5 AWG21 15.3 19.68 41.59
41 x 1 AWG18 18.2 39.36 67.06
41 x 1.5 AWG16 21.2 59.04 95.83
50 x 0.5 AWG21 16.8 24 50.34
50 x 0.75 AWG19 18.4 36 65.53
50 x 1 AWG18 19.9 48 80.84
50 x 1.5 AWG16 23 72 114.61
