UL and CSA approved Control Cable especially for European and American markets. Suitable for fixed installation under medium mechanical load conditions as well as for flexing application at free, non-continuosuly recurring movement without tensile load or compulsory guidance. Mainly in dry, damp and wet interiors, including water-oil mixtures. The cable is also suitable for outdoor use within the indicated working temperatures.

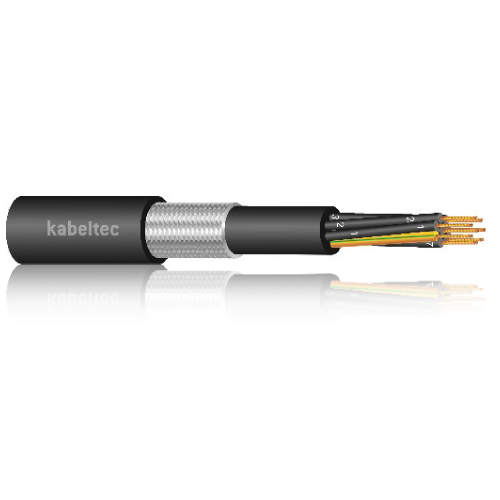

Control-CY-JZ UL Black0.6/1kV
American and Canadian oil-resistant Control and Power Cable
CONSTRUCTION:
– flexible bare copper conductors according to CEI 20-29, Class , DIN-VDE 0295 K5
and IEC 60228 Cl.5
-PVC Insulation compound TI1 and UL 80°C according to UL 1581
– black cores numbered + earth conductor
-Polyester tape
-tinned copper screening with coverage 85% +/-5%
– outer sheath: special PVC TM2 and UL 80°C acc. to UL 1581
Technical Data:
Conductor Material: Copper, bare
Conductor class: Class 5 acc. CEI 20-29, Class , DIN-VDE 0295 K5 and IEC
60228 Cl.5
Core insulation: PVC
Core identification: Acc. to DIN VDE 0293: Black cores with white numerals
Stranding: Cores twisted in layers
Outer sheath: Special PVC, UV resistant
Sheath colour: black
Rated voltage [V]: UL 1000V
Testing voltage [V]: 10.000V
Conductor resistance:
Insulation resistance:
Current carrying capacity:
Min. bending radius fixed [xd]: 20xd
Min. bending radius moved [xd]: 6xd
Working temp fixed min/max [C]: -40°C up to +80
Working temp moved min/mac [C]: -5°C up to +80
Temp at conductor max.: *
Burning behaviour: Self-extinguishing IEC 60332-1
Reduced Fire Propagation, Fire retardant as IEC
60332-3-24 – CEI 20-22 II and NBN C30-004, cat F2
Flame retardant rating UL 758 FT1
Approvals: UL AWM Style 2570
CSA AWM I A/B II A/B
UV and weather-resistant according to ISO 4892-2
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 18 x 1.5 AWG16 | 14.8 | 32.93 | 45.4 |
