Used as connecting cable, as measuring, checking and control cable in machine tool manufacturing, plant engineering and on assembly lines and production lines to meet stringengt safety requirements. Suitable for fixed installation or flexible applications with unrestricted mobility without forced movement control and without exposure to tensile load. Installation in dry and moist rooms; outdoor installation not permitted. Used in the Italian car industry.

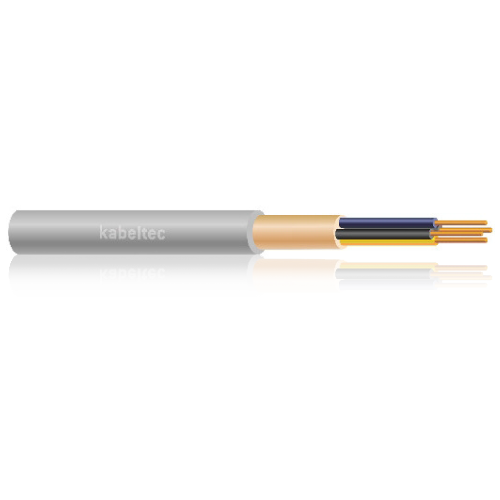

CEI 20-22 II
Control cable acc. to Italian standards
- Fine strands of bare copper wire
- Stranding acc. to CEI 20-29 class 5
- Outer sheath special thermoplastic mix grey, similar to RAL 7035
- Earth conductor green/yellow in outer layer
- Oil-resistant, flame-retardant
- PVC core insulation special thermoplastic mix
- Core marking in accordance to VDE 0293; if desired number coded available
- If desired we could supply this cable with a working voltage of 750 V
TECHNICAL DATA:
| Conductor Material: | Copper, bare |
| Conductor class: | Class 5 |
| Core insulation: | Special thermoplastic mix |
| Core identification: | VDE 0293 |
| Stranding: | Cores twisted in layers |
| Outer sheath: | Special thermoplastic mix |
| Sheath colour: | Grey (RAL 7001) |
| Rated voltage [V]: | 500 |
| Testing voltage [V]: | 2000 |
| Conductor resistance: | * |
| Insulation resistance: | min. 20 MΩ x km |
| Current carrying capacity: | * |
| Min. bending radius fixed [xd]: | 10x d |
| Min. bending radius moved [xd]: | * |
| Working temp fixed min/max [C]: | -35°C up to +70 |
| Working temp moved min/max [C]: | -5°C up to +70 |
| Temp at conductor max.: | * |
| Burning behaviour: | IEC 60332-3 |
| Approvals: | Oil- and gasoline-resistant acc. to CEI 20-22 |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 105030100.00 | 3 x 1 | 8.50 | 2.90 | 8.50 |
| 105030150.00 | 3 x 1.50 | 9.60 | 4.30 | 10.50 |
| 105030250.00 | 3 x 2.5 | 11.30 | 7.20 | 19.00 |
| 105040100.00 | 4 x 1 | 9.50 | 3.90 | 10.00 |
| 105040150.00 | 4 x 1.50 | 11.00 | 5.80 | 15.00 |
| 105040250.00 | 4 x 2.50 | 12.30 | 9.60 | 21.50 |
| 105040400.00 | 4 x 4 | 14.00 | 15.40 | 30.00 |
| 105040600.00 | 4 x 6 | 16.00 | 23.00 | 43.00 |
| 105041000.00 | 4 x 10 | 19.00 | 38.40 | 70.00 |
| 105041600.00 | 4 x 16 | 23.00 | 61.40 | 100.00 |
| 105042500.00 | 4 x 25 | 28.00 | 96.00 | 155.00 |
| 105043500.00 | 4 x 35 | 31.00 | 134.40 | 207.00 |
| 105045000.00 | 4 x 50 | 37.00 | 192.00 | 285.00 |
| 105047000.00 | 4 x 70 | 43.00 | 268.80 | 400.00 |
| 105049500.00 | 4 x 95 | 50.00 | 364.80 | 540.00 |
| 105050100 | 5 x 1 | 10.50 | 4.80 | 12.30 |
| 105050150 | 5 x 1.50 | 12.00 | 7.20 | 19.00 |
| 105050250 | 5 x 2.50 | 12.60 | 12.00 | 27.00 |
| 105070100 | 7 x 1 | 10.80 | 6.70 | 16.00 |
| 105070150 | 7 x 1.50 | 12.50 | 10.10 | 22.00 |
| 105070250 | 7 x 2.50 | 14.50 | 16.80 | 35.00 |
| 105070400 | 7 x 4 | 16.00 | 26.90 | 50.00 |
| 105120100 | 12 x 1 | 13.80 | 11.50 | 27.00 |
| 105120150 | 12 x 1.50 | 16.00 | 17.30 | 35.00 |
| 105120250 | 12 x 2.50 | 18.00 | 28.80 | 55.00 |
| 105180100 | 18 x 1 | 16.50 | 17.30 | 38.00 |
| 105180150 | 18 x 1.50 | 18.80 | 25.90 | 51.50 |
| 105250100 | 25 x 1 | 19.50 | 24.00 | 50.00 |
| 105250150 | 25 x 1.50 | 23.00 | 36.00 | 70.50 |
| 105270100 | 27 x 1 | 20.00 | 25.90 | 56.00 |
| 105330100 | 33 x 1 | 20.80 | 31.70 | 70.00 |
| 105340100 | 34 x 1 | 21.00 | 32.60 | 72.00 |
| 105340150 | 34 x 1.50 | 26.00 | 49.00 | 99.00 |
| 105370150 | 37 x 1.50 | 26.50 | 53.30 | 100.50 |
| 105420100 | 42 x 1 | 23.30 | 40.50 | 80.00 |
| 105420150 | 42 x 1.50 | 29.50 | 60.50 | 108.00 |
| 105500100 | 50 x 1 | 25.00 | 48.00 | 105.00 |
| 105500150 | 50 x 1.50 | 30.50 | 72.00 | 133.00 |
