For fix installation in dry rooms and for installation at outdoor and in earth for industrial communication of buses e.g. Sinec L2-DP and F.I.P. (Factory Instrumentation Protocol) as well as for high flexible use in drag chains.
BUS Cable
150 Ohm

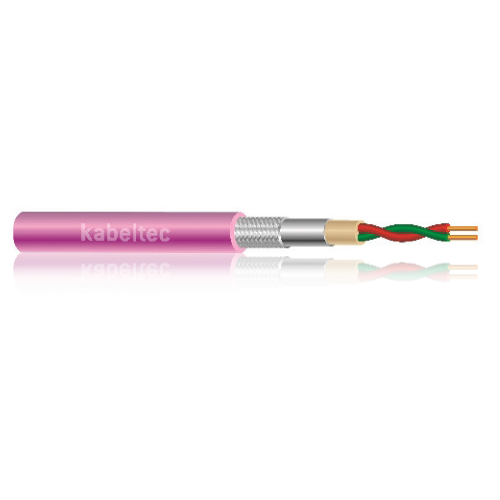

CONSTRUCTION:
- Twisted, Screen of plastic-laminated metal foil
- 2 cores twisted in pairs
- Single plain copper conductor for fixed installation or fine wired for use in drag chain
- CU-screen
- Outer sheath PVC for indoor installation
- Outer sheath PE for outdoor installation
- Outer sheath PU for use in drag chains
- Or halogen free outer sheath
- Outer sheath colour violet
- Also UL-approved available
Technical Data:
Conductor Material: Copper, bare
Conductor class:
Core insulation:
Core identification:
Stranding: Two cores twisted in pairs
Outer sheath: PVC for indoor installation
PE for outdoor installation
PU for use in drag chains halogenfree compound
| Conductor Material | Copper, bare |
| Conductor class | |
| Core insulation | |
| Core identification | |
| Stranding | Two cores twisted in pairs |
| Outer sheath | PVC for indoor installation PE for outdoor installation PU for use in drag chains halogenfree compound |
| Sheath colour | Indoor installation: Violet |
| Outdoor installation | Black Use in drag chains: Violet |
| Rated voltage [V] | Max. 100 |
| Testing voltage [V] | 3600 V/3 sec |
| Conductor resistance | |
| Insulation resistance | ≥ 16000 MΩ/km |
| Current carrying capacity | |
| Min. bending radius fixed [xd] | |
| Min. bending radius moved [xd] | |
| Working temp fixed min/max [C] | -30°C up to +70°C |
| Working temp moved min/mac [C] | -5°C up to +50°C |
| Temp at conductor max. | |
| Burning behaviour | IEC 60332-1-2: flame-retardant and self-extinguishing |
| Approvals |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 207010024UL | 1 x 2 x 0.64 | 8.00 | 3.01 | 6.40 |
| 207010064 | 1 x 2 x 0.64 | 8.00 | 3.01 | 6.40 |
| 207010064 #FC | 1 x 2 x 0.64 | 8.00 | 3.01 | 6.40 |
| 207010064 #FC#UL | 1 x 2 x 0.64 | 8.00 | 3.01 | 6.40 |
| 207010064/A | 1 x 2 x 0.64 | 8.00 | 3.01 | 6.40 |
| 207010064/H | 1 x 2 x 0.64 LSZH | 8.00 | 3.01 | 6.40 |
