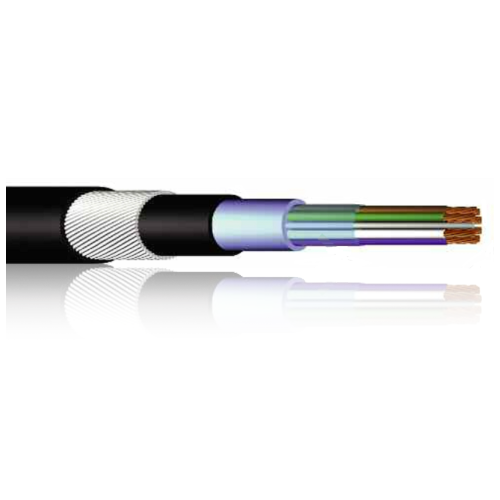

BS 5308 SWA armoured

Also available halogen free
TOTAL PRICE

SGD 0.00

These cables are used to transmit analogue or digital signals in measurement.

  • Steel wire armoured
  • Outer sheath made of PVC
  • Bending radius 10 x Ø
  • Bedding: PE

TECHNICAL DATA:

Conductor Material:  Copper, bare
Conductor class:  Class 2 or 5
Core insulation:  Part 1: PE | Part 2: PVC
Core identification:  *
Stranding:  Two conductors twisted together
Outer sheath:  PVC
Sheath colour:  Blue or black
Rated voltage [V]:  300/500
Testing voltage [V]:  *
Conductor resistance:  *
Insulation resistance:  *
Current carrying capacity:  *
Min. bending radius fixed [xd]:  *
Min. bending radius moved [xd]:  6 x d
Working temp fixed min/max [C]:  -30°C up to +70
Working temp moved min/max [C]:  -5°C up to +50
Temp at conductor max.:  *
Burning behaviour: IEC 60332-3: flame-retardant
Approvals: BS5308 Part 1, Insluated cables, instrumentation,
PE BS6234: Specification for polyethylene insulation
and sheath of electric cables BS EN 60332-3-Cat C

PART NUMBER CORES OUTER DIAMETER COPPER WEIGHT
KG/100M		 WEIGHT
KG/100M
PT2 1 x 3 x 0.50 11 1.44 25.9
PT2 1 x 2 x 0.50 10.8 0.96 24.2
PT1 1 x 3 x 0.75 11.4 2.16 28.8
PT1 1 x 2 x 0.75 11.1 1.44 27
PT1 1 x 3 x 0.50 11 1.44 25.9
PT1 1 x 2 x 0.50 10.8 0.96 24.2
PT2 1 x 2 x 0.75 11.1 1.44 27
PT2 1 x 3 x 0.75 11.4 2.16 28.8
1 x 2 x 1 11.8 23
PT1 1 x 3 x 1.50 12.6 4.3 35.7
PT1 1 x 2 x 1.50 12.3 2.88 31.2
PT2 1 x 2 x 1.50 12.3 2.88 31.2
PT2 1 x 3 x 1.50 12.6 4.32 35.7
PT1 1 x 3 x 2.50 13.7 7.2 40.7
PT1 1 x 2 x 2.50 13.1 4.8 39.5
PT2 1 x 2 x 2.50 13.1 4.8 39.5
PT2 1 x 3 x 2.50 13.7 7.2 40.7
PT2 2 x 2 x 0.50 11.7 1.92 28.8
PT1 2 x 2 x 0.75 12.3 2.88 33
PT1 2 x 2 x 0.50 11.7 1.92 28.8
PT2 2 x 2 x 0.75 12.3 2.88 33
2 x 2 x 1 13 28
PT1 2 x 2 x 1.50 13.7 5.8 39.7
PT2 2 x 2 x 1.50 13.7 5.8 39.7
PT1 2 x 2 x 2.50 15.9 9.6 49
PT2 2 x 2 x 2.50 15.9 9.6 49
PT2 5 x 2 x 0.50 17.3 4.8 53.5
PT1 5 x 2 x 0.75 19.2 7.2 71.9
PT1 5 x 2 x 0.50 17.3 4.8 53.5
PT2 5 x 2 x 0.75 19.2 7.2 71.9
5 x 2 x 1 19.7 69
PT1 5 x 2 x 1.50 21.5 14.4 91.8
PT2 5 x 2 x 1.50 21.5 14.4 91.8
PT1 5 x 2 x 2.50 26.5 24 143
PT2 5 x 2 x 2.50 26.5 24 143
PT2 10 x 2 x 0.50 22.3 9.6 86.8
PT1 10 x 2 x 0.75 24.7 14.4 115
PT1 10 x 2 x 0.50 22.3 9.6 86.8
PT2 10 x 2 x 0.75 24.7 14.4 115
10 x 2 x 1 24.3 98
PT1 10 x 2 x 1.50 27.8 28.8 160
PT2 10 x 2 x 1.50 27.8 28.8 146.6
PT1 10 x 2 x 2.50 35.1 48 223.5
PT2 10 x 2 x 2.50 35.1 48 223.5
15 x 2 x 1 28.1 137
15 x 2 x 0.50 26.4 116
15 x 2 x 0.75 28.2 131
15 x 2 x 1.50 32.2 185
PT2 20 x 2 x 0.50 28.5 19.2 146.6
PT1 20 x 2 x 0.75 30.7 28.8 170
PT1 20 x 2 x 0.50 28.5 19.2 146.6
PT2 20 x 2 x 0.75 30.7 28.8 170
20 x 2 x 1 31.2 167
PT1 20 x 2 x 1.50 35.1 57.6 251.9
PT2 20 x 2 x 1.50 35.1 57.6 251.9
PT1 20 x 2 x 2.50 46.7 96 393.5
PT2 20 x 2 x 2.50 46.7 96 393.5
PT2 30 x 2 x 0.50 33.3 28.8 194.4
PT1 30 x 2 x 0.75 36.9 43.2 257
PT1 30 x 2 x 0.50 33.3 28.8 194.4
PT2 30 x 2 x 0.75 36.9 43.2 257
30 x 2 x 1 36.2 216
PT1 30 x 2 x 1.50 41.9 86.4 335.2
PT2 30 x 2 x 1.50 41.9 86.4 335.2
PT2 50 x 2 x 0.50 41.5 48 336
PT1 50 x 2 x 0.75 46.4 72 440
PT1 50 x 2 x 0.50 41.5 48 336
PT2 50 x 2 x 0.75 46.4 72 440
50 x 2 x 1 45.7 344
PT1 50 x 2 x 1.50 53.4 144 531
PT2 50 x 2 x 1.50 53.4 144 531
