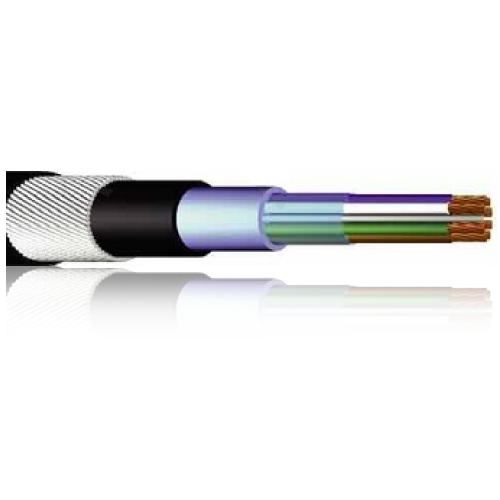

Instrumentation and communication cables, used to transmit analogue or digital signals in measurement and process control. They can be used where chemicals may be present.
BS 5308 Collective Screened
Also available halogen free
- Solid, stranded or flexible bare copper conductor
- Outer sheath made of PVC
- Bending radius 10 x Ø
- Individual screened pairs
- Overall screening: all pairs collective wrapped
TECHNICAL DATA:
| Conductor Material: | Copper, bare |
| Conductor class: | Class 1, 2 or 5 |
| Core insulation: | Part 1: PE | Part 2: PVC |
| Core identification: | * |
| Stranding: | Two conductors twisted together |
| Outer sheath: | PVC |
| Sheath colour: | Blue or black |
| Rated voltage [V]: | 300/500 |
| Testing voltage [V]: | * |
| Conductor resistance: | * |
| Insulation resistance: | * |
| Current carrying capacity: | * |
| Min. bending radius fixed [xd]: | 5x d |
| Min. bending radius moved [xd]: | 8 x d |
| Working temp fixed min/max [C]: | -30°C up to +70 |
| Working temp moved min/max [C]: | -5°C up to +50 |
| Temp at conductor max.: | * |
| Burning behaviour: | IEC 60332-3: flame-retardant |
| Approvals: | BS5308 Part 2, Insulated cable, instrumentation, PVC |
| BS EN 60332-3-Cat C |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| PT1 | 1 x 2 x 0.50 | 7 | 0.96 | 6 |
| PT1 | 1 x 3 x 0.50 | 6.1 | 1.44 | 6.9 |
| PT1 | 1 x 2 x 0.75 | 7.3 | 1.44 | 6.9 |
| PT1 | 1 x 3 x 0.75 | 6.8 | 2.16 | 8.3 |
| PT2 | 1 x 2 x 0.50 | 6 | 0.96 | 6 |
| PT2 | 1 x 3 x 0.50 | 6.1 | 1.44 | 6.9 |
| PT2 | 1 x 2 x 0.75 | 6.3 | 1.44 | 6.9 |
| PT2 | 1 x 3 x 0.75 | 6.8 | 2.16 | 8.3 |
| PT1 | 1 x 2 x 1.50 | 8.3 | 2.88 | 9 |
| PT1 | 1 x 3 x 1.50 | 8.4 | 4.32 | 11.5 |
| PT2 | 1 x 2 x 1.50 | 7.3 | 2.88 | 8.7 |
| PT2 | 1 x 3 x 1.50 | 8.4 | 4.32 | 11.5 |
| PT1 | 2 x 2 x 0.50 | 6.9 | 1.92 | 7.5 |
| PT1 | 2 x 2 x 0.75 | 7.9 | 2.88 | 9.9 |
| PT2 | 2 x 2 x 0.50 | 6.9 | 1.92 | 7.5 |
| PT2 | 2 x 2 x 0.75 | 8.3 | 2.88 | 10 |
| PT1 | 2 x 2 x 1.50 | 9.7 | 5.8 | 14.5 |
| PT2 | 2 x 2 x 1.50 | 8.7 | 5.8 | 14.5 |
| PT1 | 5 x 2 x 0.50 | 13.1 | 4.8 | 19 |
| PT1 | 5 x 2 x 0.75 | 14.3 | 7.2 | 24.2 |
| PT2 | 5 x 2 x 0.50 | 12.1 | 4.8 | 19 |
| PT2 | 5 x 2 x 0.75 | 13.3 | 7.2 | 24.2 |
| PT1 | 5 x 2 x 1.50 | 16.4 | 14.4 | 34.5 |
| PT2 | 5 x 2 x 1.50 | 15.4 | 14.4 | 34.5 |
| PT1 | 10 x 2 x 0.50 | 17.2 | 9.6 | 30.5 |
| PT1 | 10 x 2 x 0.75 | 17.7 | 14.4 | 38 |
| PT2 | 10 x 2 x 0.50 | 16.2 | 9.6 | 30.5 |
| PT2 | 10 x 2 x 0.75 | 18.7 | 14.4 | 38 |
| PT1 | 10 x 2 x 1.50 | 20.6 | 28.8 | 57.5 |
| PT2 | 10 x 2 x 1.50 | 22.3 | 28.8 | 57.5 |
| PT1 | 15 x 2 x 0.50 | 19.8 | 39 | |
| PT1 | 15 x 2 x 0.75 | 21.4 | 50 | |
| PT1 | 15 x 2 x 1.50 | 25.2 | 82 | |
| PT1 | 20 x 2 x 0.50 | 21.3 | 19.2 | 51.8 |
| PT1 | 20 x 2 x 0.75 | 24.5 | 28.8 | 75 |
| PT2 | 20 x 2 x 0.50 | 21.3 | 19.2 | 51.8 |
| PT2 | 20 x 2 x 0.75 | 23.5 | 28.8 | 68.4 |
| PT1 | 20 x 2 x 1.50 | 28.5 | 43.2 | 110 |
| PT2 | 20 x 2 x 1.50 | 27.5 | 43.2 | 107.5 |
| PT1 | 30 x 2 x 0.50 | 25.9 | 28.8 | 75.9 |
| PT1 | 30 x 2 x 0.75 | 28.5 | 43.2 | 98.9 |
| PT2 | 30 x 2 x 0.50 | 25.9 | 28.8 | 75.9 |
| PT2 | 30 x 2 x 0.75 | 28.5 | 43.2 | 98.9 |
| PT1 | 30 x 2 x 1.50 | 33.7 | 86.4 | 172 |
| PT2 | 30 x 2 x 1.50 | 33.7 | 86.4 | 172 |
| PT1 | 50 x 2 x 0.50 | 32.9 | 48 | 125.1 |
| PT1 | 50 x 2 x 0.75 | 36.4 | 72 | 167 |
| PT2 | 50 x 2 x 0.50 | 32.9 | 48 | 125.1 |
| PT2 | 50 x 2 x 0.75 | 36.4 | 72 | 167 |
| PT1 | 50 x 2 x 1.50 | 43.6 | 144 | 275 |
| PT2 | 50 x 2 x 1.50 | 43.6 | 144 | 275 |
