Flexible PVC cable for the use in low temperature areas, even at temperatures of -35C°.

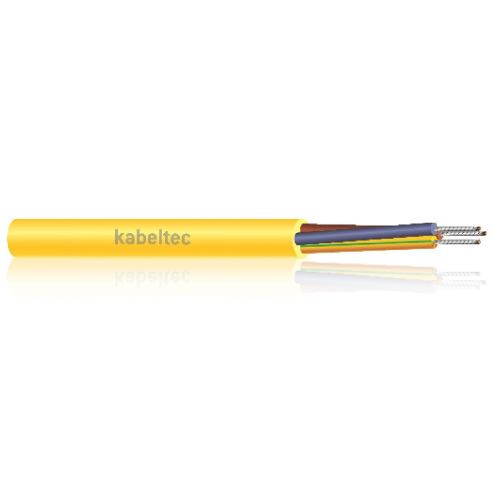

AT-N07V3V3-F
cold resistant PVC cable 450 / 750V
CONSTRUCTION:
- Bare copper, class 5, according to VDE 0295 stranded
- Cores arranged in concentric layers with green/yellow earth conductor
- PVC outer sheath with ÖVE approval mark
- Shore-hardness sheath: 74 +/-3
- Shore-hardness core: 74 +/- 3
TECHNICAL DATA:
| Conductor Material: | Copper, bare |
| Conductor class: | class 5 |
| Core insulation: | special cold resistant PVC |
| Core identification: | according to VDE 0293 |
| Stranding: | * |
| Outer sheath: | special cold resistant PVC |
| Sheath colour: | grey, black or yellow |
| Rated voltage [V]: | 450 / 750 |
| Testing voltage [V]: | 2500 |
| Conductor resistance: | * |
| Insulation resistance: | * |
| Current carrying capacity: | * |
| Min. bending radius fixed [xd]: | min. 3 x OD |
| Min. bending radius moved [xd]: | min. 5 x OD |
| Working temp fixed min/max [C]: | -35°C up to +70 |
| Working temp moved min/mac [C]: | -35°C up to +70 |
| Temp at conductor max.: | * |
| Burning behaviour: | * |
| Approvals: | * |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 6776030100 | 3 x 1.00 | 9.10 | 2.90 | 12.00 |
| 6776030150 | 3 x 1.50 | 10.10 | 4.30 | 15.22 |
| 6776030250 | 3 x 2.50 | 12.00 | 7.20 | 22.21 |
| 6776030400 | 3 x 4.00 | 13.70 | 11.52 | 31.33 |
| 6776040100 | 4 x 1.00 | 10.00 | 3.84 | 14.76 |
| 6776040150 | 4 x 1.50 | 11.10 | 5.80 | 18.76 |
| 6776040250 | 4 x 2.50 | 13.20 | 9.60 | 27.50 |
| 6776040400 | 4 x 4.00 | 15.10 | 15.40 | 39.11 |
| 6776050100 | 5 x 1.00 | 11.00 | 4.80 | 17.97 |
| 6776050150 | 5 x 1.50 | 12.20 | 7.20 | 22.83 |
| 6776050250 | 5 x 2.50 | 14.50 | 12.00 | 33.47 |
