AS-Interface bus cables connect simple binary actuators and sensors such as proximity switches, valves or signal lamps with the central control system. The yellow cable is used for data transmission and auxiliary energy supply (48 VDC) for the AS-Interface slaves.
The black cable exclusively supplies auxiliary energy to the AS-Interface slaves (24 VDC). Also available as UL- and CSA-type!

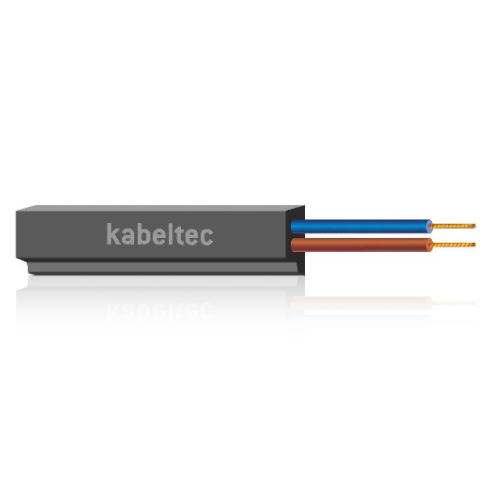

ASI-BUS PUR/TPE/EPDM
Construction:
- Tinned copper conductor, fine wire
- Core colours: brown, blue
- Parallel cores
- Profiled outer sheath: PUR/TPE or EPDM, oil-resistant
- Sheath colour: yellow, RAL 1023 or black, RAL 9005
- Available in UL / CSA approval
- Bending radius: fixed 12 mm | moved 24 mm
- Tinned copper conductor, fine wire
- Core colours: brown, blue
- Parallel cores
- Profiled outer sheath: PUR/TPE or EPDM, oil-resistant
- Sheath colour: yellow, RAL 1023 or black, RAL 9005
- Available in UL / CSA approval
- Bending radius: fixed 12 mm | moved 24 mm
Technical Data:
| Conductor Material | Copper, tinned |
| Conductor class | Class 5 |
| Core insulation | |
| Core identification | Colours: brown, blue (VDE 0293) |
| Stranding | |
| Outer sheath | PUR, TPE or EPDM |
| Sheath colour | Yellow (RAL 1023) or black (RAL 9005) |
| Rated voltage [V] | 300 |
| Testing voltage [V] | 2000 |
| Conductor resistance | max. 13,7 Ω x km |
| Insulation resistance | ≥ 1 MΩ x km |
| Current carrying capacity | |
| Min. bending radius fixed [xd] | 3 x d |
| Min. bending radius moved [xd] | 6 x d |
| Working temp fixed min/max [C] | -40°C up to +100°C |
| Working temp moved min/mac [C] | -30°C up to +80°C |
| Temp at conductor max. | +85°C |
| Burning behaviour | IEC 60332-1-2: flame-retardant and self-extinguishing |
| Approvals |
| PART NUMBER | CORES | OUTER DIAMETER | COPPER WEIGHT KG/100M |
WEIGHT KG/100M |
|---|---|---|---|---|
| 2070020150.00 | 2 x 1.50 schwarz/black | 0.00 | 2.90 | 6.00 |
| 2077020150 | 2 x 1.50 gelb/yellow | 0.00 | 2.90 | 6.00 |
| 2077020150GU | 2 x 1.50 Gummi GE | 0.00 | 2.90 | 5.70 |
| 2070020150GU | 2 x 1.50 Gummi SW | 0.00 | 2.90 | 5.70 |
| 2077020150.00 | 2 x 1.50 TPE GE | 0.00 | 2.90 | 5.70 |
| 2070020150 | 2 x 1.50 TPE SW | 0.00 | 2.90 | 5.70 |
| 2077020150P | 2 x 1.50 PUR GE | 0.00 | 2.00 | 5.70 |
| 2070020150P | 2 x 1.50 PUR SW | 0.00 | 2.00 | 5.70 |
| 2077020150UL | 2 x 1.50 UL GE | 0.00 | 2.90 | 5.70 |
| 2070020150UL | 2 x 1.50 UL SW | 0.00 | 2.90 | 5.70 |
| 2077020150H | 2 x 1.50 LSZH GE | 0.00 | 2.90 | 5.70 |
| 2070020150H | 2 x 1.50 LSZH SW | 0.00 | 2.90 | 5.70 |
