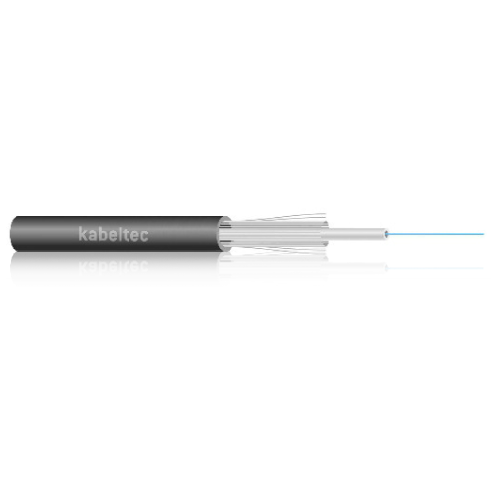

A-DQ(ZN)B2Y

A-DQ(ZN)B2Y
TOTAL PRICE

SGD 0.00

Fiber optical cable with central tube with non-metallic amour and rodent protection. Swelling elements within the strand ensure longitudinally water tightness of the cable. the rugged and abrasion-resistant PE-sheath enables easy installation in tubes and ducts. The sheath is halogen-free, but not flame retardant.

CONSTRUCTION:

  • UV-resistant
  • Filled loose tube
  • Metal free
  • Armour: glass yarns

Technical Data:

Conductor Material *
Conductor class *
Core insulation *
Core identification *
Stranding *
Outer sheath Polyethylene
Sheath colour Black
Rated voltage [V] *
Testing voltage [V] *
Conductor resistance * Insulation resistance: *
Current carrying capacity *
Min. bending radius fixed [xd] *
Min. bending radius moved [xd] *
Working temp fixed min/max [C] -20°C up to +70
Working temp moved min/mac [C] – 0°C up to +50
Temp at conductor max. *
Burning behaviour *
Approvals ISO/ IEC 794, DIN VDE 0888

PART NUMBER CORES OUTER DIAMETER COPPER WEIGHT
KG/100M		 WEIGHT
KG/100M
1 x 4 G50/125 Standard 1 x 4 G50/125 Standard 8.40 0.00 6.40
1 x 4 G62.5/125 Standard 1 x 4 G62.5/125 Standard 8.40 0.00 6.40
1 x 4 G50/125 High Grade 1 x 4 G50/125 High Grade 8.40 0.00 6.40
1 x 4 E9 standard 1 x 4 E9 standard 9.20 0.00 6.40
1 x 6 G50/125 Standard 1 x 6 G50/125 Standard 8.40 0.00 6.40
1 x 6 G62.5/125 Standard 1 x 6 G62.5/125 Standard 8.40 0.00 6.40
1 x 6 G50/125 High Grade 1 x 6 G50/125 High Grade 8.40 0.00 6.40
1 x 8 G50/125 Standard 1 x 8 G50/125 Standard 8.40 0.00 6.40
1 x 8 G62.5/125 Standard 1 x 8 G62.5/125 Standard 8.40 0.00 6.40
1 x 8 G50/125 High Grade 1 x 8 G50/125 High Grade 8.40 0.00 6.40
1 x 8 E9 standard 1 x 8 E9 standard 9.20 0.00 6.40
1 x 12 G50/125 Standard 1 x 12 G50/125 Standard 8.40 0.00 6.40
1 x 12 G62.5/125 Standard 1 x 12 G62.5/125 Standard 8.40 0.00 6.40
1 x 12 G50/125 High Grade 1 x 12 G50/125 High Grade 8.40 0.00 6.40
1 x 12 E9 standard 1 x 12 E9 standard 9.20 0.00 6.40
1 x 16 G50/125 Standard 1 x 16 G50/125 Standard 8.40 0.00 6.40
1 x 16 G62.5/125 Standard 1 x 16 G62.5/125 Standard 8.40 0.00 6.40
1 x 16 G50/125 High Grade 1 x 16 G50/125 High Grade 8.40 0.00 6.40
1 x 24 G50/125 Standard 1 x 24 G50/125 Standard 8.40 0.00 7.40
1 x 24 G62.5/125 Standard 1 x 24 G62.5/125 Standard 8.40 0.00 7.40
1 x 24 G50/125 High Grade 1 x 24 G50/125 High Grade 8.40 0.00 7.40
1 x 24 E9 standard 1 x 24 E9 standard 9.20 0.00 7.40
3 x 12 G50 standard 3 x 12 G50 standard 11.50 0.00 10.70
3 x 12 G62.5 standard 3 x 12 G62.5 standard 11.50 0.00 10.70
3 x 12 G50 High Grade 3 x 12 G50 High Grade 11.50 0.00 10.70
4 x 12 G50 standard 4 x 12 G50 standard 11.50 0.00 10.70
4 x 12 G62.5 standard 4 x 12 G62.5 standard 11.50 0.00 10.70
4 x 12 G50 High Grade 4 x 12 G50 High Grade 11.50 0.00 10.70
4 x 12 E9 standard 4 x 12 E9 standard 11.50 0.00 10.70
12 x 12 E9 standard 12 x 12 E9 standard 19.50 0.00 28.00
